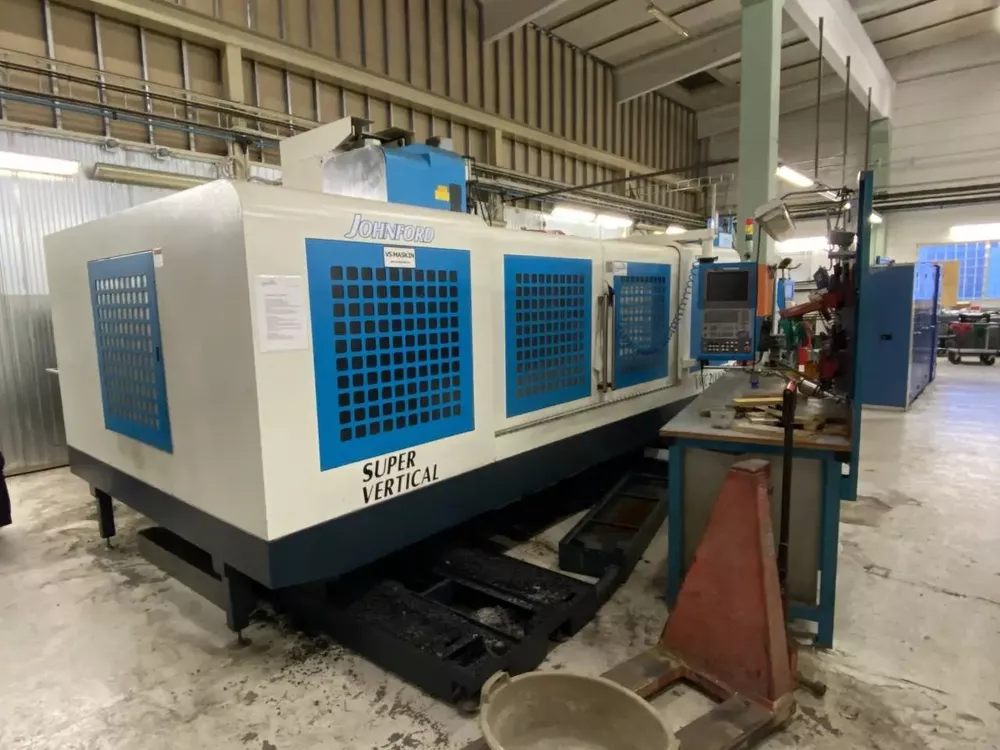

Johnford VMC-2000S 3 Axis

X-axis travel 2050 mm
Y-axis travel 1100 mm
Z-axis travel 800 mm
Control Heidenhain
Table size 2200 x 1000 mm
Spindle nose to table 150–950 mm
Spindle center to column 1150 mm
Spindle diameter 70 mm
Spindle speed 80–8000 rpm automatic Hi-Lo gear
Spindle motor 15 HP (30 min) / 10 HP (continuous)
Rapid traverse X/Y/Z 15/15/12 m/min
Spindle feed 1–8000 mm/min
Tool selection Bi-direction random type, shortest path
Tool taper BT40
Automatic tool changer 24
Maximum tool diameter 100 mm
Maximum tool length 320 mm
Maximum tool weight 10 kg
Table load capacity 4800 kg
Ball screw diameter X/Y/Z Ø63 / Ø63 / Ø50
Cutting capacity milling S45C 180 cm³/min
Drilling capacity Ø40 mm
Tapping capacity M30 x P3.5 mm
Machine weight 20000 kg
Floor space 5500 x 5330 mm
