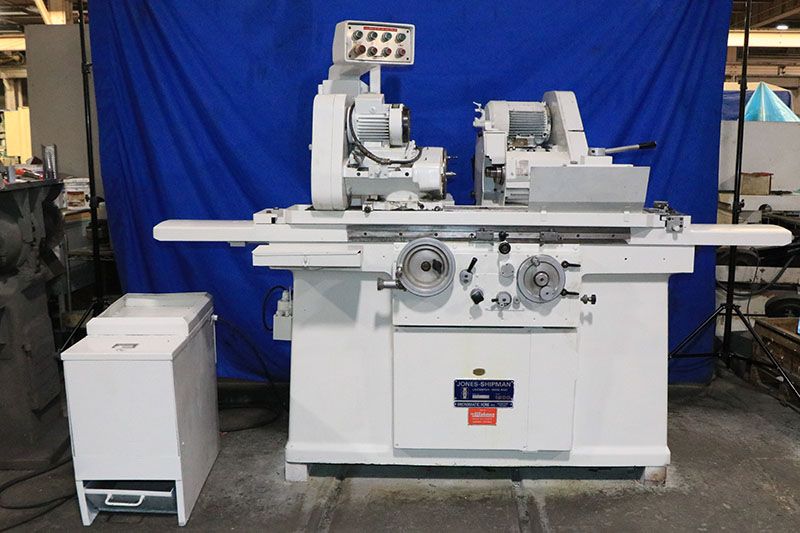

Jones & Shipman 1300-EIT

Maximum swing 10"
Distance between centers 27"
Adjustment of table, included angle 17°
Longitudinal table speed (hydraulic) 3" to 180" IPM
Manual traverse handwheel per rev. 0.50"
Fine hand traverse knob grad. 0.0005"
Cross feed handwheel grad. 0.0002"
One depression of fine feed lever knob 0.0001"
Auto infeed at table reversals 0.0001" to 0.0006"
Feed at reversal of table, reduction in diameter 0.0002" to 0.0012"
Top slide adjustment 4-1/8"
Cross traverse of wheelhead 7"
Wheelhead upper swivel adjustment each side of normal position 180°
Swiveling base adjustment clockwise 90°
Swiveling base adjustment counterclockwise 75°
Wheel size 12" x 1" x 5"
Wheel speeds 2,000 & 2,650 RPM
Wheelhead motor 5.5 HP
Workhead spindle speeds 40, 60, 90, 140, 210 & 320 RPM
Workhead spindle taper #3MT
Approximate floor space required 103" L x 58" W x 69" H
Approximate machine weight 5,376 lbs
Double swivel wheelhead design for steep taper grinding and combined parallel/face grinding
Power table traverse hydraulic operation
Auto infeed and auto plunge infeed
Fine feed mechanism for infeed
Fine feed knob for table traverse
Dual live/dead workhead spindle
Swing around I.D. grinding attachment
I.D. spindle with assortment of quilles
Center in workhead
Coolant tank with pump
Machine wired for 3/60/575 volts with optional transformer available
