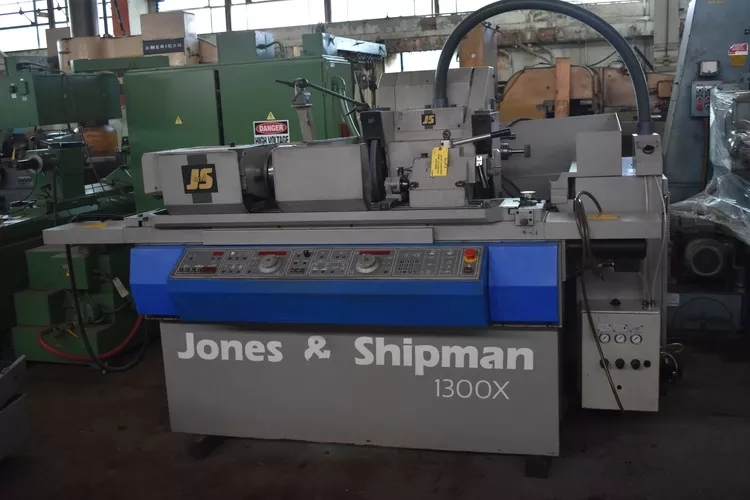

Jones & Shipman 1300X

Swing over table: 10 in
Maximum grinding diameter: 10 in
Distance between centers: 27 in
Weight capacity between centers: 220 lb
Grinding wheel diameter LH: 14 in
Grinding wheel diameter RH: 12 in
Grinding wheel width LH: 2 in
Grinding wheel width RH: 1 in
Grinding wheel hole diameter: 5 in
Grinding wheel speed range: 1775–2400 rpm
Wheelhead total infeed: 9.6 in
Wheel spindle motor power: 5.5 hp
Internal grinding diameter range: 0.75–1.5 in
Internal grinding spindle speed: 16500 rpm
Internal grinding motor power: 3 hp
Table swivel clockwise: 16°
Table swivel counterclockwise: 18°
Workhead swivel clockwise: 15°
Workhead swivel counterclockwise: 90°
Table longitudinal feed range: 3–198.6 ipm
Machine weight: approx. 5300 lb

Features / options / equipment
Universal cylindrical grinder
Double-swivel table
Microprocessor operator control
Touch key membrane control panel
Dual external grinding wheels
Swing-around internal grinding spindle
Electromagnetic chuck 9 in
Gauging system
Wheel dresser
Automatic lubrication system
Coolant filtration system
Tailstock with wheel dresser
