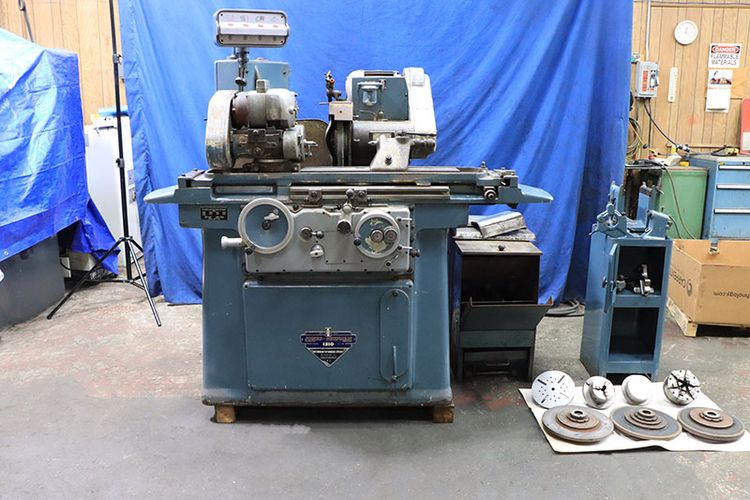

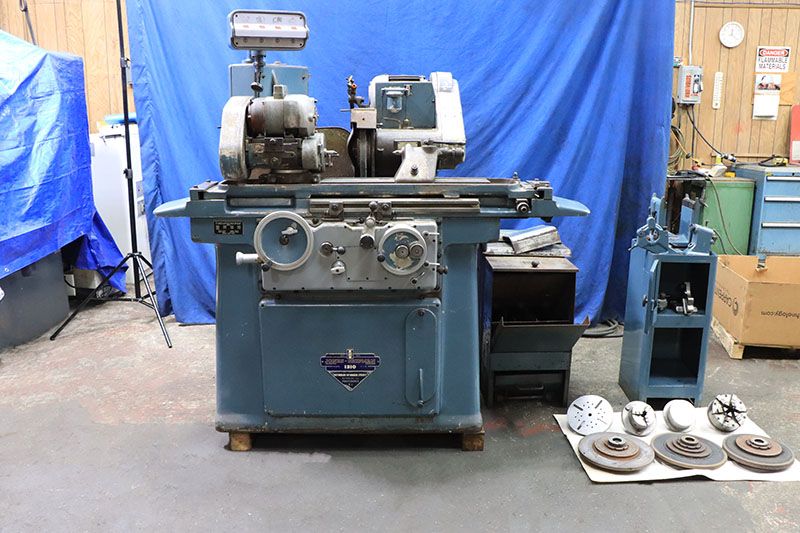

Jones & Shipman 1310

Maximum Swing: 8 in
Distance Between Centers: 18 in
Hydraulic Longitudinal Table Speed: 3 – 144 ipm
Manual Traverse per Revolution: 0.50 in
Fine Hand Traverse Graduation: 0.0005 in
Fine Hand Traverse per Revolution: 0.01 in
Table Swivel Clockwise: 19 degrees
Table Swivel Counterclockwise: 20 degrees
Cross Feed Handwheel Graduation: 0.0002 in
Fine Feed Lever Increment: 0.0001 in
Automatic Infeed at Table Reversal: 0.0001 – 0.0006 in
Feed at Table Reversal Diameter Reduction: 0.0002 – 0.0012 in
Continuous Plunge Infeed Rate: 0.0001 – 0.0006 in
Continuous Plunge Diameter Reduction: 0.004 – 0.072 ipm
Maximum Plunge Infeed Range: 0.8 Revolution
Wheelhead Slide Adjustment: 7 in
Wheelhead Swivel: 360 degrees
Wheel Size: 12 x 1 x 5 in
Wheel Speeds: 2000 / 2650 rpm
Wheelhead Motor: 2 hp
Workhead Spindle Speeds: 36 – 500 rpm
Workhead Spindle Taper: MT3
Swing Around Internal Grinding Attachment
Internal Grinding Spindle
Coolant System
Grinding Wheel and Hub
3 Extra Grinding Wheels with Hubs
3 Jaw Chuck on Face Plate with Adaptor
Magnetic Chuck on Back Plate with Adaptor
Face Plate with Adaptor
6 Jaw Chuck with Adaptor
3 Point Steady Rest
2 Point Rest Support
Center in Workhead
Table Mounted Dresser
Wheel Balancing Stand
Factory Cabinet
Hydraulic Power Table Traverse
Automatic Wheel Infeed at Table Reversals
Continuous Plunge Infeed
Fine Feed Mechanism for Wheelhead Infeed
Fine Feed Knob for Table Traverse
Dual Live and Dead Workhead Spindle
Electrical: 3 Phase / 60 Hz / 220V
Machine Dimensions: 66 x 48 in
Floor Space Required: 80 x 54 in
Machine Weight: 4000 lb
