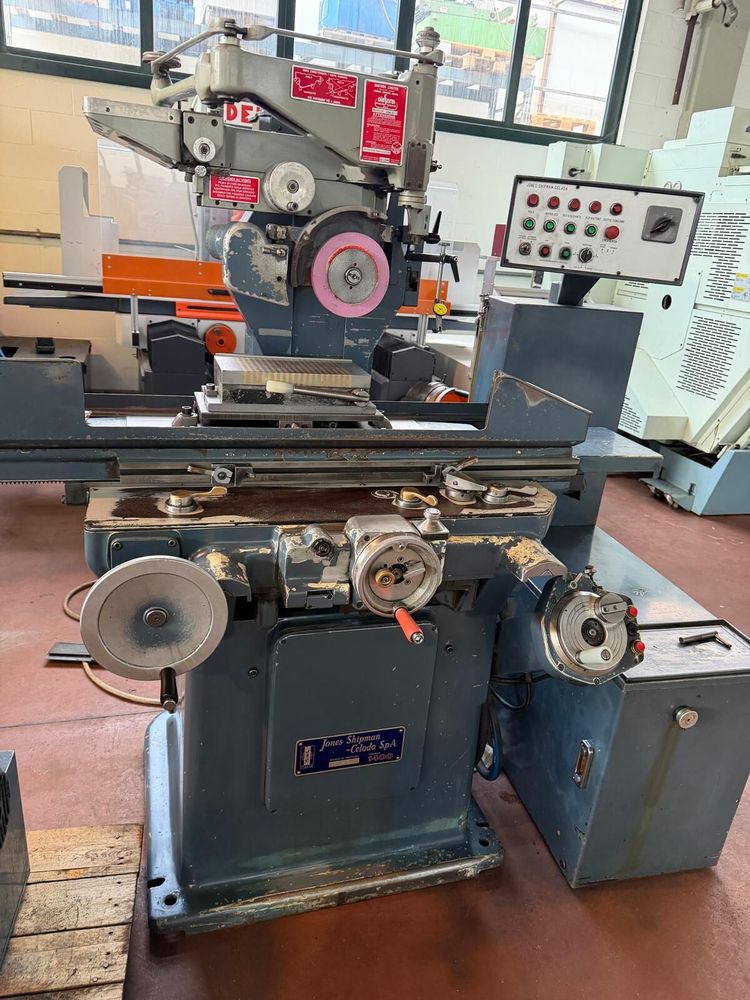

Jones & Shipman 1400 AR

Longitudinal travel (X-axis): 635 mm
Cross travel (Y-axis): 203 mm
Vertical travel (Z-axis): 279 mm
Spindle nose to table distance: 83 - 360 mm
Table size: 610 x 178 mm
Cross speed: 3 - 21
Automatic vertical feed: 0.001 - 0.006 mm/min
Cross feed: 0.178 - 1.78 mm/min
Spindle power: 1.5 kW
Spindle speed: 2570 rpm
Wheel thickness: 20 mm
Maximum wheel diameter: 200 mm
Wheel bore diameter: 31.75 mm
Total power supply: 3 hp
Digital readout
Filtration unit
Diaform
Machine dimensions: 2350 x 1050 x 1650 mm
Weight: 1633 kg
