Jones & Shipman 524 Easy

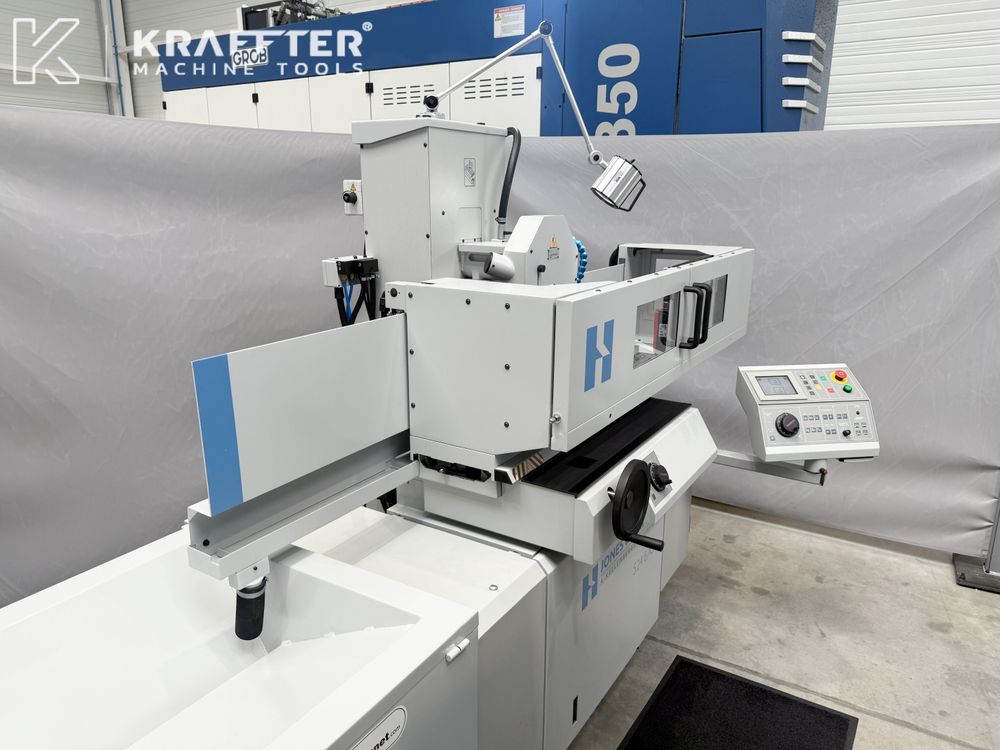

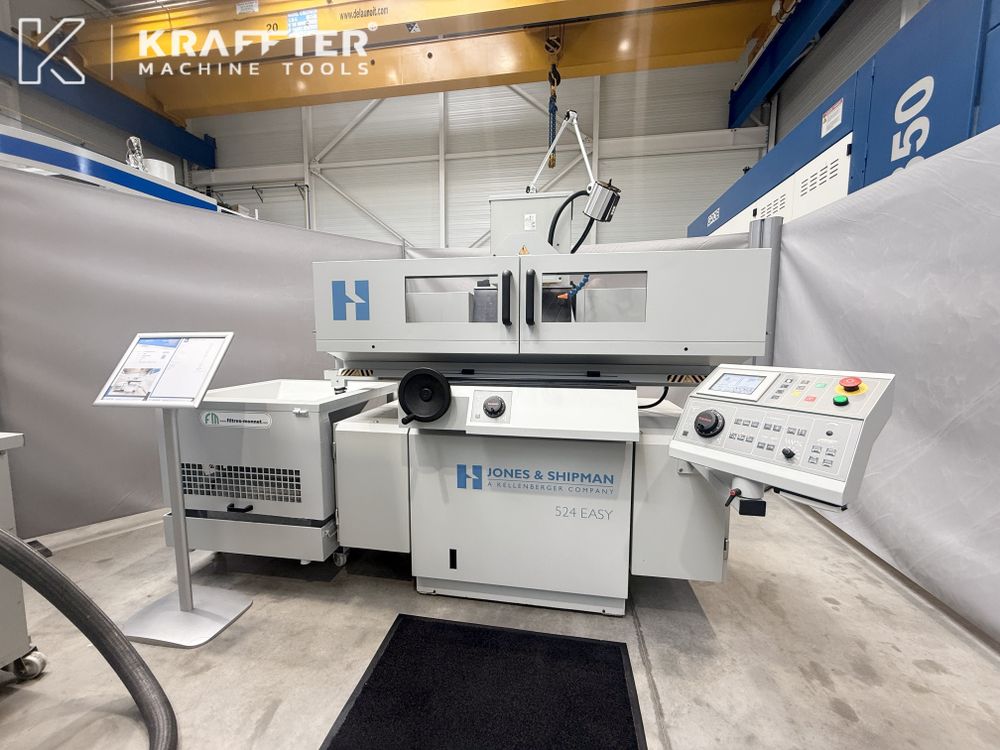

CNC Surface grinder JONES & SHIPMAN 524 Easy



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2017

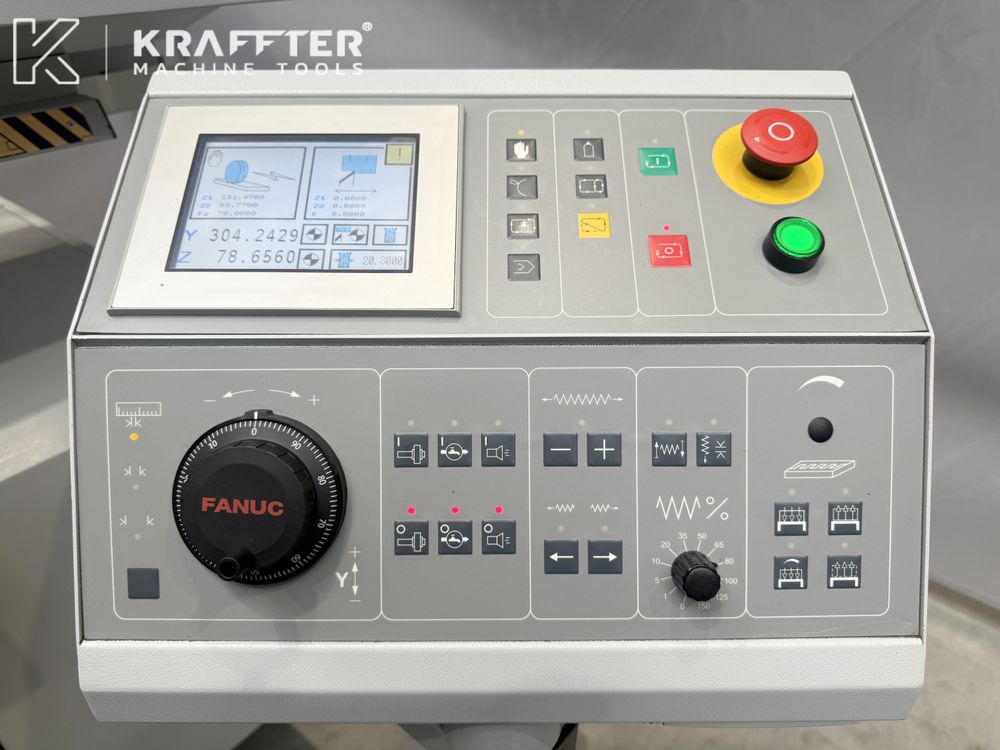

CNC control: FANUC Power Mate
Stroke X axis (table movement): 610 [mm]
Min. Stroke speed X axis: 2000 [mm/min]
Max. Stroke speed X axis: 25000 [mm/min]
Rapid traverse rate Y axis : 3000 [mm/min]
Z axis travel (transverse movement): 192 [mm]
Min. Stroke speed Z axis: 1 [mm/min]
Max. Stroke speed Z axis: 3000 [mm/min]
Rapid traverse rate Z axis: 3000 [mm/min]
Table length: 500 [mm]
Table width: 200 [mm]
Max. distance spindle nose / table: 507 [mm]
Max. load on table: 160 [Kg]
Grinding wheel speed: 2400 [rpm]
Grinding spindle motor power: 4 [kW]
Max. diameter grinding wheel: 254 [mm]
Max. grinding wheel width: 32 [mm]
Grinding wheel bore: 76.2 [mm]

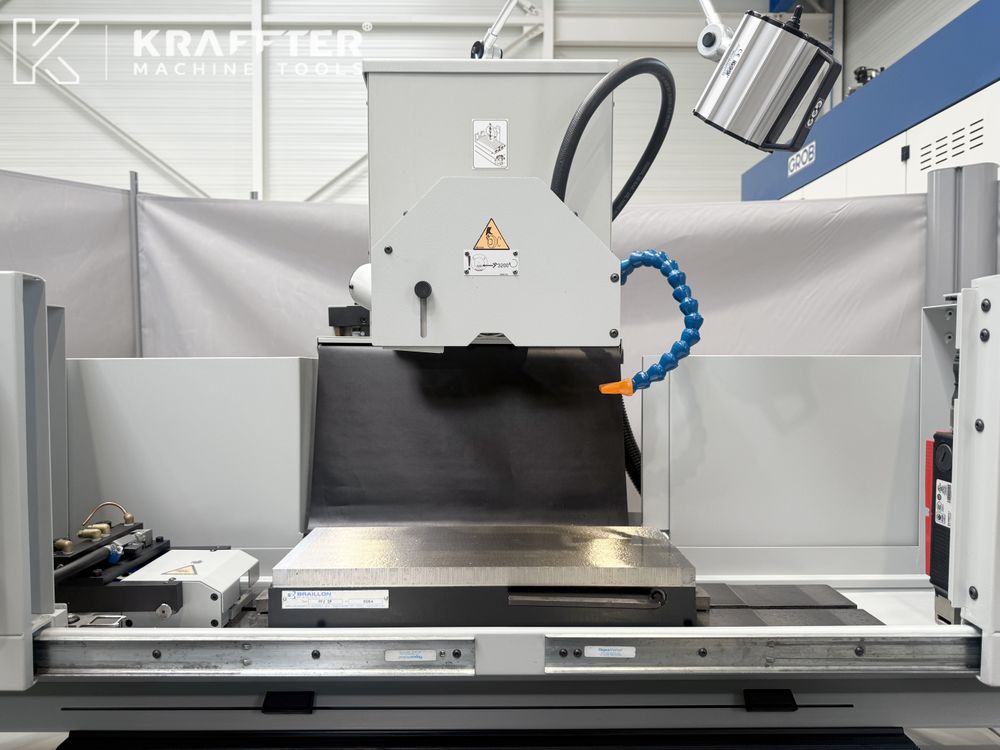

Dimensions of magnetic plate: 500 x 200 [mm]
Lubrication tank with pump: Yes
Centralized lubrication: Automatic
Supply voltage: 400 [V]
Dimensions: 1900 x 1300 x 2000 [mm]
Weight: 1370 [Kg]


INCLUDED EQUIPMENT:

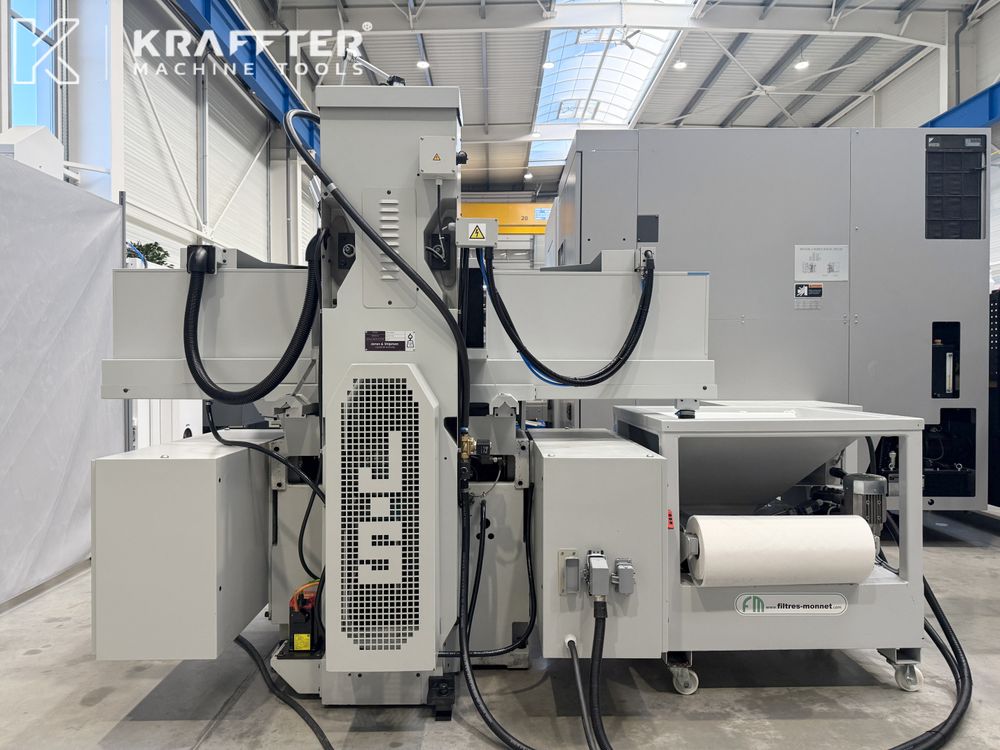

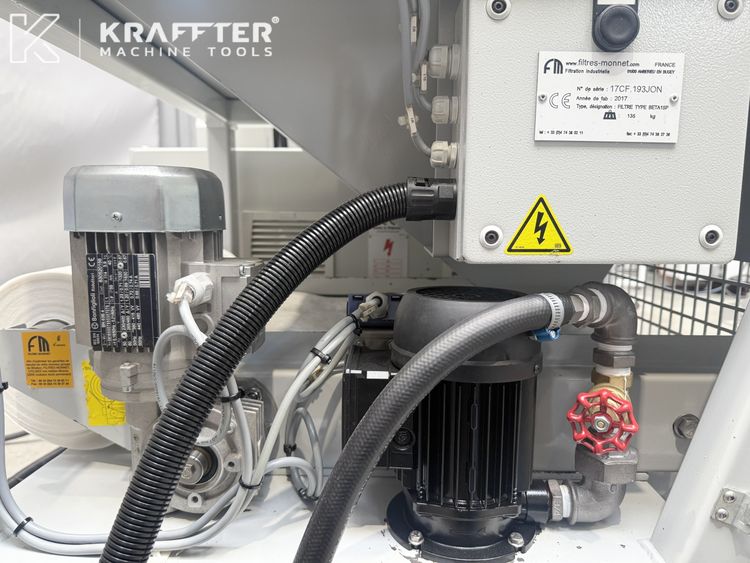

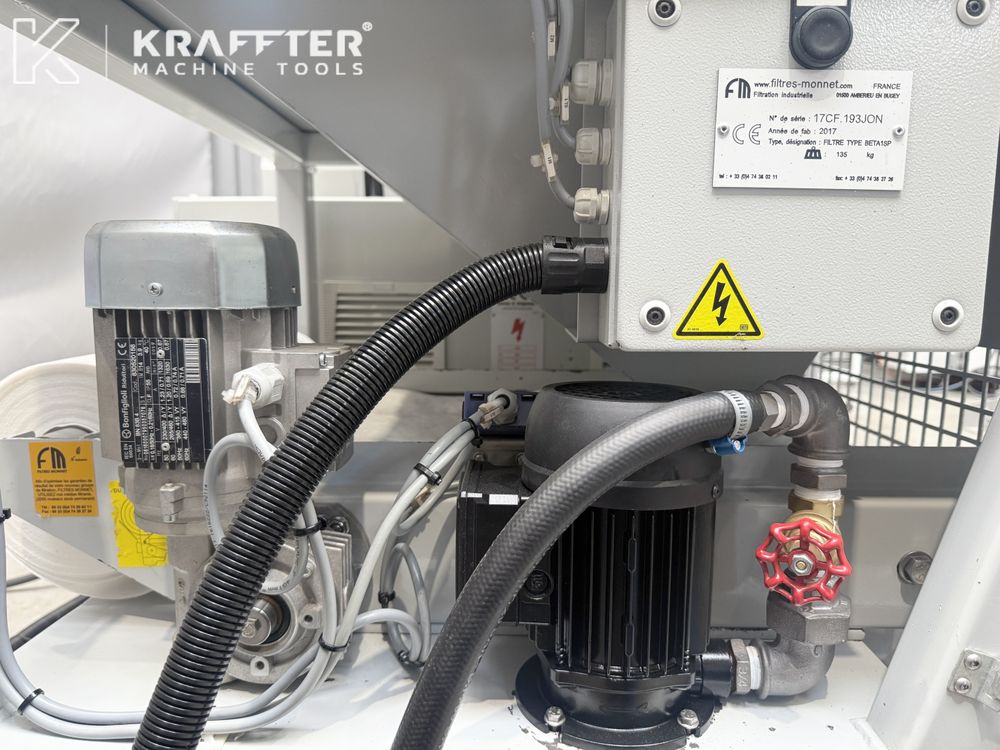

x1 FILTRES MONNET paper filtration unit, type BETA1SP
x1 set of HEIDENHAIN linear glass scales on Z and Y axes

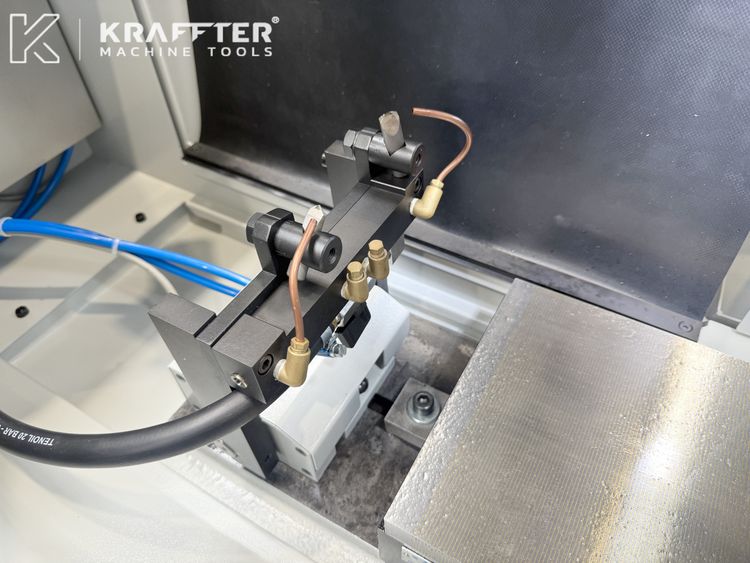

x1 automatic diamond dresser holder – 3 diamond positions
x1 LED lamp
x1 USB data transfer port

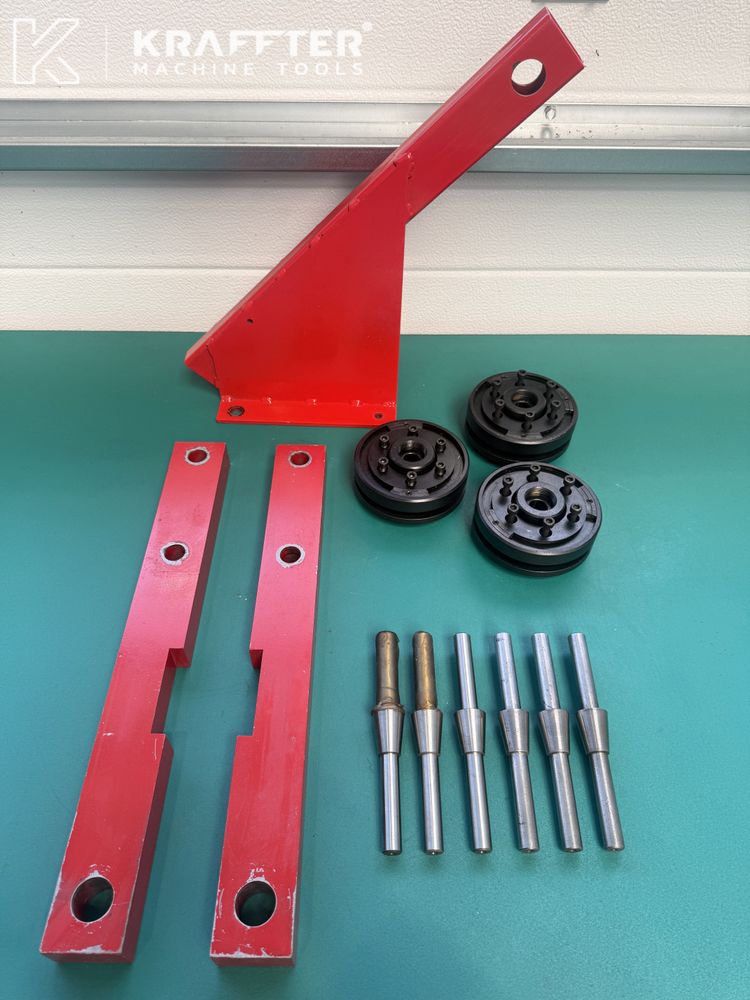

x1 set of clamping brackets for machine transport
x1 installation and operation manual



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
