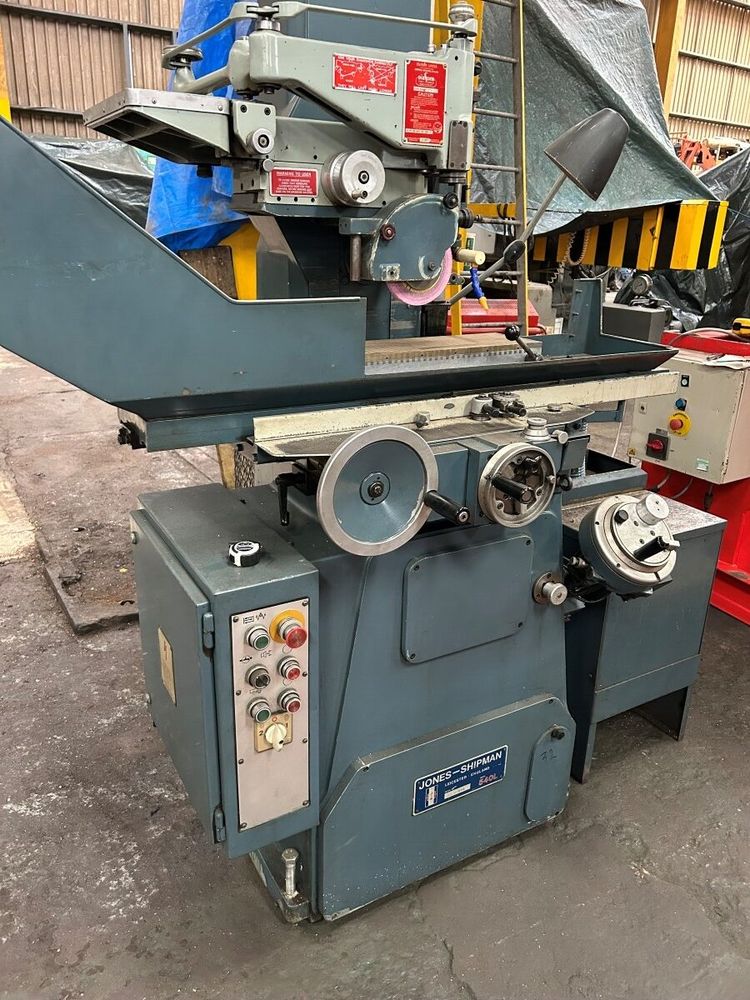

Jones & Shipman 540LP Horizontal Spindle Surface Grinder

Table size: 660 x 152 mm
Magnetic chuck size: 460 x 150 mm
Long traverse: 483 mm
Cross traverse: 168 mm
Vertical traverse: 300 mm
Table traverse speed: 1.54 – 12.2 m/min
Cross feed per reversal stroke: 0.254 – 1.778 mm
Wheel speed: 1420 / 2840 RPM
Wheel dimensions: 200 x 20 x 50 mm
Motor: 1 / 1.42 kW
Electrics: 380/420V, 3ph, 50 Hz
Approximate dimensions: 1600 x 1200 x 1800 mm
Approximate weight: 1200 kg

Power rise & fall
Coolant
Diaform wheel dresser
Lovo light
