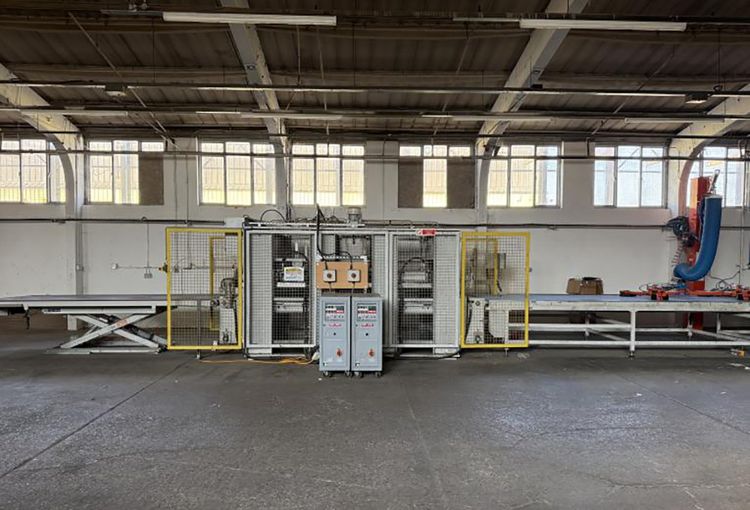

Joos DLP200/OK

Through-feed presses
CE certificate present No
Main motor power [kW] 7.5
Press drive Hydraulic
Max. workpiece length [mm] 3800
Max. workpiece width [mm] 1600
Max. workpiece height [mm] 200
Total stroke [mm] 200
Number of stages [pcs] 1
Material of press plates Aluminium
Number of cylinders [pcs] 8
Cylinder diameter [mm] 90
Total working pressure [ton] 200
Working pressure [kg/cm²] 3
Heating boiler present Yes
Heating type Water heated
Max. working temperature [°C] 130
Voltage [V] 400
Current consumption [A] 26.5
Fuse [A] 32
Power [kW] 11.9
Transport dimensions 4200mm x 2200mm x 2500mm (l x w x h)
Transport weight [kg] 15500kg
Transport packages [pcs.] 3
