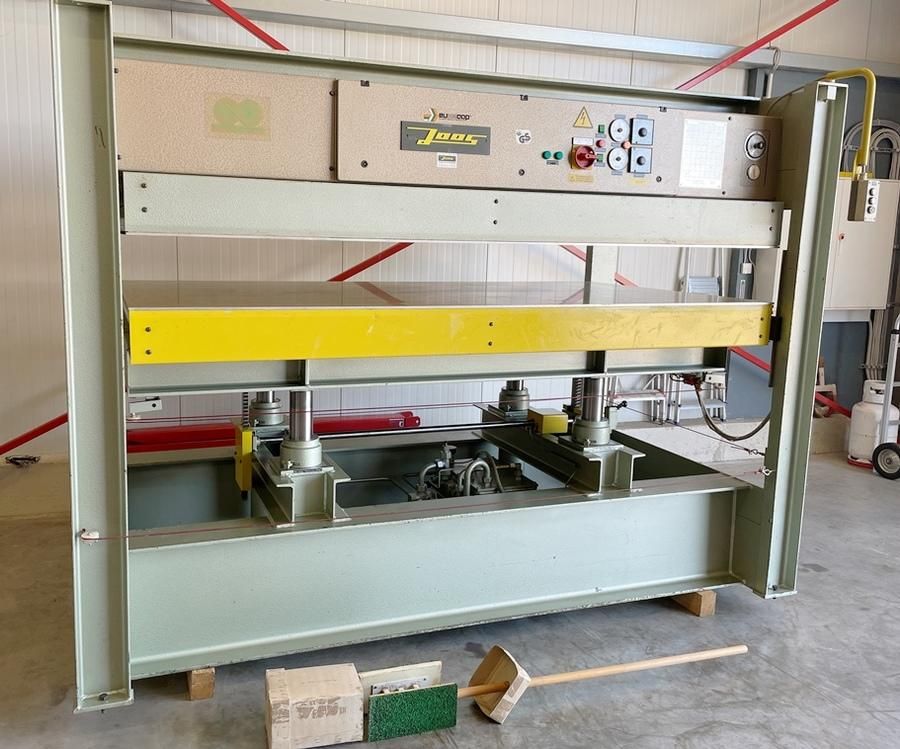

Joos HP 90

Electro-hydraulic veneer press
Press area 2550 x 1350 LW
Gold anodized heating plates, electrically heated
Total pressing pressure 90 tons
Opening width 400 mm
4 press cylinders each 90 mm diameter
Specific pressing pressure with full load 2.75 kg/cm2
Specific pressing pressure with 2 m2 load 4.58 kg/cm2
Operating pressure 355 bar
Thickness of the heating plates approx. 51 mm
Connected load per plate 9.1 kW
Operation with rotary switch
Push-button control for opening / closing / stop
2 safety ripcords (all-round)
Automatic activation (overrun) of the press cylinders when pressure is released

The “Goldeloxal-Decor D.B.G.M.” system makes the surface of the valuable heating plates extremely hard.
This results in no scoring, reduced consumption of release agents, shorter working time, no film wear and higher quality veneer work.
At the heart of the hydraulic quality press is the hydraulic unit, securely installed in the center of the lower part of the press.
This design prevents damage to the motor, pump and other units.
The motor, valves and two-stage high-pressure pump are maintenance-free at Joos.
With the dynamic piston bearing, the pistons are not bolted to the pressure table but instead rest dynamically on a planed support surface under the pressure table.
The table is prevented from tilting and moving by a column guide.
A precision rack and pinion parallel guide ensures the synchronization of the printing table.
Transport dimensions approx. 2950 x 1560 x 2160 mm LWH
Weight approx. 3600 kg
