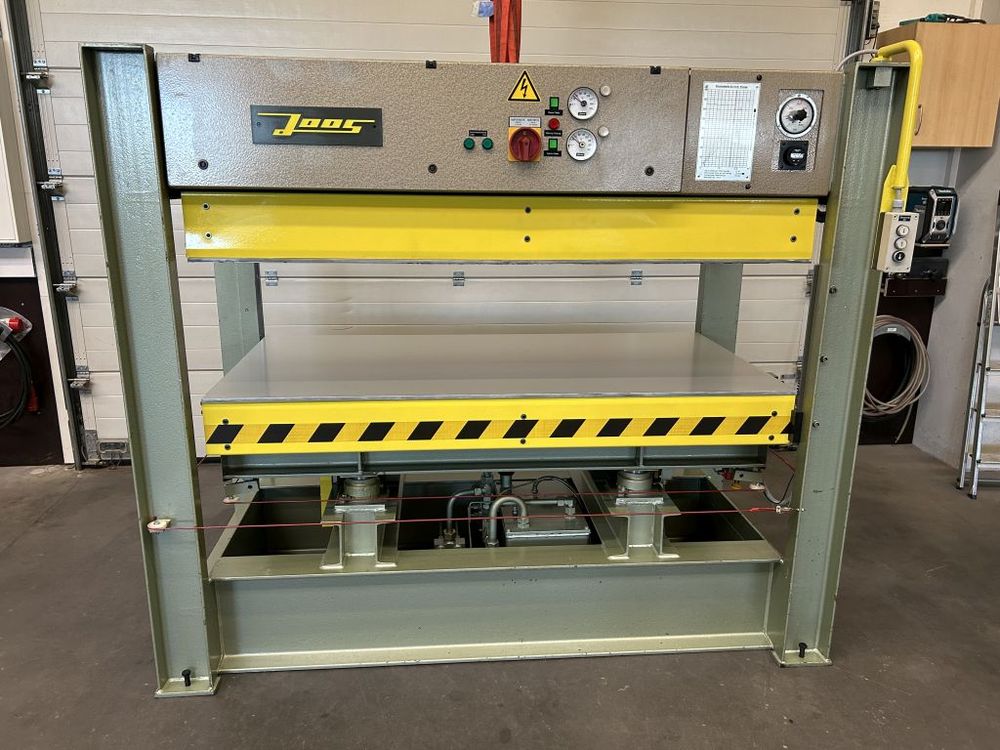

Joos HP45

Veneer Press – School Press – Test Press
Pressing area: 180 x 90 cm
New cover plates (anodized aluminum)
Opening width: 39 cm
4 hydraulic cylinders, each 65 mm in diameter
Operating pressure: 325 bar
Pressure: 450 kN
Specific pressure: 2.7 daN/cm²
Total connected load: 10.7 kW (rated current: 28.22 A)
Power per heating plate: 4,700 W
Circumferential safety step inside and outside (emergency stop)
Pivoting control panel
All 4 hydraulic cylinders have been resealed (new seal kit)
External dimensions: approx. 220 x 110 x 191 cm (LxWxH)
Weight: approx. 1,980 kg
