Josef Blazek ABM-5EN40, Line for packaging loose products into stick sachets

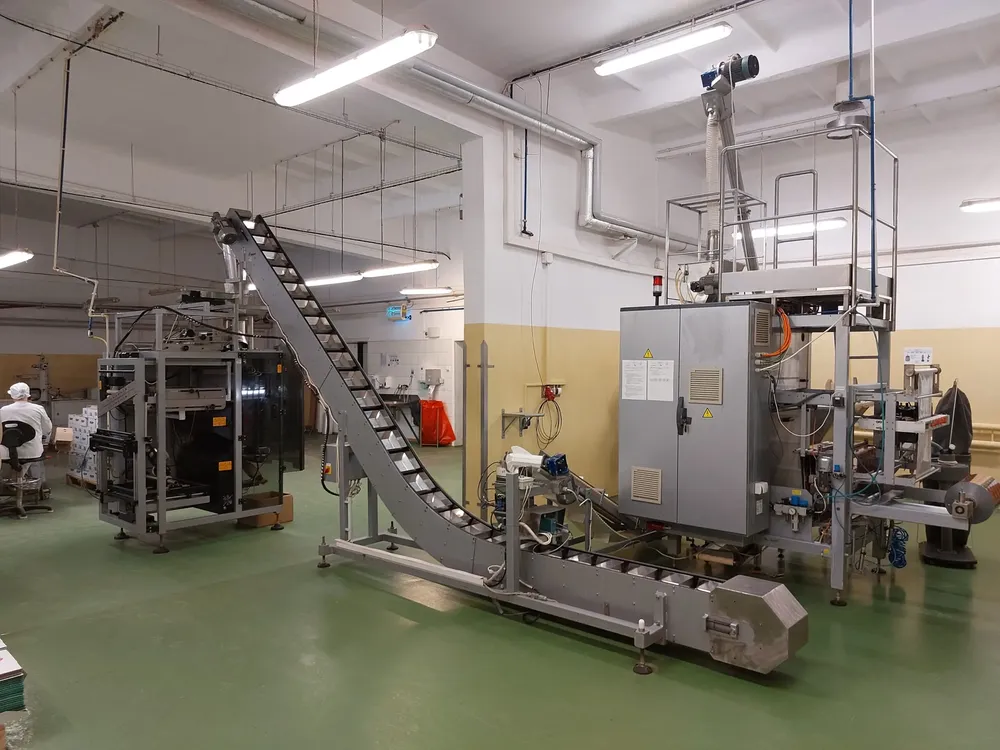

Line for packaging loose products into stick sachets with a feeder, conveyor and vertical bulk packing machine.

The line includes:
Josef Blazek ABM-5EN40 multi-lane vertical sleeve packer for packaging bulk products into 40 mm wide stick sachets. Year of construction 2005.
Package dimensions: sachet width: 40 mm, sachet length: adjustable 50-180 mm.
Packaged product: 3 in 1.
Dosage - volume dispenser: 12-20 g / 1 portion
Number of packing positions and working cycle: 5
Cycles per minute: 60 cycles/minute
Efficiency (number of sachets): up to 150 packages/minute
Width of packaging film: 460 mm
Sleeve pouches have one vertical and two horizontal seals.
Type of packaging material: commonly used heat-sealable materials.

Machine equipment:
– a set of foil cutting knives
- set of tubes
– set of vertical jaws
– set of horizontal jaws with a knife
- piece counter
- photocell
– centering the foil in the frame
- Siemens control system
– jaw for welding/cutting
- bypass for bags without product
– printer (printing date/batch number in 2 rows
– ODU L offset conveyor
– AHS horizontal screw feeder
– 5 position servo feeder, servo motor for each screw, control system, pre-hopper

Conveyor belt manufactured by AppecAstro model ODU1Z.
Libra.
Vertical bulk packaging machine manufactured by AppecAstro, model BSV 02 BS. Year of manufacture 2005.
Tube dimensions: 20 – 219 mm.
