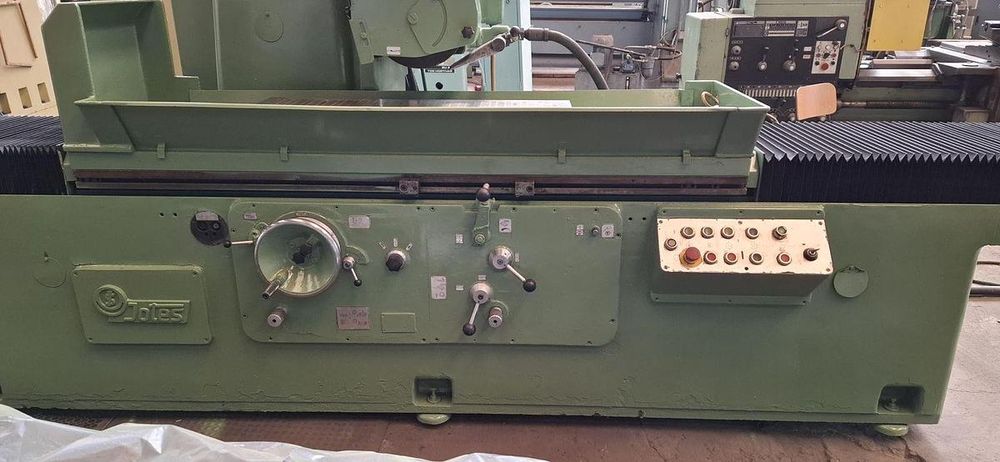

Jotes SPD 30B x 1000
Ref :
2804213-3-AW
Condition :
Used
Manufacturer :
Jotes
Model :
SPD 30B x 1000
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Grinding Length: 1000 mm
Grinding Width: 300 mm
Table Size: 300 x 1000 mm
Maximum Spindle Axis Height Above Table: 575 mm
Minimum Spindle Axis Height Above Table: 125 mm
Maximum Horizontal Wheel Travel: 370 mm
Maximum Vertical Wheel Travel: 450 mm
Minimum Table Stroke: 200 mm
Table Speed: 2 - 30 m/min
Wheel Feed Speed: 0.5 - 4.5 m/min
Step Wheel Feed per Table Stroke: 3 - 30 mm
Manual Wheel Feed: 0.05 mm per division
Manual Wheel Feed: 8 mm per handwheel revolution
Vertical Rapid Feed Speed: 0.6 m/min
Grinding Wheel Diameter: 350 mm
Grinding Wheel Width: 63 mm
Grinding Wheel Peripheral Speed: 26 m/s
Total Power Requirement: 12 kW
Dimensions: 4000 x 2080 x 2260 mm
Weight: 5000 kg
