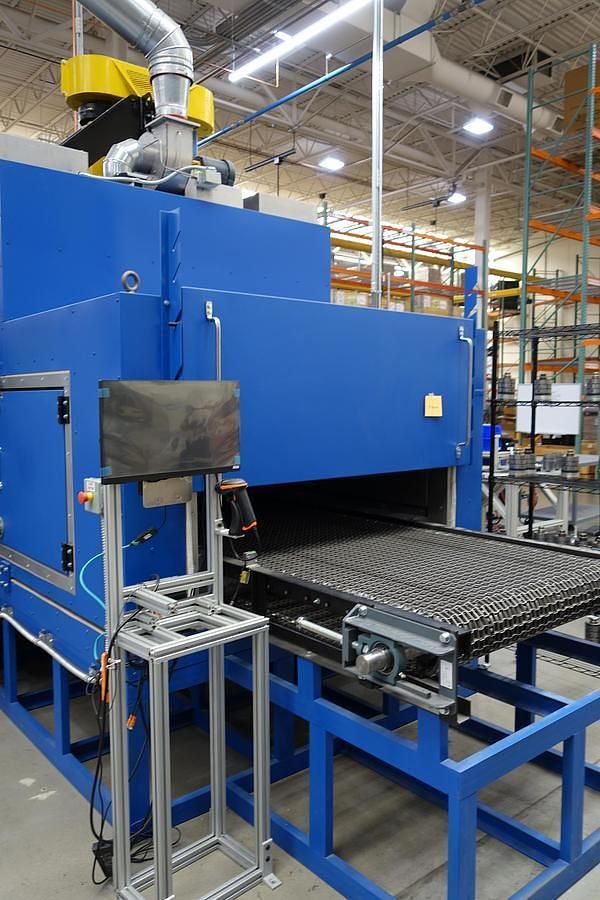

JPW Industrial Oven C98TULEP480V45KW Maximum operating temperature 150°C

Insulated walls, ceiling, and floor 4.5 in thick
Exterior CRS painted gray
Interior aluminized
Conveyor width 42 in
Conveyor type heavy duty flatwire
Conveyor support steel bed
Conveyor load capacity 1,000 lb
Conveyor speed range 1.25–4.0 in/min
Product sensor on outlet to stop conveyor
Adjustable crank doors inlet and outlet, max open height 21 in
Skid frame support raises belt to 36 in from floor
Heated zone operating 70–100°C ±3°C
Heated zone power 45 kW
Control Allen Bradley PLC with HMI
Watlow PM high limit
UL control panel 480V/3/60 NEMA 12
Load conveyor length 36 in
Unload conveyor length 36 in
Heated zone dimensions 168 in L x 42 in W x 24 in H
Recirculation fan 1 @ 23,000 CFM with VFD at 18,000 CFM
Forced exhaust 600 CFM with VFD
Vertical down airflow
Fused rotary disconnect
Emergency stops at each end of conveyor
Access doors on right-hand side, doubles as explosion relief
Effective work area 3 ft 6 in W x 2 ft H x 14 ft L
Overall dimensions 8 ft 9 in W x 11 ft H x 20 ft 4 in L
