JSW 3 layers BOPP / BOPET extrusion machine
EUROPE (Western and Northern)
Number of layers 3
Film structure ABC
Material BOPP
Output max out put 6000 kg/h, Max Speed - 500m/min Max. Operation speed 420m/min
Width (mm) 8320
Extruder 1 Description A - single screw, screw diameter 115mm, output 300 kg/h, AC motor 132 kW

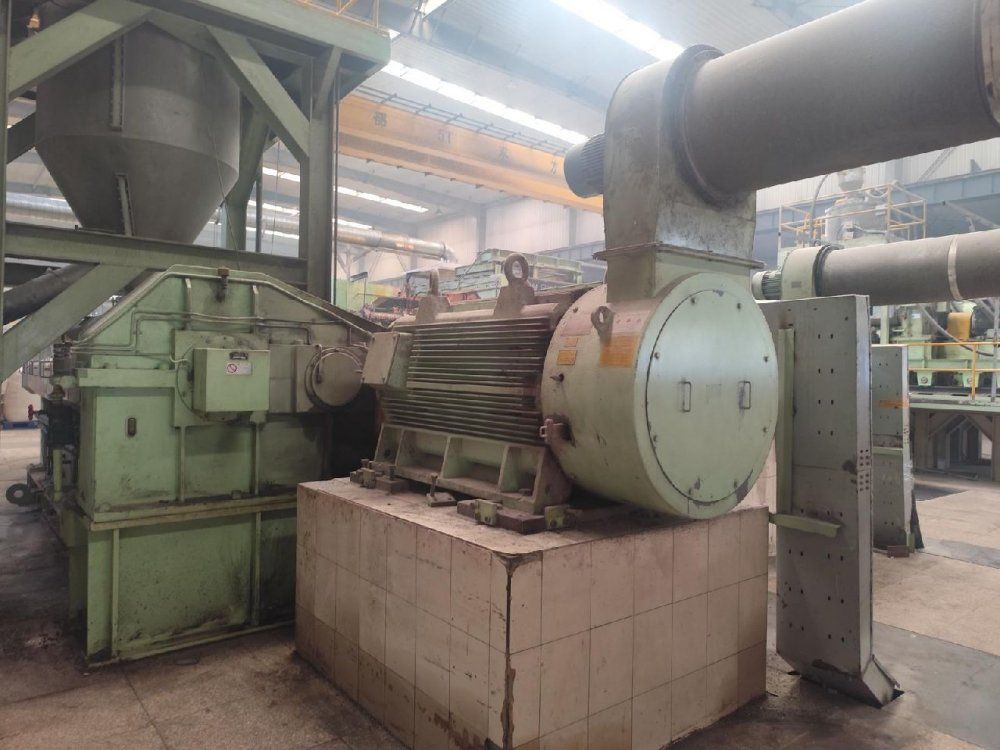

Extruder 2 Description B Cascade extruder: extruder 1: single screw, cascade, screw diameter 300mm,
output 6000 kg/h, AC motor 1200 kW Extruder 2: single screw, cascade, screw diameter 200mm, output 6000 kg/h, AC motor 600kW
Extruder 3 Description C- single screw, screw diameter 145mm, output 500 kg/h, AC motor 250 kW
Head description make EDI. 1 spare extrusion die available. Automatic thickness profile control via flex lip and thermal bolts
Die width 1200mm
Thickness controll system Automatic thickness profile control, 47 thermal bolts 1 × NDC PRS film thickness gauge (infrared);
1 × Scantech cast-sheet thickness gauge (X-ray)
MDO description 20 Pre-heating rollers, diameter 600mm, 4 stretching rollers, 6 annealing rollers,
thermal oil heating, mechanical transmission shaft
TDO description Pre-heating sections length - 27235 Stretching sections length- 15000
Annealing sections length - 24000 Gas and thermal oil heating Input width - min.940mm, max.1000mm
Output width - min.8200mm, max. 8600mm
Corona treatment 4 corona treatments - 2 top, 2 bottom
Rewinder description Turret type. 80 cores available
Slitter Included
Note Atlas slitter included 1 Inline edge trim 1 Inline Grinder Water Chiller Oil heater Control system - Mitsubishi Q-series
Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines.
In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller.
Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction
in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties,
particularly the mechanical, impact, barrier and optical properties.
