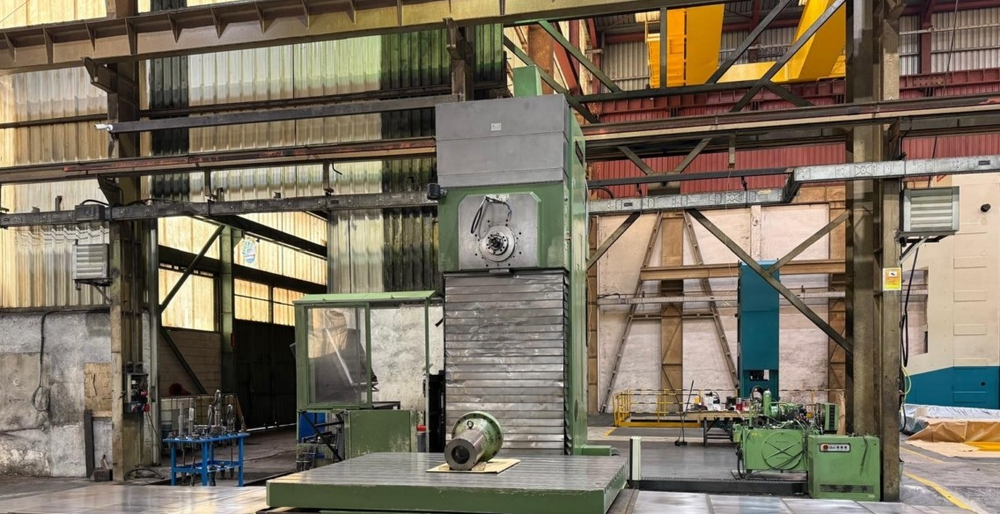

Juaristi TS-5 MG 20 5 AXES 2000 rpm
Ref :
2762659-3-MT
Condition :
Used
Manufacturer :
Juaristi
Model :
TS-5 MG 20 5 AXES
Spindle Speed :
2000 rpm
Year(s) :
1996
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X travel: 5000 mm
Y travel: 2500 mm
Z axis: 800 mm
W axis: 2000 mm
Rapid traverse: 10000 mm
B axis table: 0.001°
Table size: 2000 x 2500 mm
Table weight: 20000 kg
Control: CNC
Internal coolant system feed included
Handwheel HEIDENHAIN HR-410
Turning speeds: 0–2000 rpm
Spindle drive motor: 37 kW
Torque: 12–183
Taper ISO 50
Total power requirement: 74 kW
Weight of the machine: 35 t
