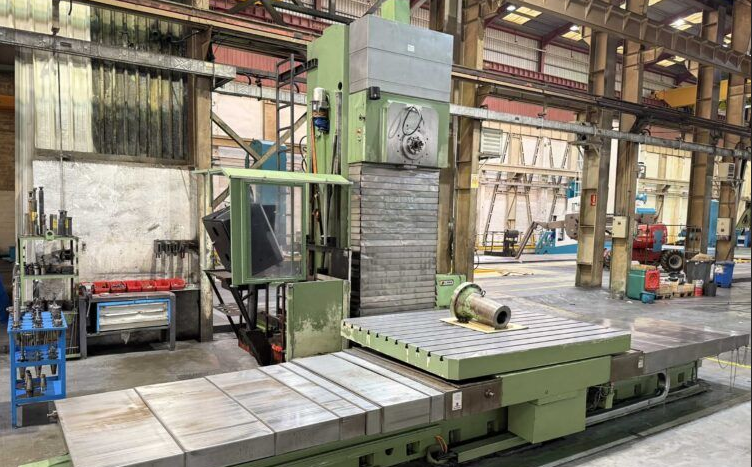

Juaristi TS-5 MG 20 Quill diameter 150 mm 2000 rpm
Ref :
2763086-3-GO
Condition :
Used
Manufacturer :
Juaristi
Model :
TS-5 MG 20
Spindle Size :
Quill diameter 150 mm
Spindle Speed :
2000 rpm
Year(s) :
1996
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel 5000 mm
W-axis travel 2000 mm
Y-axis vertical travel 2500 mm
Z-axis axial travel 800 mm
Controlled axes X, Y, Z, W, B
Table surface 2000 × 2500 mm
Max table load 20000 kg
Table rotation B-axis continuous 0.001°
Rapid feed 10000 mm/min
Quill diameter 150 mm
Taper ISO 50
Speed range 2 ranges
Turning speed 0–2000 rpm
Low range 12–732 rpm
High range 733–2000 rpm
Turning speed at constant torque 12–183 rpm
Turning speed at constant power 183–2000 rpm
Spindle power 37 kW
Total power 74 kVA
Machine weight 35000 kg
Machine equipped with
Heidenhain TNC-430 CA control
Universal 45° manual head included
Direct exit head included
External coolant included
Portable handwheel Heidenhain HR-410
Tools and accessories included
