Juki KE-1080L w/TR6S

Complete Line: Juki KE1080L w/TR6S, DEK 03i,
Heller 1809, with Feeders and Conveyors

This complete SMTA line is on consignment and immediately available.

DEK Horizon 03i Inline screen printer
Bottom side support : Gridlock w/ 3 banks
Basic 2D inspection
Green Camera
Blue under screen cleaner with solvent
520mm foils
Instinctive Windows xp based sw

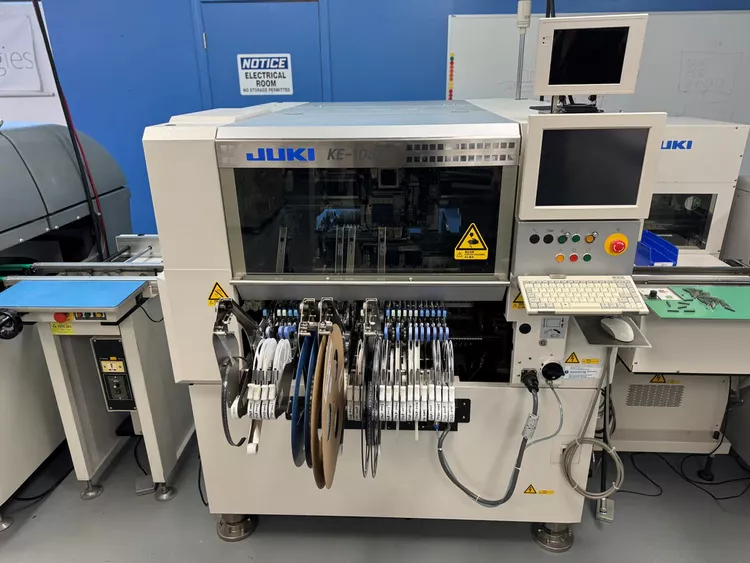

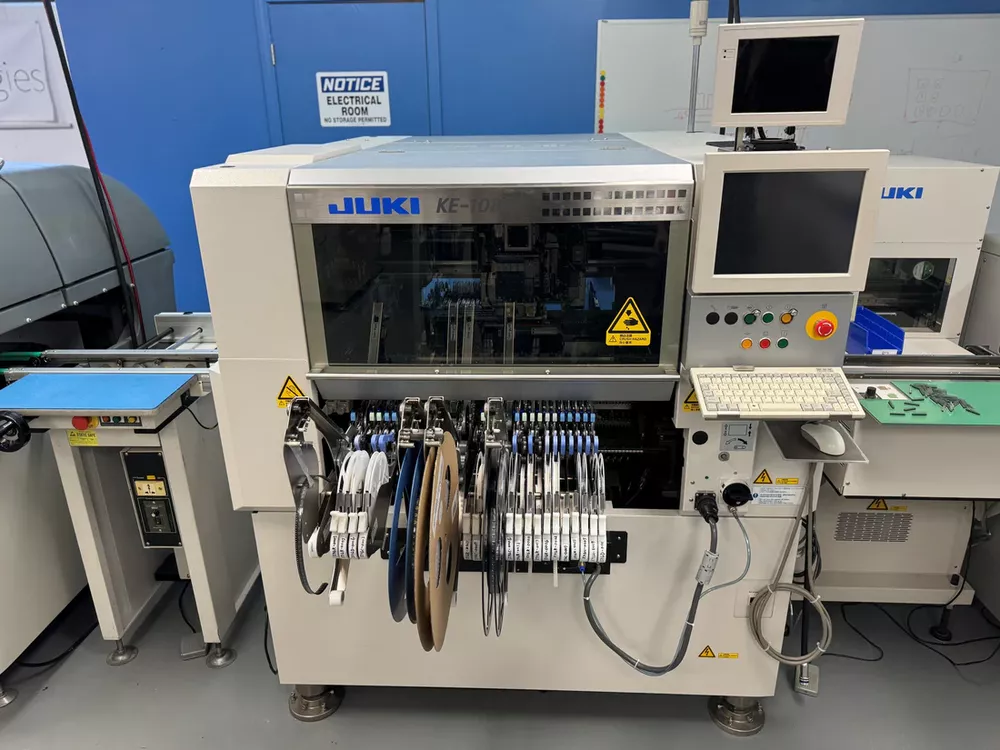

JUKI KE-1080L Pick and Place - Low hours
Vintage : 2011
Max component height - 20MM
Fine Pitch Pick and Place - 01005 to 74x74mm
Side mount single magazine TR6 Tray feeder
Fixed feeder bank front and rear
HMS sensor
High resolution ULC camera for Micro BGA

Included with 1080L: Juki TR6SN (Side Matrix Tray Changer)

Feeder package consisting of 100 feeders -
comprehensive list available on request

Heller Industries 1809EXL Reflow Oven
YOM: 2005 with: 9 Zone Heating / 2 cooling zones
Left to right, front rail fixed
Combo Conveyor - Edge/Mesh belt
Machine was upgraded to the new HC2 Controller
(4800$) and Windows 7 operating system

Handling equipment:
- Conveyors; 3 @ .5m each
- Nutek bare board loader
- Nutek 90 deg turn conveyor
