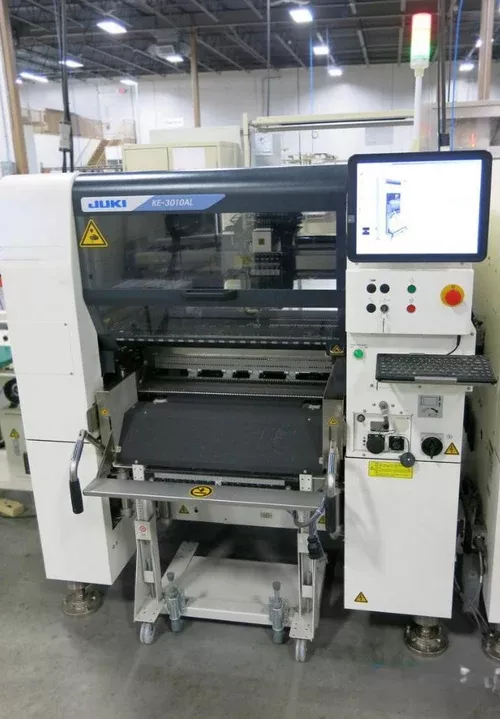

Juki KE-3010AL

Extra Long board Option 800mm x 360mm
One multi-nozzle laser head (6 nozzles)
(2) Trolleys Front & Rear
Feeder Float Sensor Front & Rear
For fast placement of ultra-small components
Nozzles are included

Rated speed: 23,500 CPH chip (optimum)
18,500 CPH (IPC9850)
From 0402 (metric)/01005 (inch) to 33.5 mm square components

Power supply 200 ~ 415 VAC, 3-phase
Apparent power 2,2 kVA
Operating air pressure 0.5 ± 0.05 MPa
Air consumption 50 L/min
Machine dimensions
(W × D × H*7) 1,500 × 1,690 × 1,500 mm Estimated weight: 1900Kg
