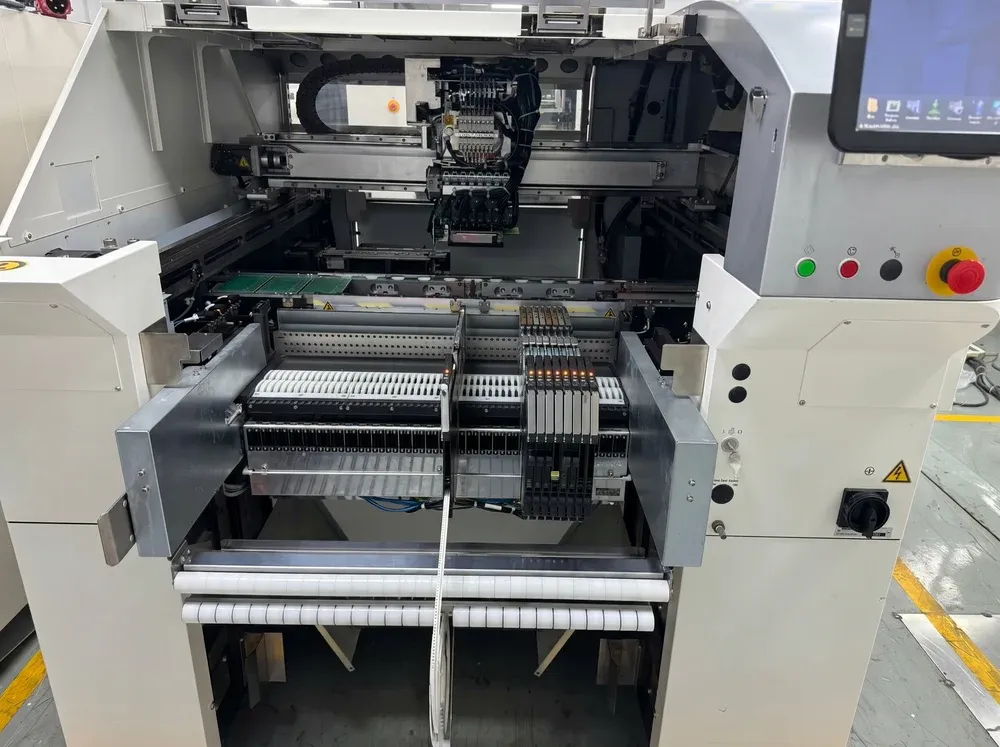

Juki RS-1 Pick and Place Machine

High-Speed Flexible SMT Placement System for
Advanced Electronics Manufacturing

The JUKI RS-1 (2017) is a high-speed,
high-precision SMT pick and place machine designed for flexible,
single-platform component mounting.
It features JUKI’s TAKUMI 8-nozzle head system,
delivering fast, accurate, and versatile placement in
a compact design. It is widely used in LED,
consumer electronics, automotive electronics,
and high-mix SMT production, offering up to 47,000 CPH speed
with ±0.035 mm accuracy. Built for efficiency,
it enables high throughput, minimal changeover time,
and broad component compatibility in a single integrated system.

Key Specifications & Technical Details
Performance
• Maximum placement speed: Up to 47,000 CPH (Optimal conditions)
• IPC standard speed: ~29,000–31,000 CPH
• Placement accuracy: ±0.035 mm (Cpk ≥ 1)
• High-speed multi-nozzle system: 8-nozzle parallel Takumi head

Component Handling
• Component range: 0201 (metric) to 74 mm square /
50 × 150 mm large parts
• Component height: Up to 25 mm
• Supports ICs, resistors, capacitors, connectors, LEDs,
and mixed SMT components
• Nozzle system designed for multi-size,
no head change required operation

PCB / Board Capacity
• PCB size range:
Minimum: 50 × 50 mm
Maximum: 650 × 370 mm (standard single clamp)
• Extended: up to 1,200 × 370 mm (with conveyor extension)

Feeder System
• Feeder capacity: Up to 112 feeder slots
• Supports RF-series electric feeders
• Optimized feeder positioning for faster pick cycle &
reduced travel distance

Machine Dimensions & Physical Specs
• Dimensions (W × D × H): 1,500 × 1,810 × 1,440 mm
• Machine weight: Approx. 1,700 kg

Utilities & Power Requirements
• Power supply: 200–415 VAC, 3-phase
• Apparent power: 2.2 kVA
• Air pressure: 0.5 ± 0.05 MPa
• Air consumption: ~50 L/min (max)

Core Technology Highlights
• TAKUMI 8-nozzle head system for simultaneous placement
• Auto height recognition sensor (1–25 mm adjustment)
• No head change required → reduces downtime significantly
• High-speed vision recognition system
• Optimized pick-to-place travel path for efficiency
• Includes JaNets software for offline programming capability
