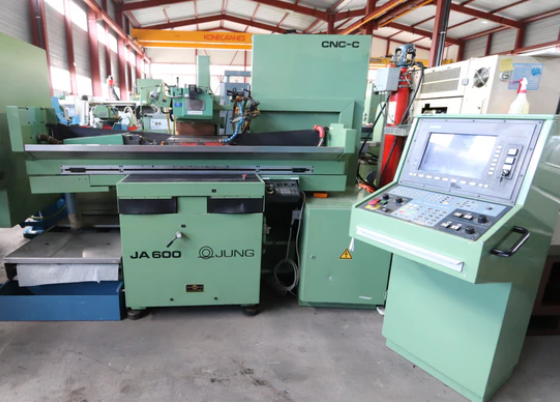

Jung JA 600-C

Ref : 2810073-3-CP

Condition : Used

Manufacturer : Jung

Model : JA 600-C

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 600 mm
Z-axis travel: 280 mm
Y-axis travel: 370 mm
Control: Siemens
Table size: 600 × 200 mm
Maximum table load: 150 kg
Maximum distance from table to spindle centerline: 500 mm
Grinding wheel diameter: 300 mm
Grinding wheel width: 32 mm
Grinding wheel bore: 76 mm
Grinding wheel speed: 800–4200 rpm
Table speed: 1–24 m/min
Grinding spindle motor: 10 kW
Total power: 12 kVA
Power supply: 400 V, 3-phase, 50 Hz
Magnetic chuck: 450 × 240 mm
Machine length: 2270 mm
Machine width: 1500 mm
Machine height: 1850 mm
Machine weight: 2300 kg
Coolant system
Paper filtration system
Wheel dresser
CNC table dresser
Set of flanges
Splash guard
Electronic hand-held control
