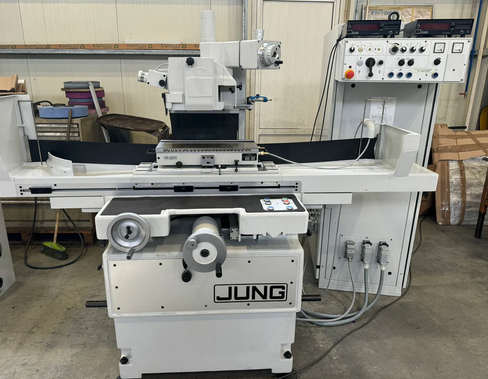

Jung JF 520

Table size 600 x 200 mm
Grinding length 600 mm
Grinding width 230 mm
Grinding height 400 mm
Max distance table to spindle center 500 mm
X axis travel 700 mm
Y axis travel 200 mm
Table speed 1–24 m/min
Creep feed 100–450 mm/min
Vertical feed 1–400 mm
Grinding wheel diameter 225 mm
Grinding wheel width 25 mm
Grinding wheel bore 50 mm
Grinding wheel speed 1000–4000 rpm
Spindle motor 1.1 / 3.6 CV
Total power 8 kVA
Power supply 380 V 3-phase 50 Hz
Machine weight 1850 kg
Machine dimensions 2250 x 1500 x 1850 mm
Dividing attachment
Coolant system
Paper filtration system
Electromagnetic chuck 500 x 200 mm
Swiveling magnetic plate 250 x 150 mm
Diamond dresser
Table-mounted dressing device
DIAFORM profile dressing attachment
2-axis digital readout HEIDEHAIN
Oil cooling unit
