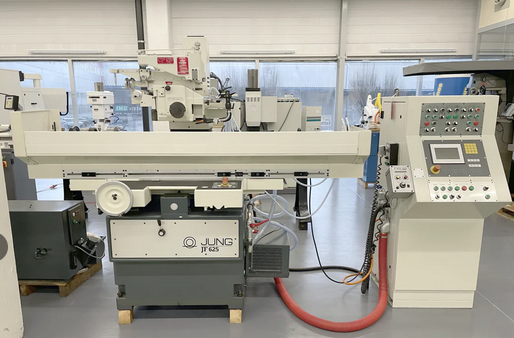

Jung JF 625 CNC-B

Machine type: CNC / NC surface grinder
Control: Fuji Electric MONITOUCH
Table size: 600 x 250 mm
Grinding length: 600 mm
Longitudinal travel (X-axis): 600 mm
Cross travel (Z-axis): 280 mm
Max. distance table to spindle centerline: 500 mm
Table speed range: 1–24 m/min (stepless)
Automatic cross feed: up to 10,000 mm/min
Power supply: 3 × 380 V / 50 Hz
Grinding spindle motor: 9.5 kW
Total power requirement: 13 kVA
Machine weight: approx. 2,500 kg
Overall dimensions (L x W x H): 2910 x 2320 x 1840 mm

Features / equipment
CNC surface grinder for high-precision applications
Electrical magnetic chuck 500 x 200 mm
Coolant system
High-pressure coolant device
Paper filtration system
Diaform profiling device (ratio 5:2)
Electronic handwheel
Automatic central lubrication system

Condition
Used
Good working condition
