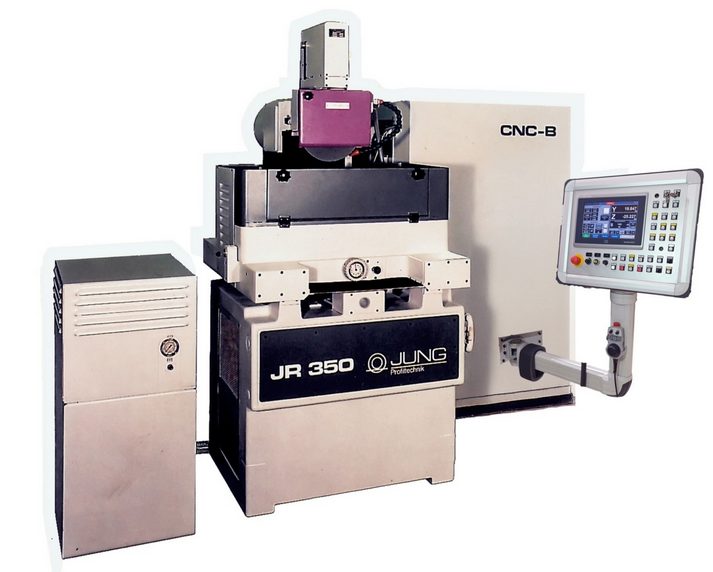

Jung JR350

Workpiece diameter: 350 mm
Workpiece height: 240 mm
Workpiece weight: 99999999 kg
Total power requirement: 7.5 kW
Machine weight: 2 t
Rotary table diameter: 380 mm
Magnet diameter: 350 mm
Grinding wheel dimensions: 300 x 25 x 76.2 mm
Table rotation speed max.: 200 U/min
Table swivel angle: ±3°
Grinding spindle speed: 800-4200 U/min
Grinding spindle motor power: 5 kW
X-axis travel: 225 mm
Z-axis travel: 480 mm
Distance between magnetic chuck and spindle center max.: 390 mm
Automatic dressing unit AF65
Automatic workpiece probing device AT-R
NC control with integrated BEMA grinding software
Integrated dressing cycles
Pendulum grinding program
Short stroke grinding program
Plunge grinding program
Single or multiple surfaces at same or different heights
