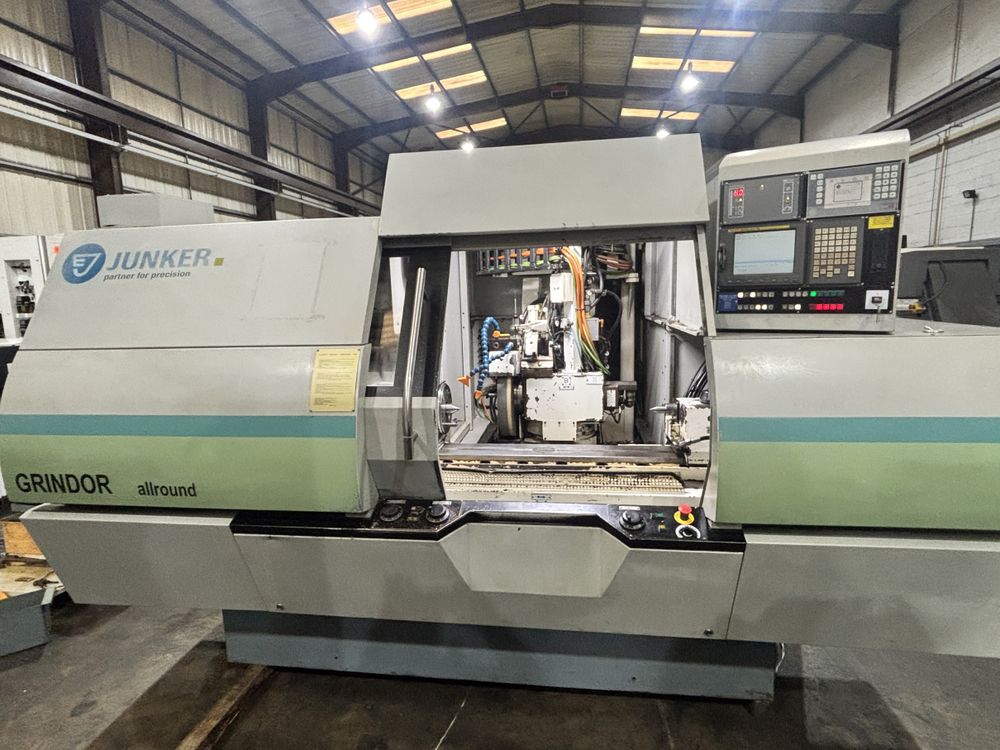

Junker GRINDOR Allround
Ref :
2802646-3-AW
Condition :
Used
Manufacturer :
Junker
Model :
GRINDOR Allround
Year(s) :
2011
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-Axis Travel: 350 mm
Z-Axis Travel: 1000 mm
Maximum Grinding Length: 800 mm
Maximum Grinding Diameter: 290 mm
Maximum Workpiece Weight: 80 kg
CNC Control: Fanuc 21i-TB
Grinding Wheel Size: 290 × 63 mm
Internal Spindle Motor Power: 1.5 kW
Internal Spindle Speed: 25,000 / 42,000 / 55,000 RPM
Spindle Motor Power: 5 kW
Workhead Speed: 1000 RPM
Workhead Swivel Angle: 0–90°
Workhead Dead Spindle Taper: MT #5
Tailstock Quill Stroke: 30 mm
Tailstock Taper: MT #4
Table Swivel Angle: +6° / -3.5°
Machine Weight: 5,000 kg
