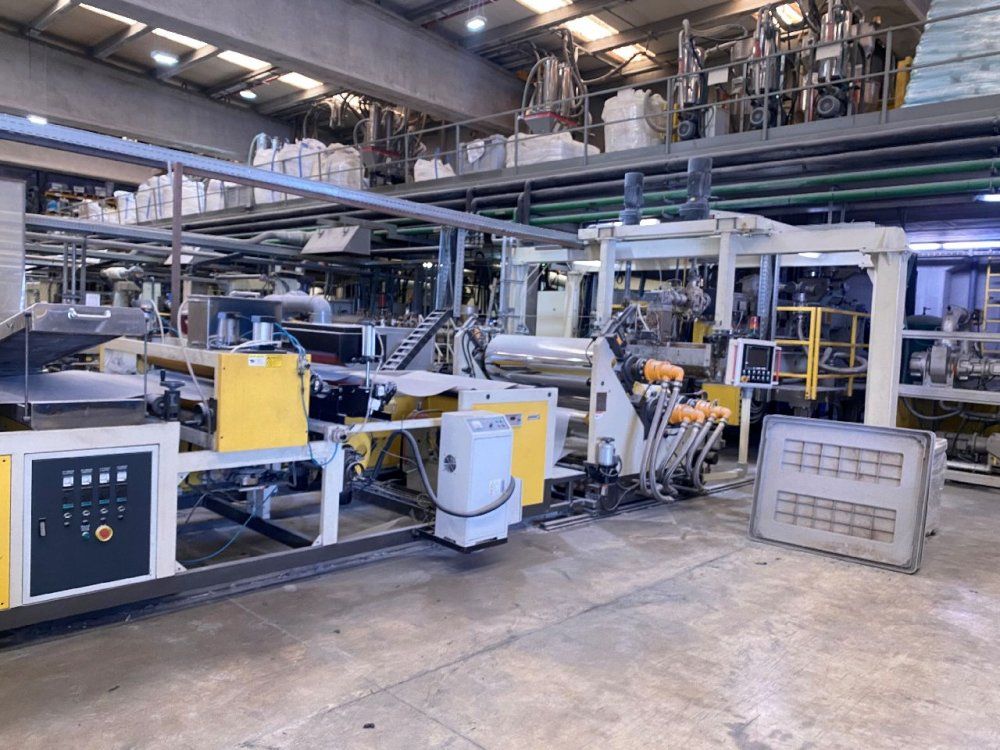

JWell Plastic sheet extrusion machine

Number of layers 3
Sheet/foil structure ABA
Material PET, APET, RPET and PET-G sheet for thermoforming applications
Sheet width (mm) 1350

Extruder 1 Layer ref: A
Screw diam 52 mm
Description JWELL JWE52/40 twin-screw

Extruder 2 Layer ref: B
Screw diam 75mm
Description JWELL JWS75/40 twin-screw, L/D ratio: 40:1, Main motor power: 132 kW

Die width (mm) 1350
Speed: 30 m/min
Output: up to 550 kg/h
Sheet Thickness Range: 0.20–1.20 mm

Includes:
- raw material dosing system
-PET crystallization/drying system
-Hydraulic filter screen changer
-Gear pumps / melt metering pumps
-Feed block / three-layer mixing block
-Three-roll calender at 45° / polishing unit
-Haul-off unit Edge trimming unit Silicone bath / coating system
Four-station winder
Electrical control system
with Siemens / ABB components
