Kalfass UNIVERSA 500 500 mm x 80 mm

Max. product size: 500 mm
Min. product size: 80 mm
Speed: 85 cycles/min
Max. pile height: 200 mm

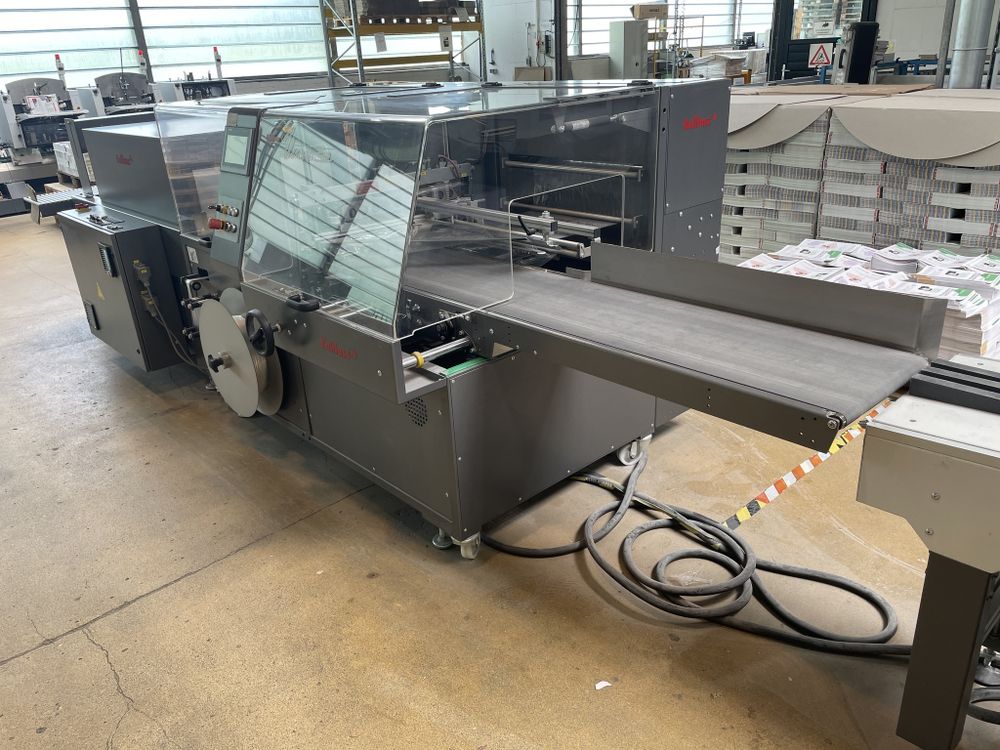

KALLFASS Fully-automatic Side Sealer Universa 500T
Technical data:
Cross seal bar, length - 500mm
Product clearance height - 200mm
Power supply - 208 -480 Volt
Film, center-foldedfilm - 12 - 80
Transport speed - 10 - 35 meter / minute
Packaging speed, max. - 85 cycles / minute
Power connection: 400 V three-phase current, 50/60 Hz with protective conductor
Rated power: 3,5 kVARated current at 400 V: 5,1 A

KALLFASS Shrink Tunnel Compact 650 S
Technical data:
Adjustable working height - 800 - 900mm
Tunnel clearance width, height - 650mm, 200/400mm
Length of the heated tunnel hood - 1200mm
Power supply - 280 - 40 Volt
Continuously adjustable temperature - bis 190 C
Transport speed - 5- 17,5 meter / minute
Installed heating capacity - 13,5 kW
Power connection: 400 V three-phase current, 50/60 Hz with protective conductor
Rated power: 14,5 kVA - 11,1 kVA
Rated current at 400 V: 20,9 A + 16,0 A
Perfect for fully automatic film packaging, this system offers proven technology at excellent value.
Manufacturing companies with a broad product range, industrial services companies, and contract packaging companies
benefit greatly fromm the efficient production processes and simple handling of the robust, reliable film packaging system.
The compact shrink tunnel for small to medium formats. With the extra advantage of heat performance.
