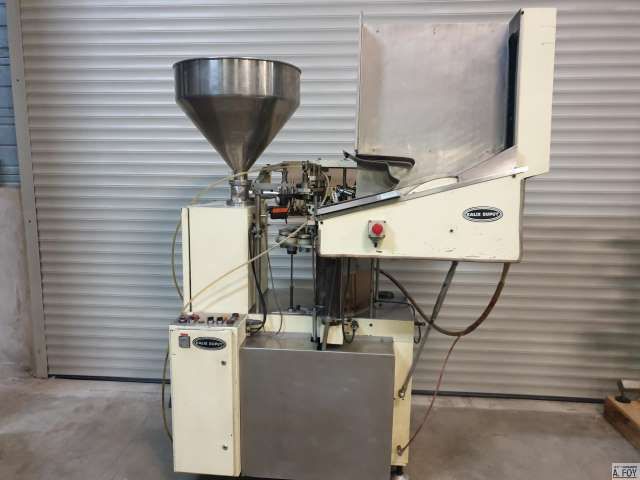

Kalix Dupuy KX 14 S

Filler metal tube filler and sealer

Weight : 500 kg
Dimensions : (L x W x H) 1.60 x 0.80 x 2.20 M

Automatic volumetric filler for liquid, sticky, viscous, and doughy product

Equipment :
- Automatic tube loader
- Tube orientation system
- 16 stations rotating table
- Volumetric piston filler with s/s rotary valve
- Interchangeable piston
- Stainless steel nozzle with suck back system for dripping
- Infeed s/s hopper: 70 liters
- Electric eye for tube centering
- Fold and crimp station
- Sealing station with coding (currently without character)
- Tube discharge chute
- Driven by variable speed
- Stainless steel frame

Mounted on casters
Current equipment :
- 1 set of 16 tube holders for round tube
- 1 piston: 52 mm diameter (filling from 40 ml to 150 ml)
- Stainless steel nozzle : 10 mm diameter

Capacity :
- 20 mm diameter x 220 mm high tube
- Filling volume range: 2 - 290 ml per tube (according to piston)
- Output : 4000 tubes/hour
- Power : 1,5 kW
