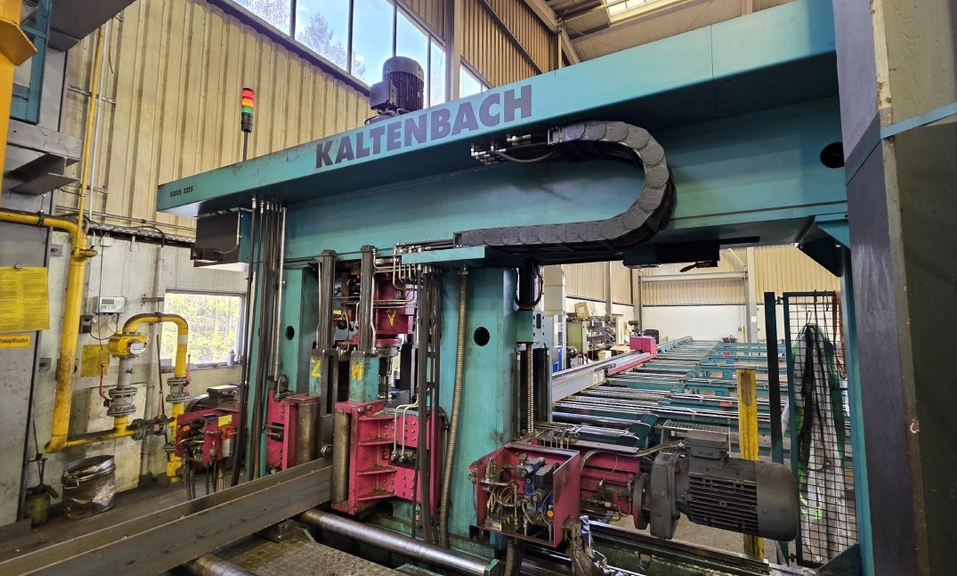

Kaltenbach KDX 1215 + HDM 1432 Band saw CNC Controller

Workpiece width: 1,200 mm
Workpiece height: 500 mm
Drilling diameter: 8–40 mm
Number of drilling spindles: 3
Spindle speed: 150–1,100 rpm
Automatic tool changer: 15 positions
Saw blade diameter: 1,430 mm
Saw blade type: HSS segment saw blade
Saw blade size: 100 × 4 × 30 × 250 mm
Cutting width: 9.5 mm
Cutting speed: 8–30 m/min
Drilling feed: 0–500 mm/min
Saw feed: 0–400 mm/min
Rapid drilling advance: 3,850 mm/min
Rapid drilling return: 8,000 mm/min
Positioning speed: 15,000 mm/min
Rapid saw return: 2,000 mm/min
Horizontal clamping force: 25,000 N
Vertical clamping force: 4 × 10,000 N
Drilling motors: 3 × 11.0 kW
Saw motor: 18.5 kW
Positioning drives: 3 × 1.5 kW
Hydraulic unit: 5.5 kW
Saw hydraulics: 3.0 kW
Vertical clamp motor: 1.5 kW
Swing drive: 0.25 kW
Hydraulic oil heater: 3.0 kW (optional)
Power requirement (drilling unit): 43 kW
Installed power (complete line): approx. 66 kW
Air pressure: 6–8 bar
Air consumption: 1,000 l/min
Drilling unit dimensions: 6,650 × 1,300 × 3,730 mm
Saw dimensions: 4,500 × 1,500 × 3,200 mm
Working height: 640 mm
Drilling unit weight: approx. 8,500 kg
Saw weight: approx. 10,980 kg
Total weight: approx. 19,500 kg
Operating voltage: 400 V / 50 Hz
Control voltage: 24 V
