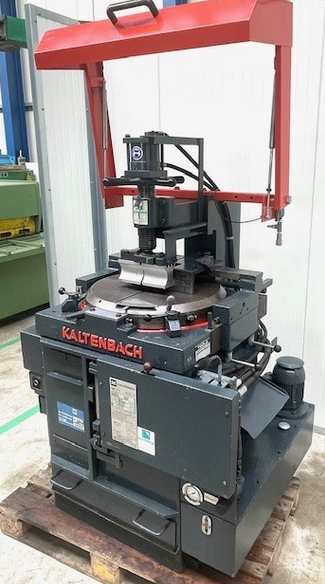

Kaltenbach KKS 400 Metal Processing Saws Cold Circular Saw SemiAutomatic

KALTENBACH KKS 400

-The powerful, 2-stage gear was specially designed for cuts in solid material
designed
-The user has a total of 4 blade speeds for optimal adjustment
the material available
-The large bearing rotary table with internal table clamping and
Precision stops at 0/45/60° ensure quick adjustability
miter cuts
-The vice with quick clamping (optional is a pneumatic one
Vise = MA, available) is with screwed vise jaws
Mistake. With their ribbing, these ensure optimal hold of the workpiece
-Underframe with lockable door, chip drawer and removable
Coolant pan with electric coolant pump
-Chip removal brush
Enquiry
Screenreader label
Name *
Email *
Phone
Subject *
Message
Security question *

7DK__________Y_______
2_T____S____Y1____IQU
KLF___EAD____W_______
__R____D_____Q____3AP
P1Y_________WON______

Screenreader label
Technical specifications

saw blade diameter:
370 mm
cutting diameter:
115 mm
stroke:
- mm
capacity 90 degrees: flat:
300 x 35 mm
cutting speed:
11 / 15 / 22 m/min
total power requirement:
1,4 kW
weight of the machine ca.:
850 kg
dimensions of the machine ca.:
1100 x 1100 x 1600 mm
