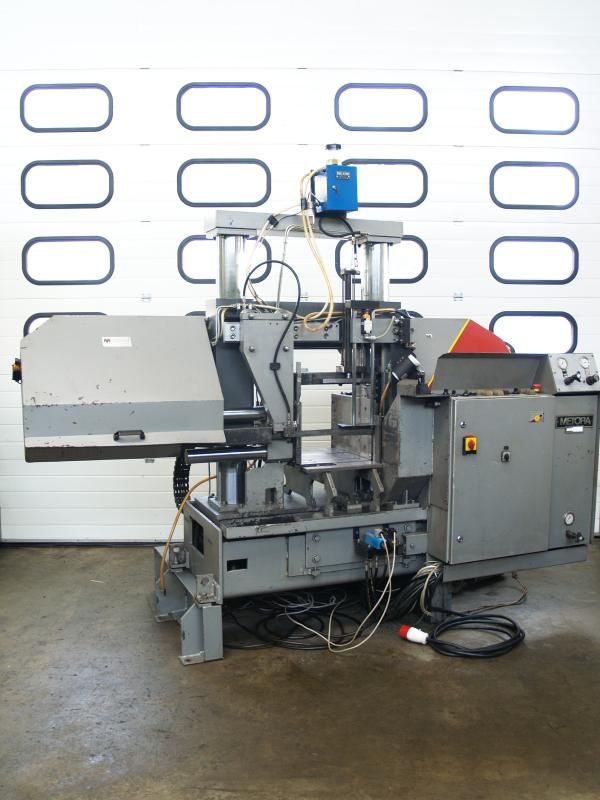

Kaltenbach, Metora HMB 380 DS Band Saw SemiAutomatic

Cutting range round Ø 380 mm
Cutting range square 380 x 380 mm
Saw blade dimension 5650 x 34 x 1.1 mm
Saw blade speed 25–108 m/min stepless
Material infeed height 870 mm
Hydraulic drive power 1.5 kW
Saw motor power 4 kW
Power supply 400 V
Frequency 50 Hz
Two column design
Hydraulic saw frame lowering with stepless cutting pressure adjustment
Lowering speed stepless adjustable
Hydraulic vise clamping
Hydraulic bundle clamping from above
Hydraulic unit integrated in machine base
Material feed roller on infeed side with gear motor
Coolant system with coolant pump for water emulsion
Minimum quantity lubrication for saw blade
Electric heating cartridge for coolant and hydraulics
Length stop TRENNJAGER EX-Stop1
Handwheel adjustment
Digital display
Hydraulic stop slide clamping
Stop length 6750 mm
Stop travel 5650 mm
Hydraulic liftable stop arm
Machine dimensions 2800 x 1400 x 2450 mm
Machine weight approx. 3 t
Stop system weight approx. 800 kg
