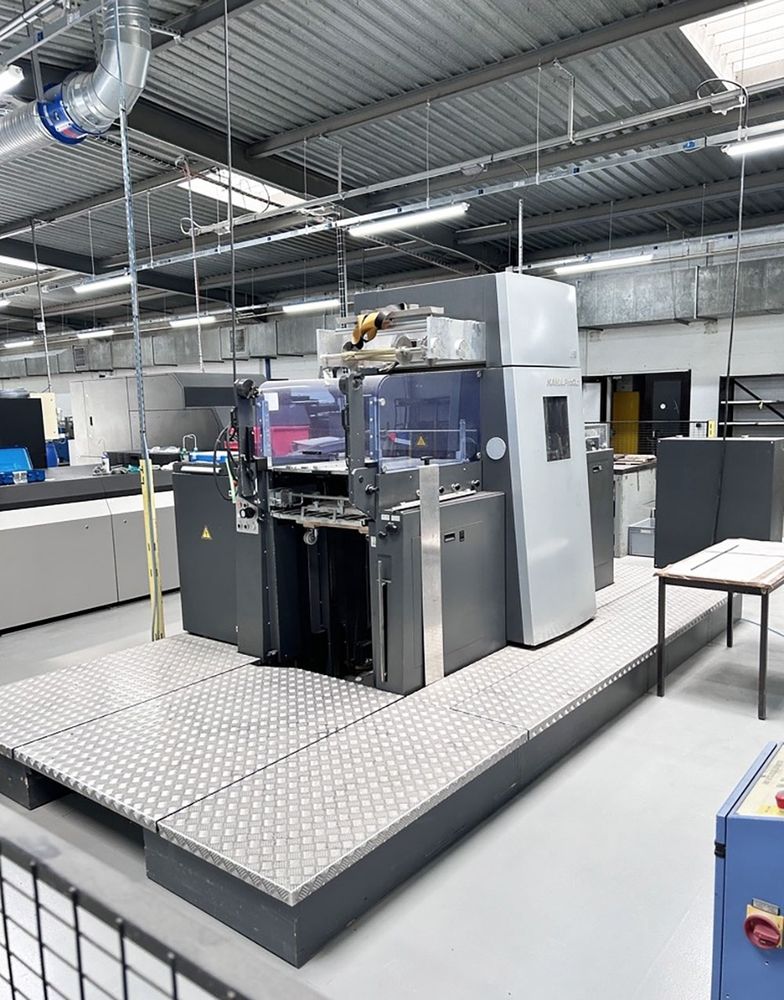

Kama ProCut 74 hot foil with Hologram

Machine: Hot foil punch and emboss machine
Type: - PC 74 F
- Sheet format max. = 760 x 600 mm
- Sheet format min. = 279 x 210 mm
Die-cutting size: - Punching format max. 743 x 585 mm
Embossing format: - Embossing format max. 740 x 560 mm
Cutting strength: - Punching force 165 t (1.65 MN)
Material:
- Plastic (PET, PP, PVC) max. 1,500 g/qm
- Cardboard, microwave max. 1,500 g/qm (or 1.8 mm)
- Paper from 100 g/qm
Feeder: - MABEG sheet feeder with suction belt table
Gripper margin: - 0.39"
Controls: - Front and side marker control
Embossing unit:
- 1 Hologram and hot foil stamping
- 1 Hot-Cut system
Punching:
- Motorized punching force adjustment
- 1 closing frame
- 1 removable disk system
- 1 punching plate and side plate
- 1 Basis plate for 4 + 1 change plate system
- 6 1.2 mm punching plates AS Medium
Equipment:
- Right and left side marker
- Electrostatic discharge device

Condition: How it stands and goes
Speed: max. 5,500 cycles/h
Length: 4,870 mm
Width: 2,690 mm
Power supply: This machine is connected to 400 / 230 V, 50 / 60 Hz
Important: Connection requirements of any power utility note!
CE mark: The machine bears the CE mark
Specifications: Technical data and illustrations are subject to change.
