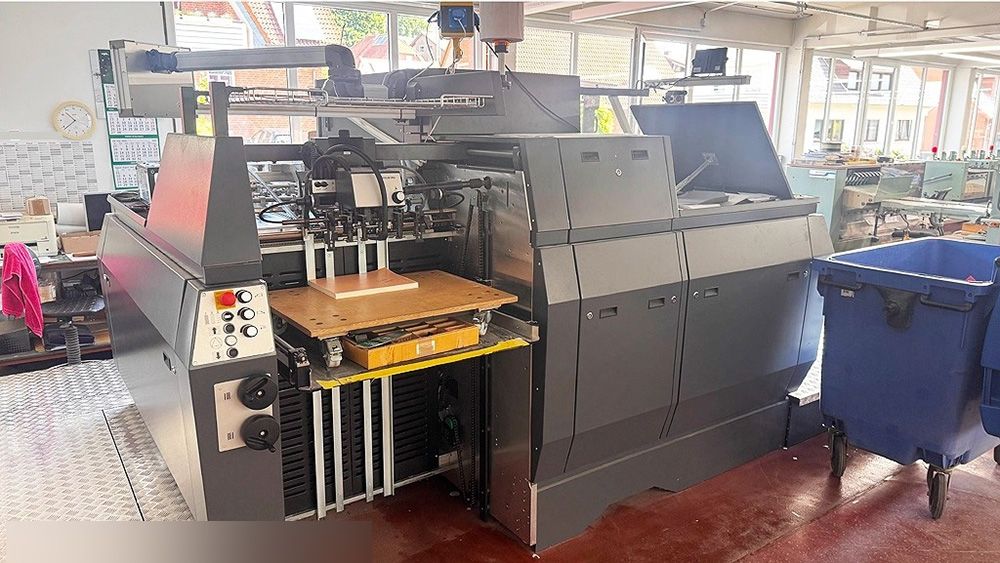

Kama ProCut 76

Punching / embossing machine
Sheet size:
- Sheet format max. 760 x 600 mm
- Sheet format min. 279 x 210 mm
Die-cutting size: - Punching format max. 743 x 585 mm
Cutting strength: - Punching force 165 t (1.65 MN)
Gripper margin: - 0.39"
Feeder:
- Servo sheet feeder
- Right and left side marks with register sensors
Material:
- Paper from 100 g/qm
- Cardboard, microwave max. 1,500 g/qm (or 1.8 mm)
- Plastic (PET, PP, PVC) max. 1,500 g/qm

Equipment:
- Punching force indicator with overload protection
. - Electronic double sheet control
- Pneumatic tool clamping
- Starter kits Cito + Marbach
- 1 standard lock-up frame
- 1 lock-up frame with perforated plate
- 1 �Standard� strike frame with fine adjustment
- 3 stacking carts for feeders and output Sheet feeder
- 1 stacking plate for delivery
- 4 + 1 Change plate system
Maintenance: - Prepared for remote maintenance via the Internet (Ethernet)
Condition: Very good, very well maintained
Total counter: ca. 2,7 mio.
Operation hours: approx. 995 operating hours
Speed: Speed. 5,500 sheets /h
Length: 4,870 mm
Width: 2,690 mm
Air supply: PIAB (for connection to central compressed air supply)
Power supply: This machine is connected to 400 V, 50 / 60 Hz.
Important: Connection requirements of any power utility note!
