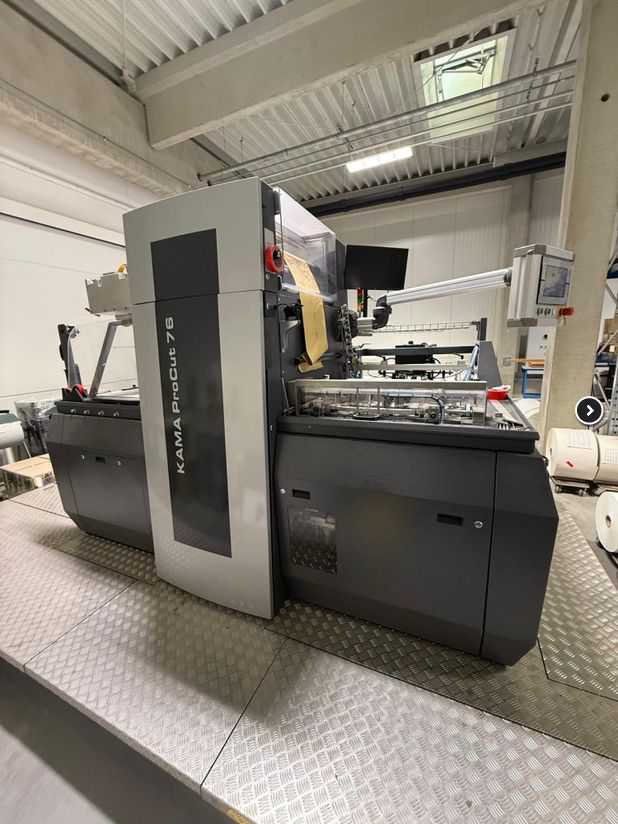

Kama PROCUT 76

Sheet size max: 740x600 mm
Sheet size min.: 280x210 mm
Platen pressure max.: cutting force 165 Ton
Production speed: 5.500 sh/h.
Foil Servo-driven sheet feeder motorized die-cutting pressure adjustment (MPC) rectangular die-cutting marks with register sensors
Electronic double-sheet detection
4+1 system
1 pc. 4 mm base plate
1 set of 1 mm plates (5 medium), hard
1 standard locking frame
3 pallet trolleys for feeder and delivery sheet feeder starter kits Cito + Marbach
Premium tool clamping technology die-cutting pressure display with overload protection
KAMA hot foil stamping system: Foil transport with 2 unwinding and rewinding motors
1 KAMA heating frame with 6 heating zones, two carrier plates, 2 sets of mounting elements
Foil Save software, starter kits Kurz + H&M
Pressure/vacuum pump for blowing and suction air supply (190 Nl/min at 6 bar compressed air)
Electrical equipment: 400 V, 50/60 Hz, 3-phase (no transformer included)
Prepared for remote service via Internet (Ethernet)

Additionally:
2 additional pallet trolleys for feeder and delivery (total of 5)
KC1020 – AutoRegister AR3
With two cameras: registers each sheet in X and Y direction as well as rotation.
KC1030 – Servo main drive for asynchronous drive cycle
Up to 50% increased machine speed or longer contact time for hot foil stamping
KC1040 – Surcharge for Big Bite Gripper (BBG)
With extended opening (instead of standard gripper)
KC1060 – Surcharge for PIAB system for central blowing, pressure,
and vacuum air supply 1,300 Nl/min at 6 bar compressed air instead of DN pump
KD1020 – Universal locking frame with fine adjustment for all tool sizes
Variable die-cutting, creasing, perforating forme
Marbach 3 × X + 3 × Y creasing rules
