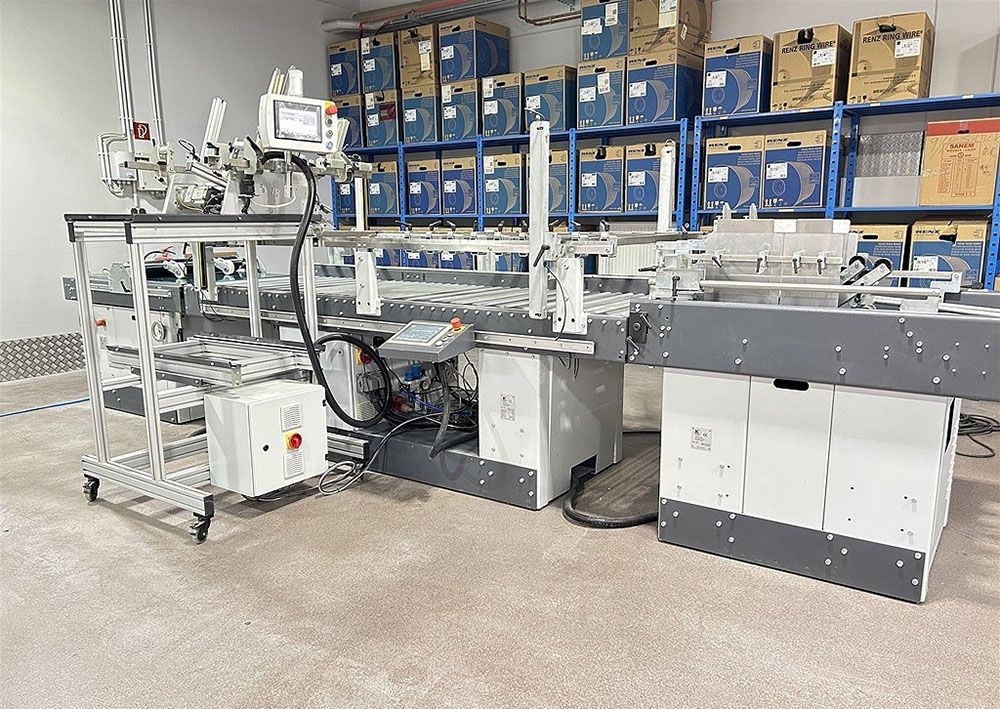

Kama ProFold 74

Folding and gluing machine
Impression: 6.133 h
Machine: folding box gluer
Material: * Solid paper, cardboard, plastic
Grammage: * - 100 to 600 gsm
Cutting format: - min. 100 x 80 mm (width x length)
Product format: - min. 50 x 80 mm (width x length)
Glue system:
- Baumer hhs hot melt system with 4 channels, 2 nozzle heads
- Baumer hhs: 1 pc. Nozzle head incl. hose, attachment
Control: - PLC with 8 control channels (Omron), color touch panel
Feeder:
- Suction belt feeder, top loader
* Setup for fill level

Folding:
- 1 pair of short plow rebates for flaps with pneumatic flap,
- 1 pair of long plow rebates (both left and right)
- Top buckle plate with powered rollers
- Compression-seamed board, Tipper fold
Folding bottom:
- 3-point gluing), 3rd glue nozzle, 2 x 3 rolls
- 2 x 6 rolls, 6 clamp connections
Turning: - Programmable, driven turning device 90

Donate:
- Servo-controlled friction feeder for flat products,
- register +/- 1 mm, 2 pcs. Pressure roller with 11 rollers
- 2 pcs. Pressure roller with 1 roller
Transport: - Transport module (2,800 mm) with roller drive
Delivery: - 1,000 mm, with press roller

Operation: - 36,888 operating hours
Condition: How it stands and goes
Output: * 36,000 cycles/h
Output: * max. output at filling level 6,000 cycles/h
Speed: max. linear speed 150 m/min
Length: 5.500 mm
Width: 1.000 mm
Power supply: This machine is connected to 400 V, 50 / 60 Hz.
Air supply: Compressed air supply: 6 bar, required on site
Power input: 4,5 kW
Important: Connection requirements of any power utility note!
CE mark: The machine bears the CE mark
Specifications: Technical data and illustrations are subject to change.
* depending on material, format and equipment
