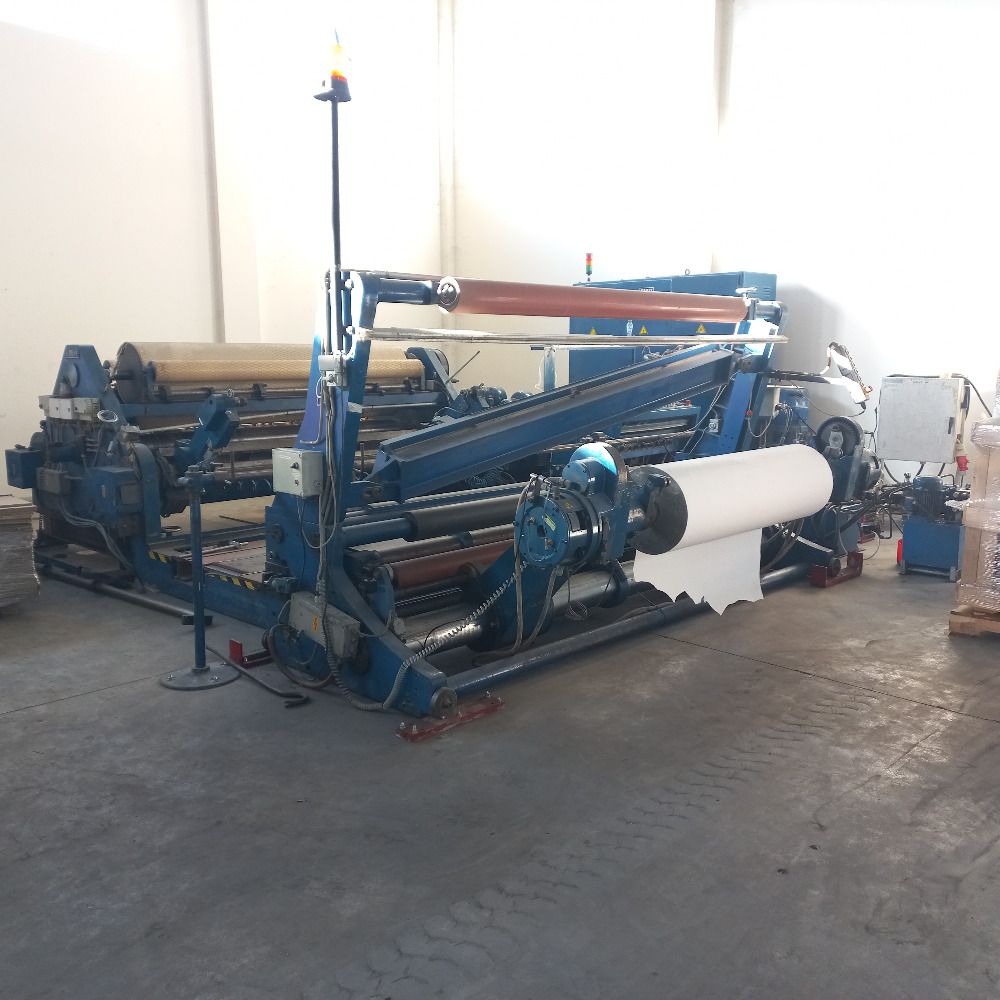

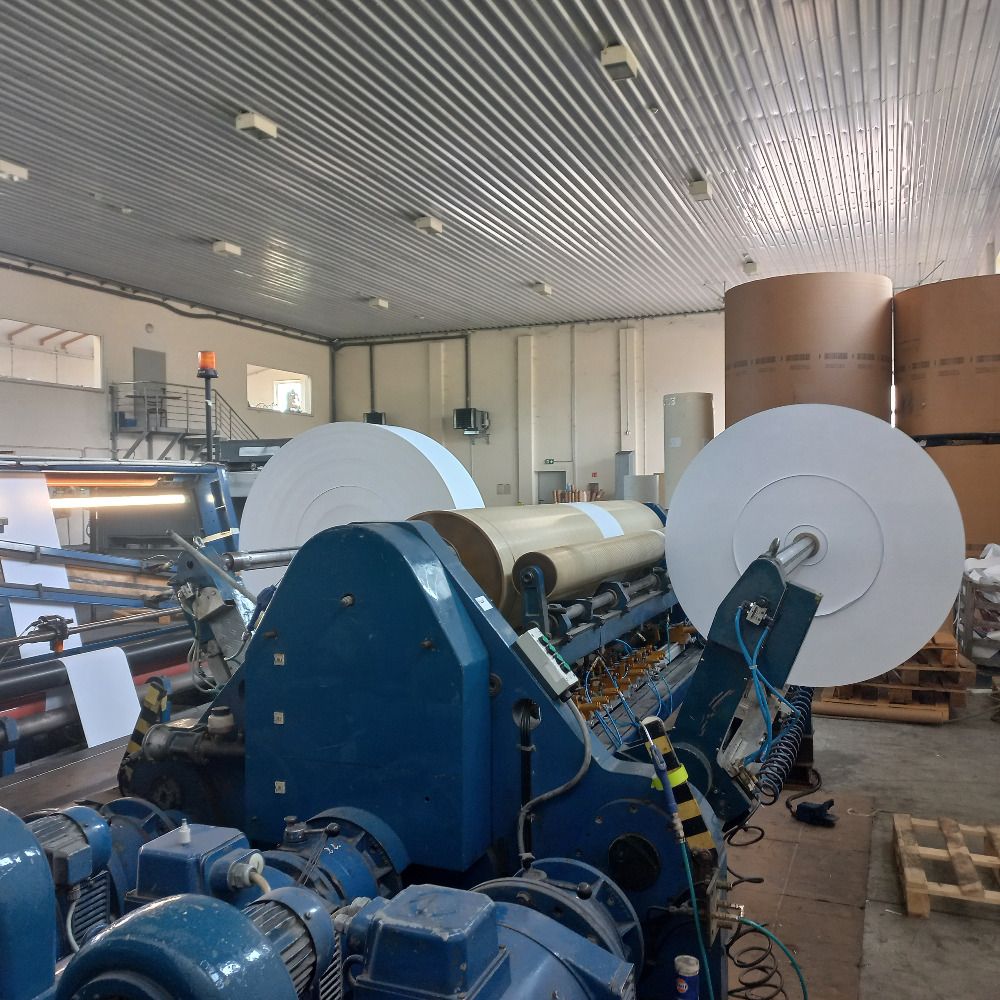

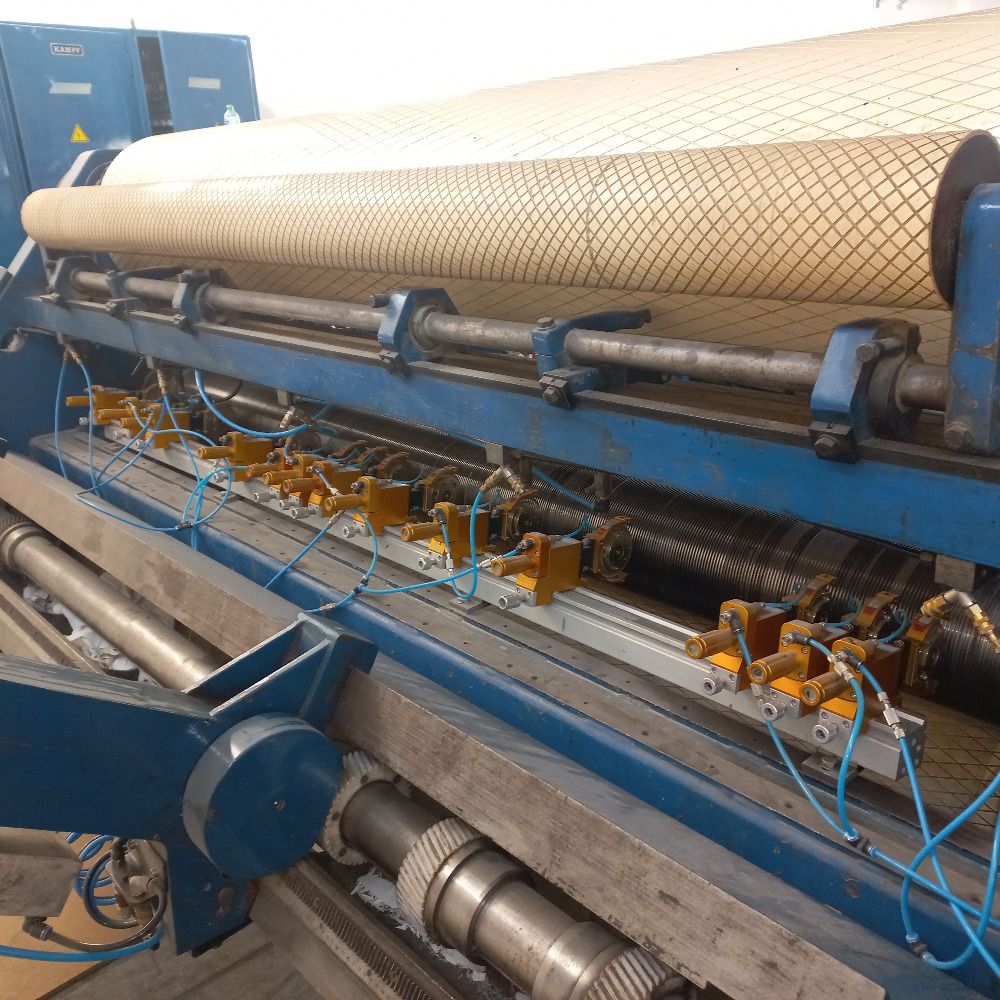

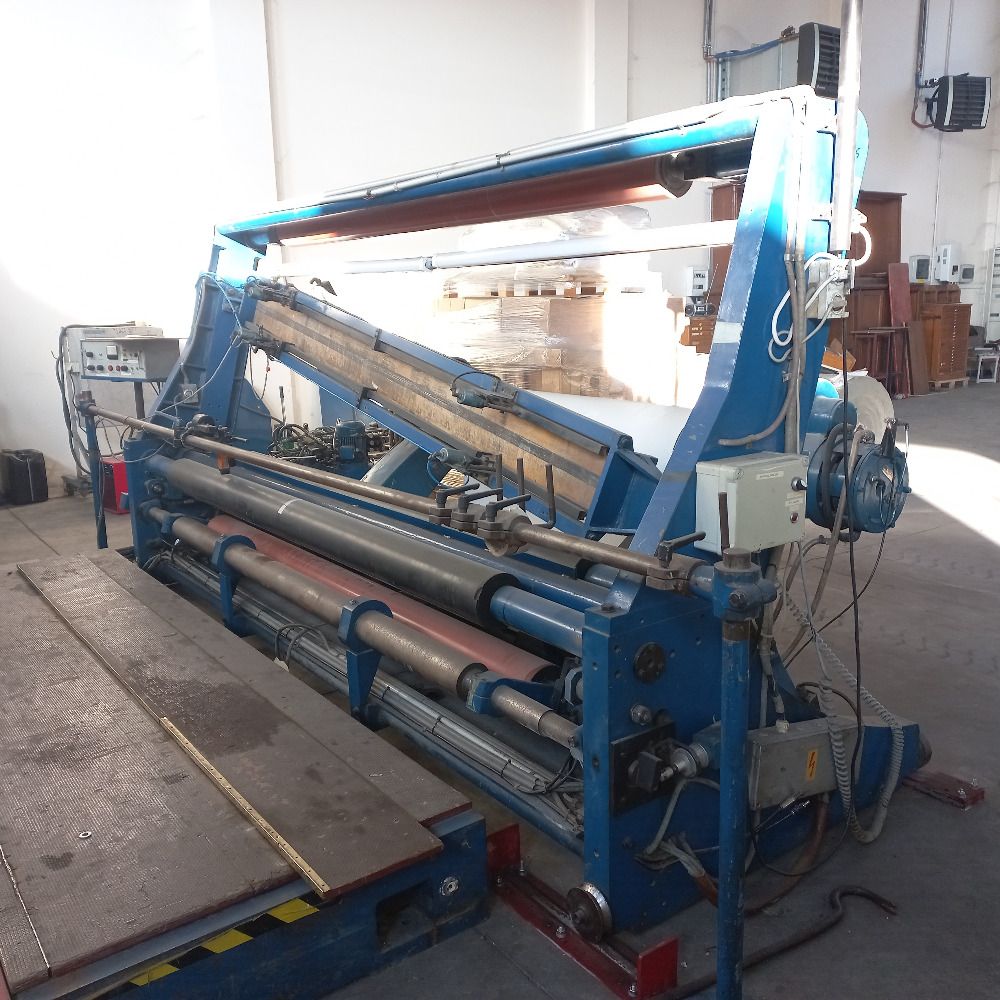

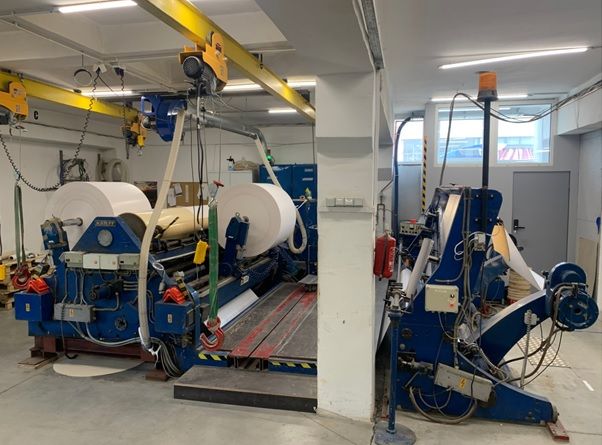

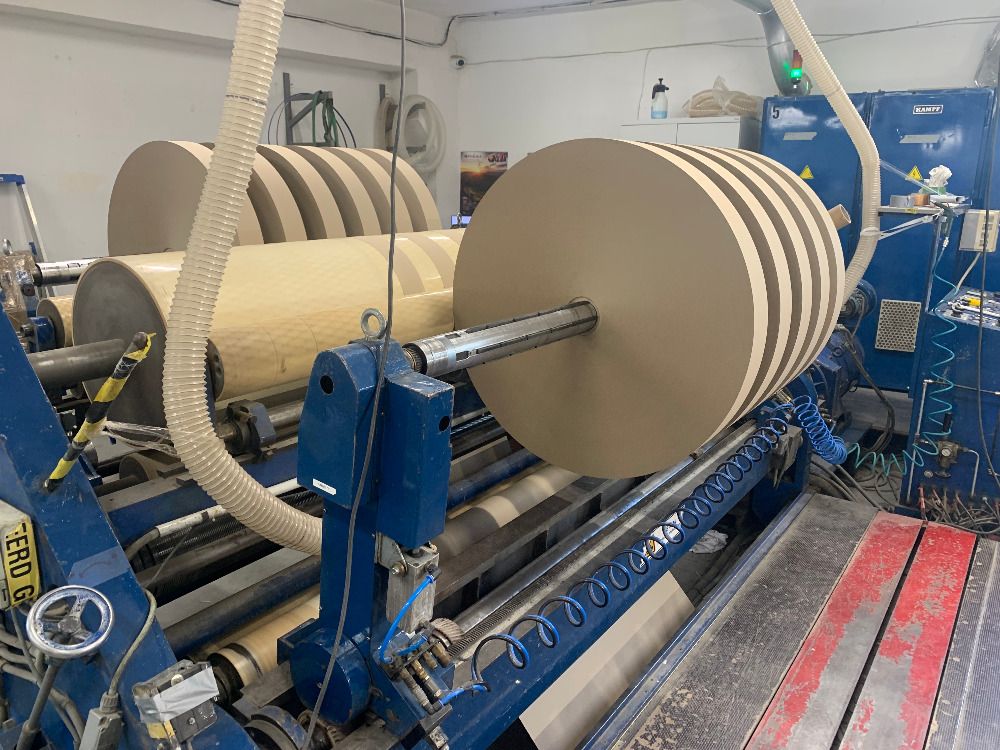

Kampf 1.600 mm Slitter Rewinder

Width of the unwinding (mother) roll: 250 - 2300 mm

Minimum rewinding width: 50mm

Knife block 2200mm, stroke 5mm

Pneumatic heads - 13 pcs

Unwinding (mother) roll diameter: 1500 mm

Rewinding roll diameter: 1300 mm

Core size on unwinding: Φ76 - 300 mm

The size of the wound core: Φ76 or 150 mm

Grammage range: 40 - 500 gsm

Expansion shafts:
- 150mm / 1450mm width - 2 pcs
- 76/1800 - 2 pcs
- 76/2300 - 1 pc
- 76/1450 – 1 pc
- 76/1000 - 1 pc
- 76/900 - 1 pc

Roll weight: up to 3000 kg

Maximum scrolling speed depending on the type of material: 400m / min

Tension range: constant tension control, automatic adjustment

Total power: 35 kW

Voltage: three-phase 400V50HZ
