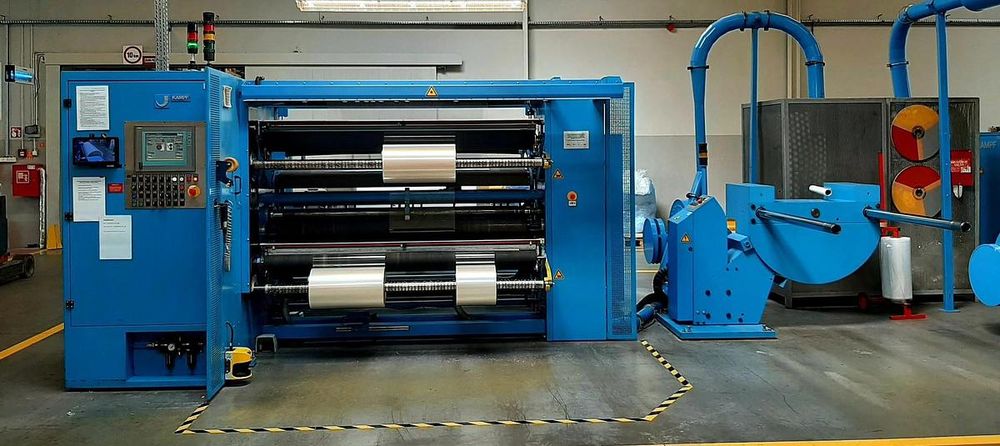

Kampf 2050 mm Conslit II 20/085
EUROPE (Western and Northern)
Slitter-Rewinder
Condition Used (visible in production)
Working Width Min.: 500mm - Max.: 2050mm
Working speed (Max.) Max. 800m/min, depending on the material, thickness, width and sleeve quality
Range of materials Film: PE, PP, PA, PET, PVC; paper and laminate, including BOPET, BOPP, CPP 12-150um (depending on width, speed and material)
Max. UNWINDER reel diameter 1300 mm
Max UNWINDER reel weight with sleeve 2000 Kg
Fixing Expansion heads
Min. fixing height 250 mm
UNWIND sleeve:
Outside diameter: Depending on equipment from 70mm Standard: 70-76,2mm (3”)
Tolerance: DIN 6748 or DIN 55470
Length: Min. 500mm - Max. 2200mm
Max. REWINDER reel diameter 850 mm
Type of WINDING Contact winding
Max. tension during WINDING (altogether for both reels) 650N
WINDING sleeve:
Paper (optional: plastic or metal)
Inner diameter: Depending on equipment from 70mm
Tolerance: DIN 6748 or DIN 55470
Lenght: According to current working width
Acoustic pressure level (without suction)
