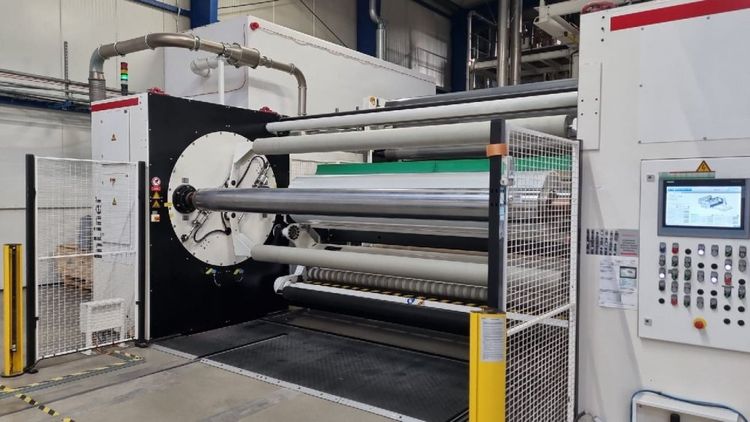

Kampf Inliner 37/12

Working width (mm) 3300
Thicknesses: CPP 20-80 microns and PA/PE 50-250 microns
Untrimmed width: 3580mm
Trimmed width: 3300mm
Upper roll width: 3700mm
Machine speed: 15 - 350 m/min
Production speed: 270 - 300 m/min
Trim width: 50mm, max 100mm
Number of knives: 2 (for side trimming only)
Effective width: 3300mm for CPP and 3200mm for protective film
Number of winding stations:
2 Core material: Steel cores, 8" ID and 260mm
OD Roll diameter: Min 300mm, max 1200mm
Max roll weight with core and winding shaft: 4000kg
Compressed air consumption: 43m³/h
Core trolley: 1.
Trolley exit length: 4.5m

Unwinders and rewinders are used as components in different types of
machines, like printing machines, laminators, extrusion lines.
