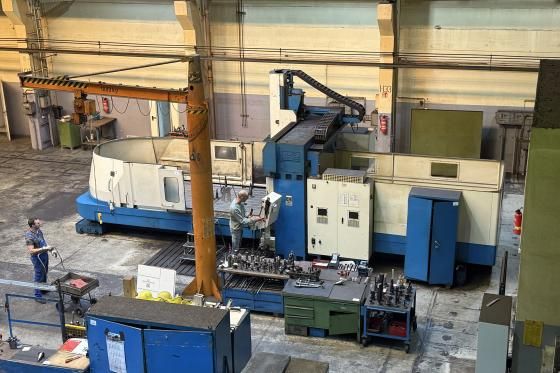

Kao Ming KMC 4000 SV-H Variable Speed
Ref :
2747956-3-GO
Condition :
Used
Manufacturer :
Kao Ming
Model :
KMC 4000 SV-H
Spindle Size :
-
Spindle Speed :
Variable Speed
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Axis travel X: 4230 mm
Axis travel Y: 2000 mm
Axis travel Z: 750 mm
Control: Heidenhain iTNC530 with HR410 handwheel
Distance table spindle nose: 213–1093 mm
Distance table spindle center: 130 mm
Distance between columns: 2100 mm
Table length: 4000 mm
Indexing horizontal head: 5° x 72 positions
Spindle torque: 1018 Nm
Spindle taper: ISO50
Universal Huron type milling head
Double guideway two box way construction
Head changer for multi-face machining of larger components
ATC tool changer for horizontal and vertical milling head swiveling
Machine length: 10100 mm
Machine width: 4500 mm
Machine height: 4250 mm
Machine weight: 30000 kg
