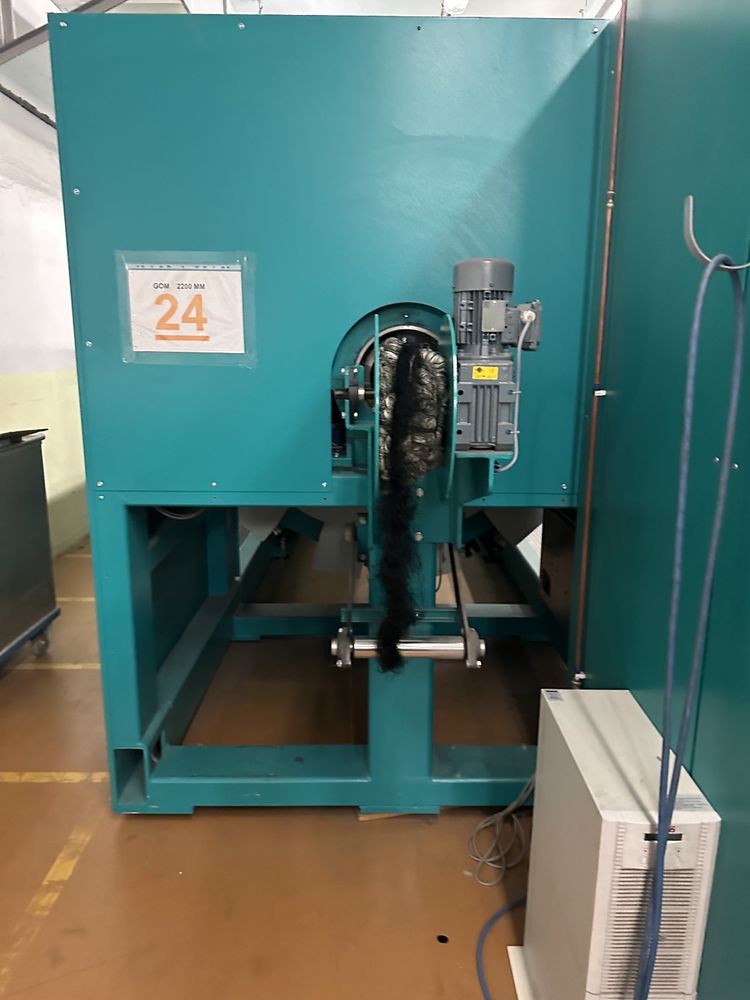

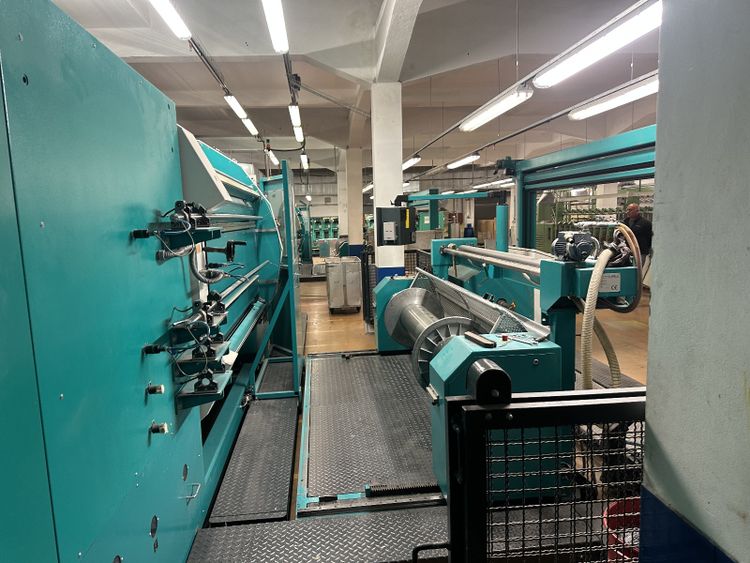

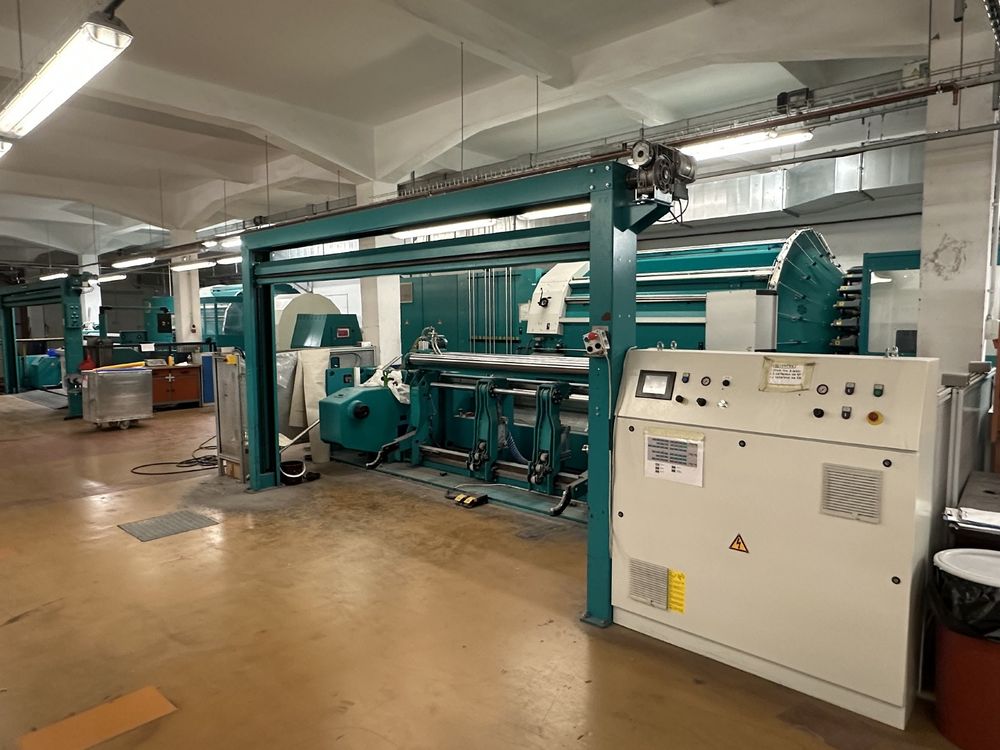

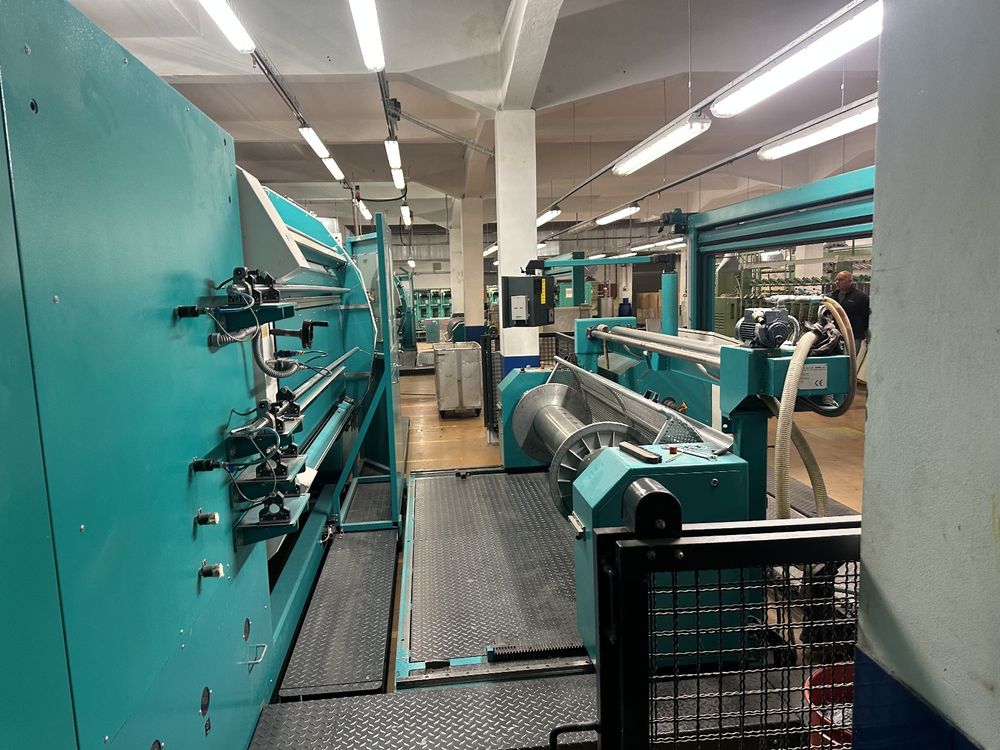

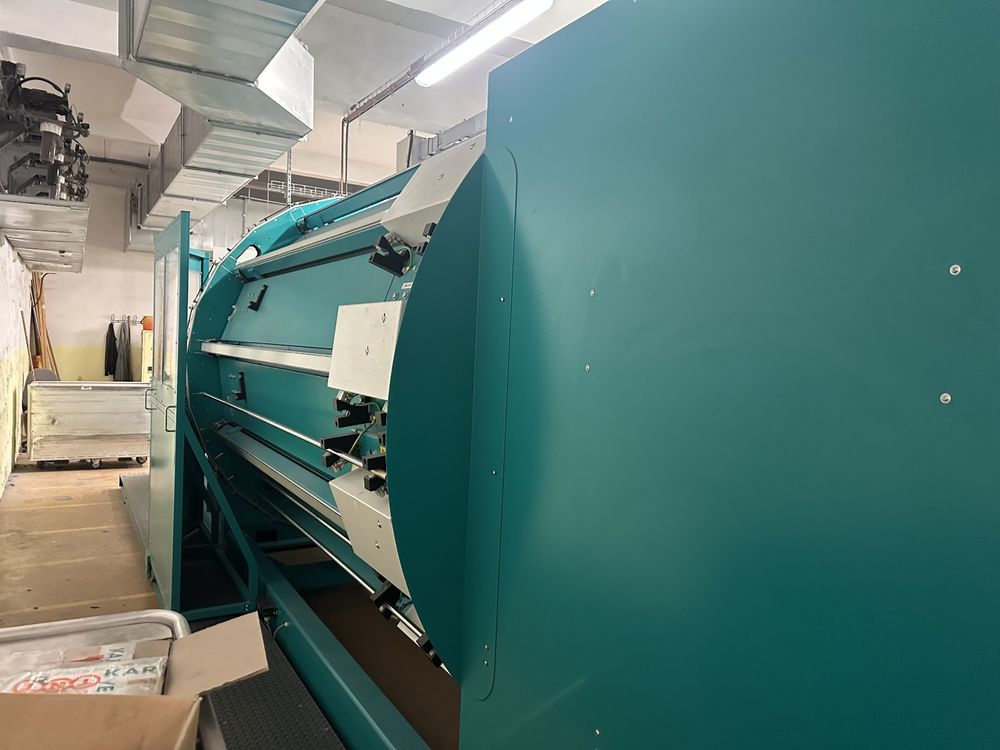

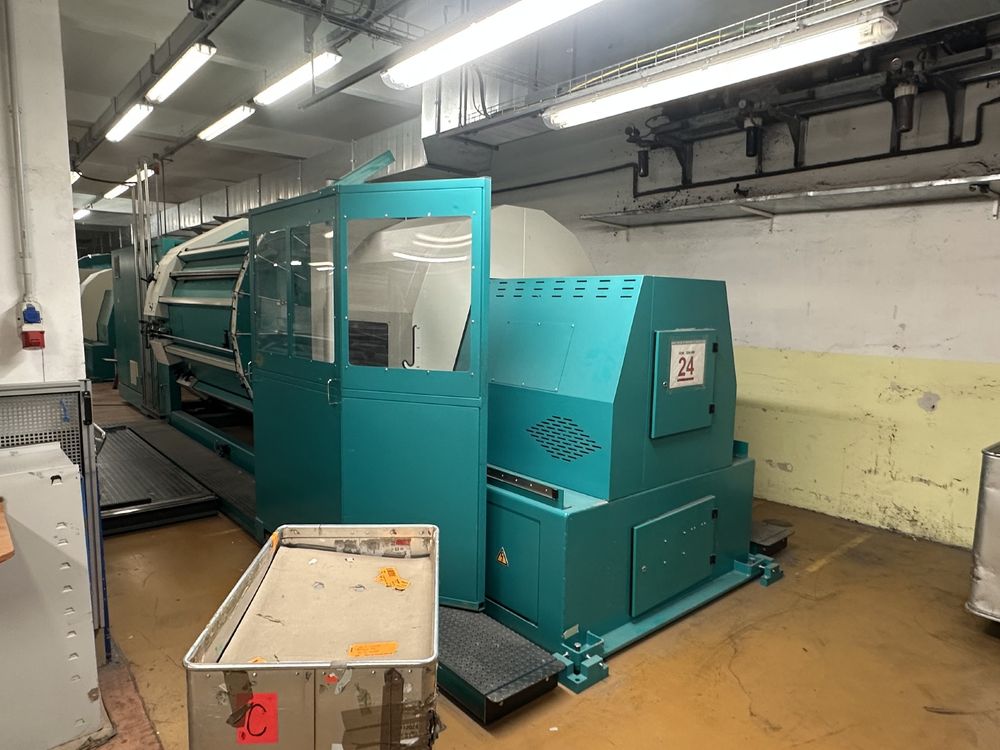

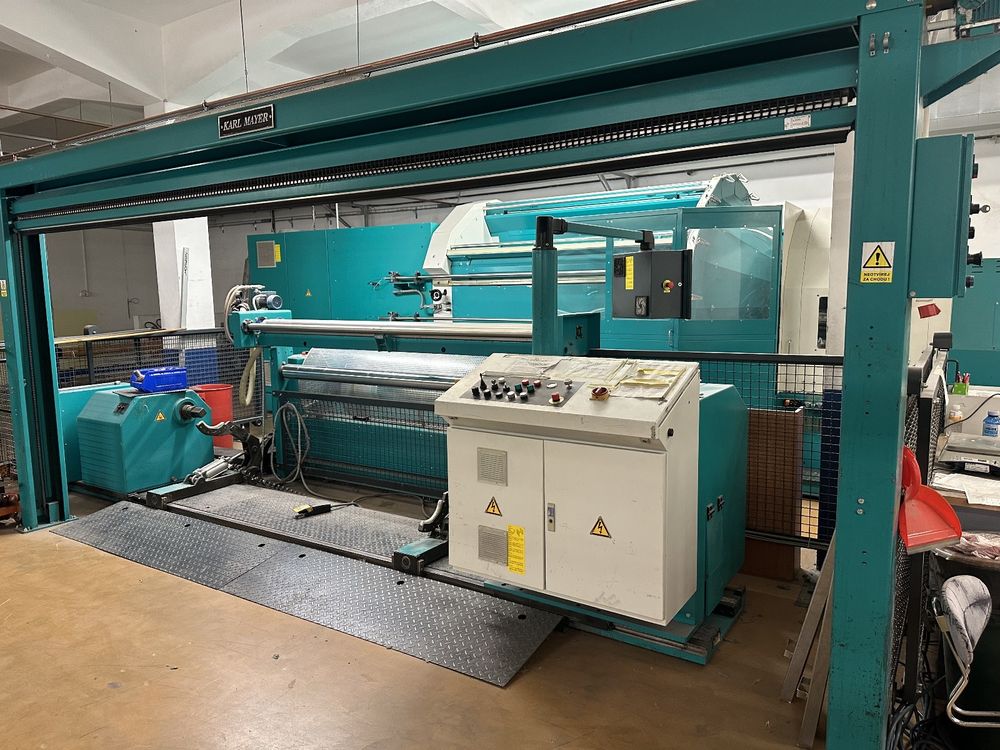

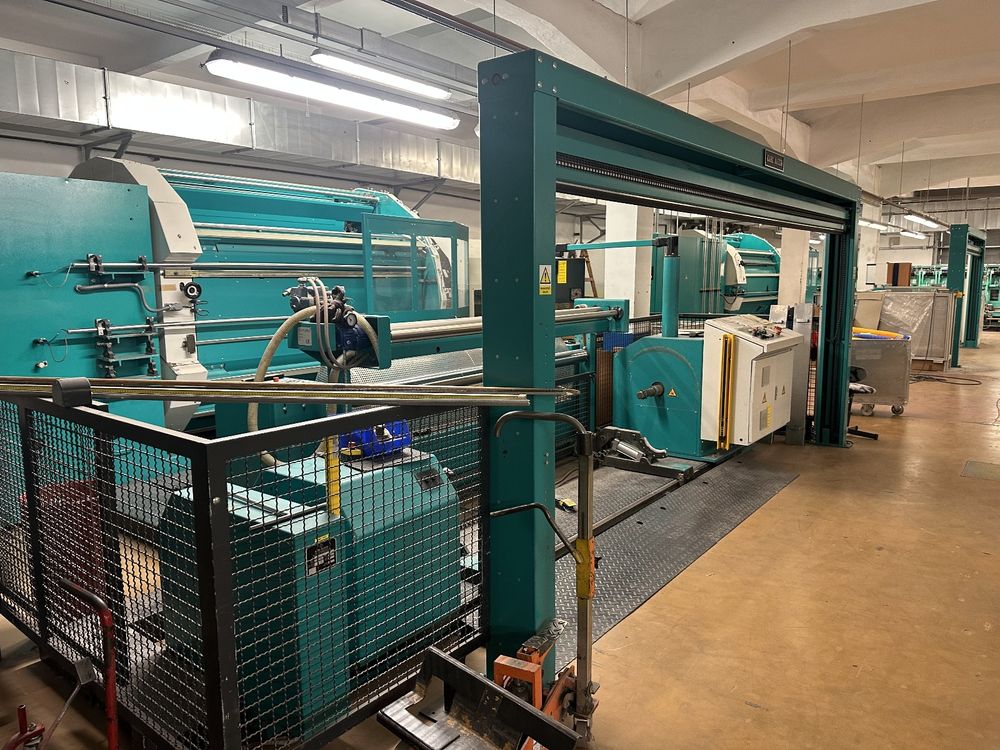

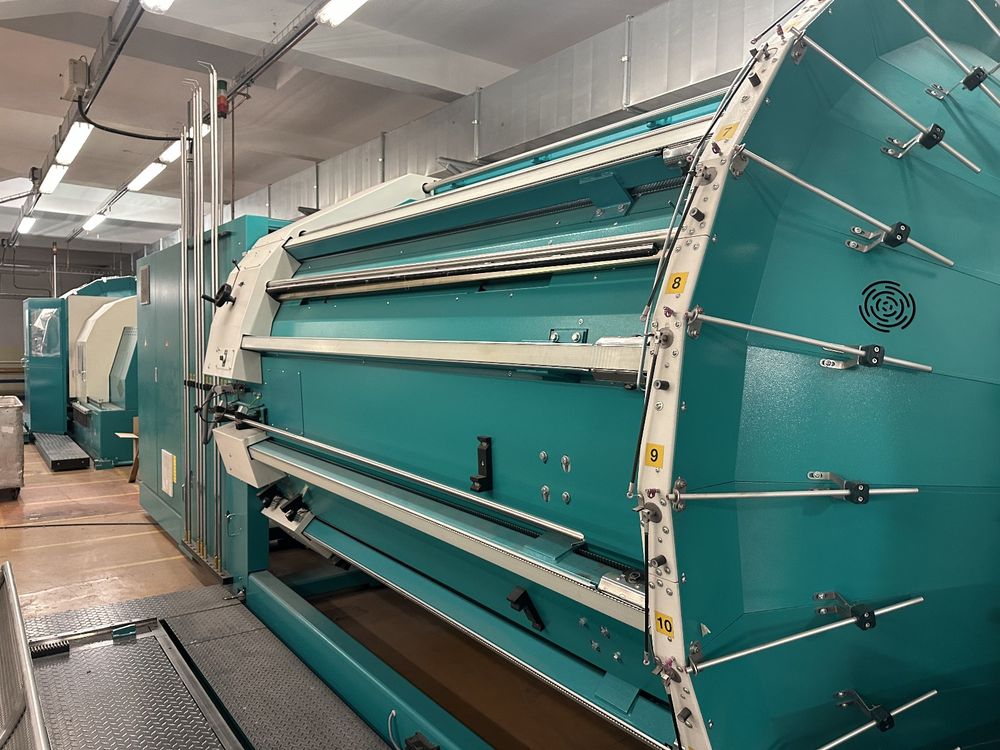

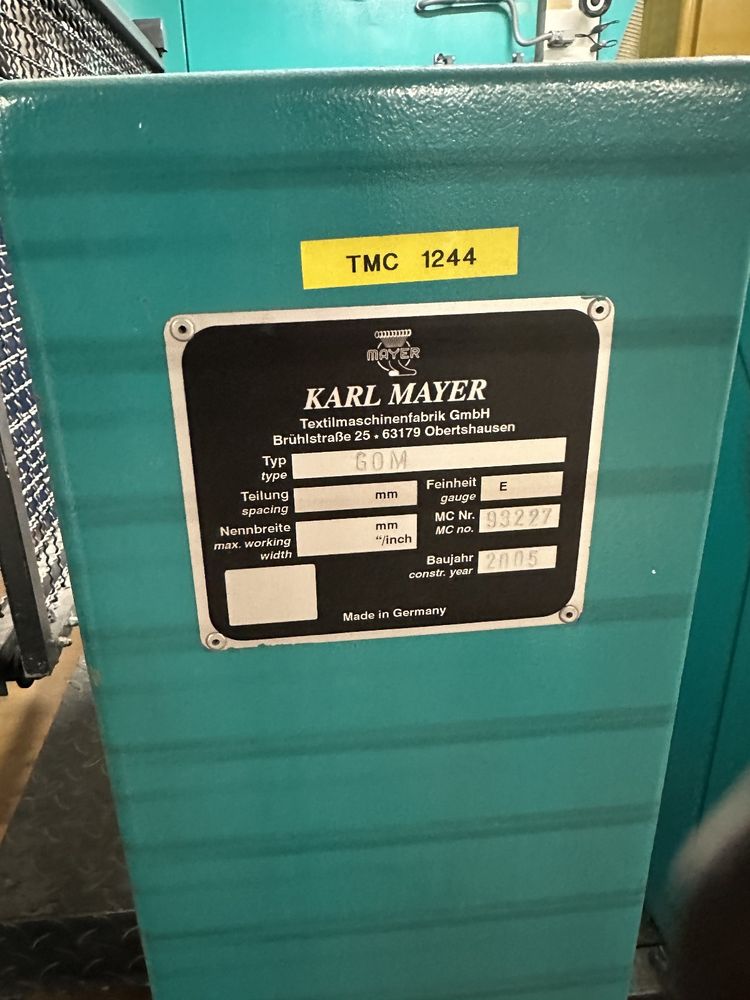

Karl mayer Gir-O-Matic GOM 16
EUROPE (Central and Eastern)

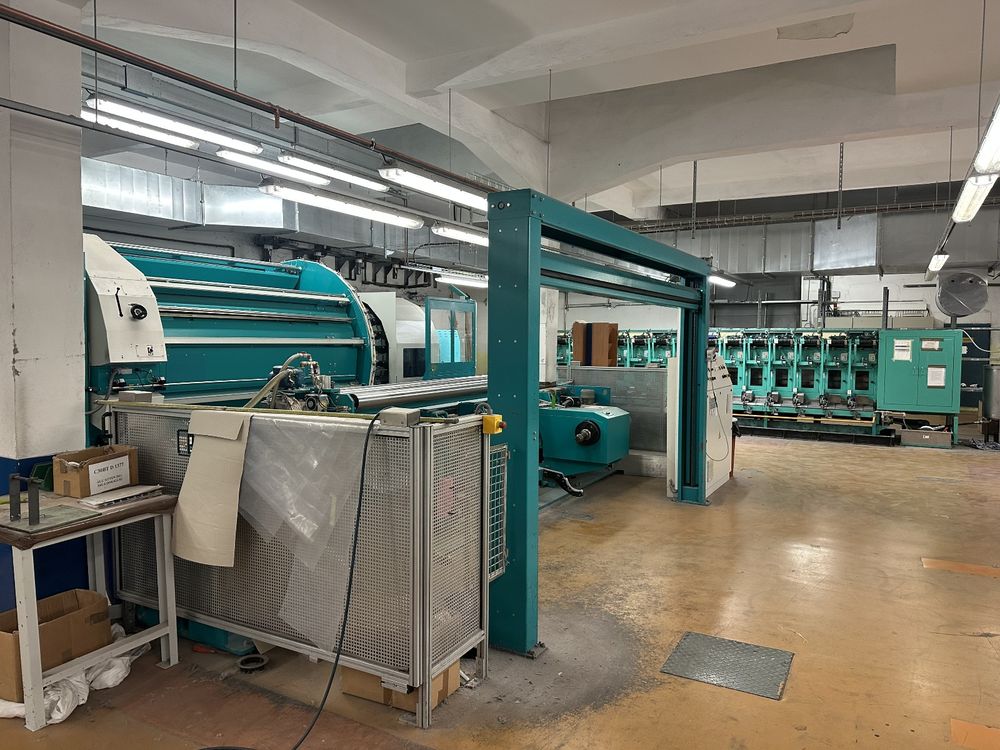

Warp sampling machine for the production of stencils and sample warps
Working width: 2250mm
Max. Beam shaft length incl follower: 2900mm
Max. warp beam diameter: 1000 mm
Warping length 14 - 700 m
i.e. depending on type of material: 5 - 140 ends/cm
Max. layer height: 20mm
Max. warping speed: 1200 m/min.
Colour change speed (circular creel only): max 1000 m/min
Beaming speed: 30 m/min

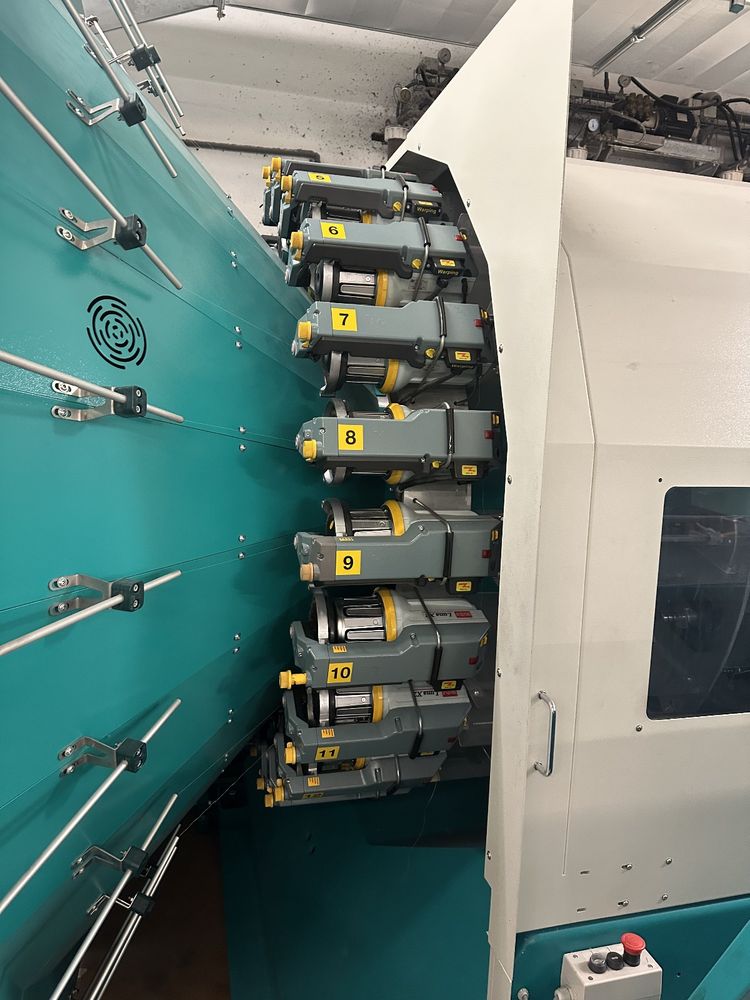

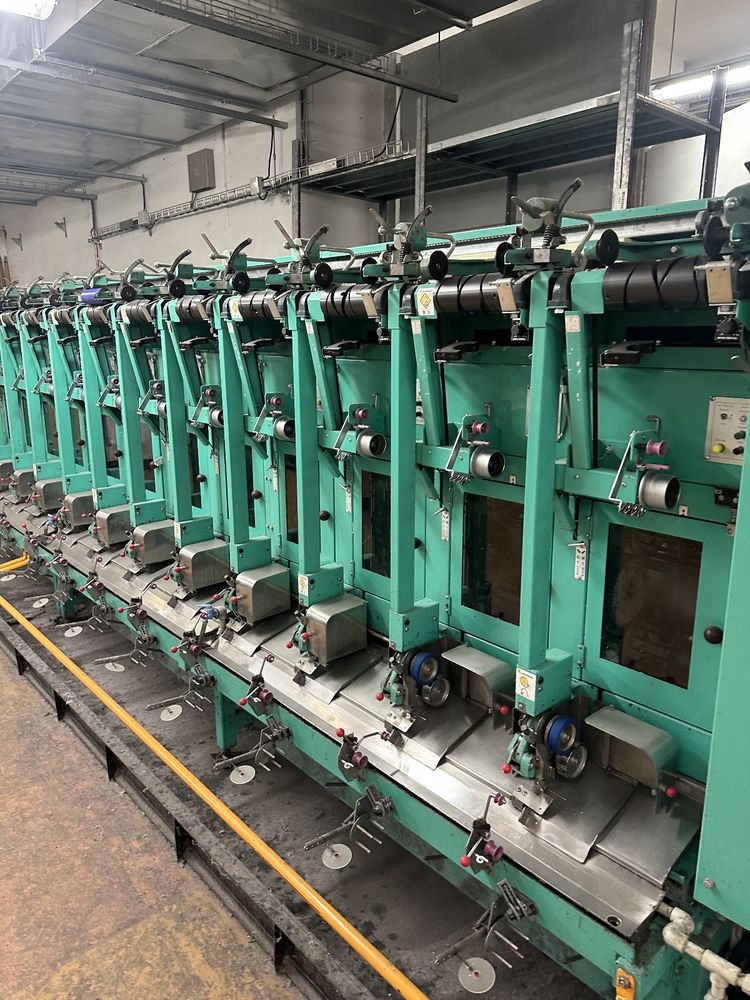

No of winding units: 16 packages
Colour sequence for 16 colors: computer-controlled
Drive of yarn guides / asynchronous motor: 12,5 kW
Drive of yarn conveying belts / asynchronous motor: 2,0 kW
Beaming drive / asynchronous motor: 4,0 kW
Drive of pre-draw-off drum / asynchronous motor: 2,0 kW
Pre-draw-off speed: 60 m/min

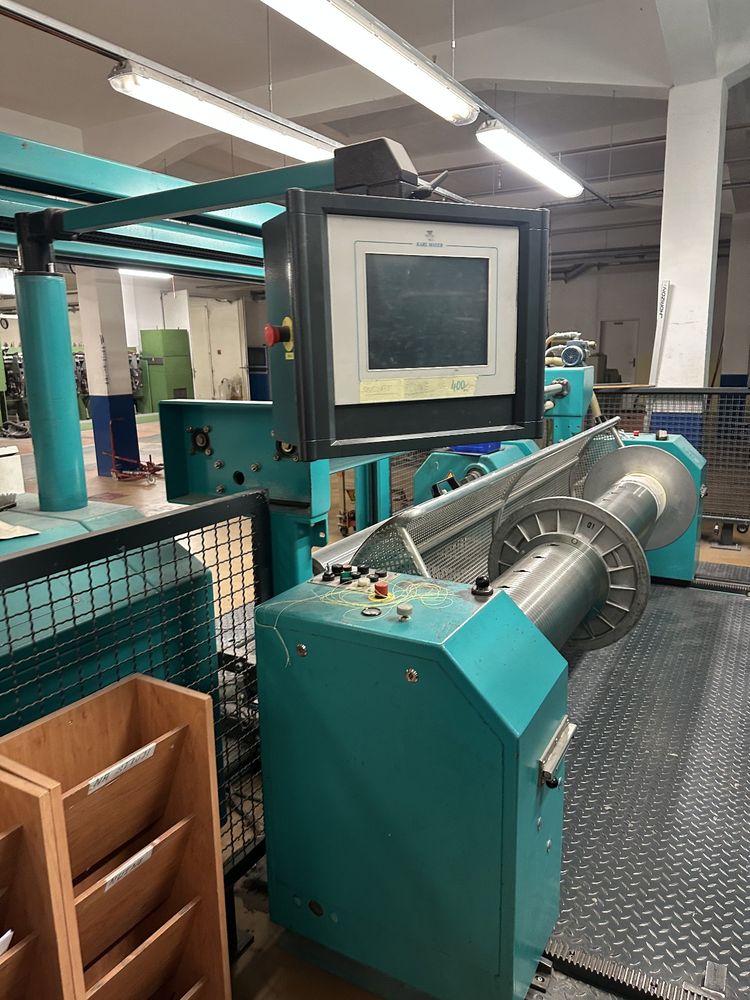

Stored program control : SPS
This machine is equipped with a leasing device in order to separate sized yarns into 7 leasings.
