Karl mayer Warper and tricot machine

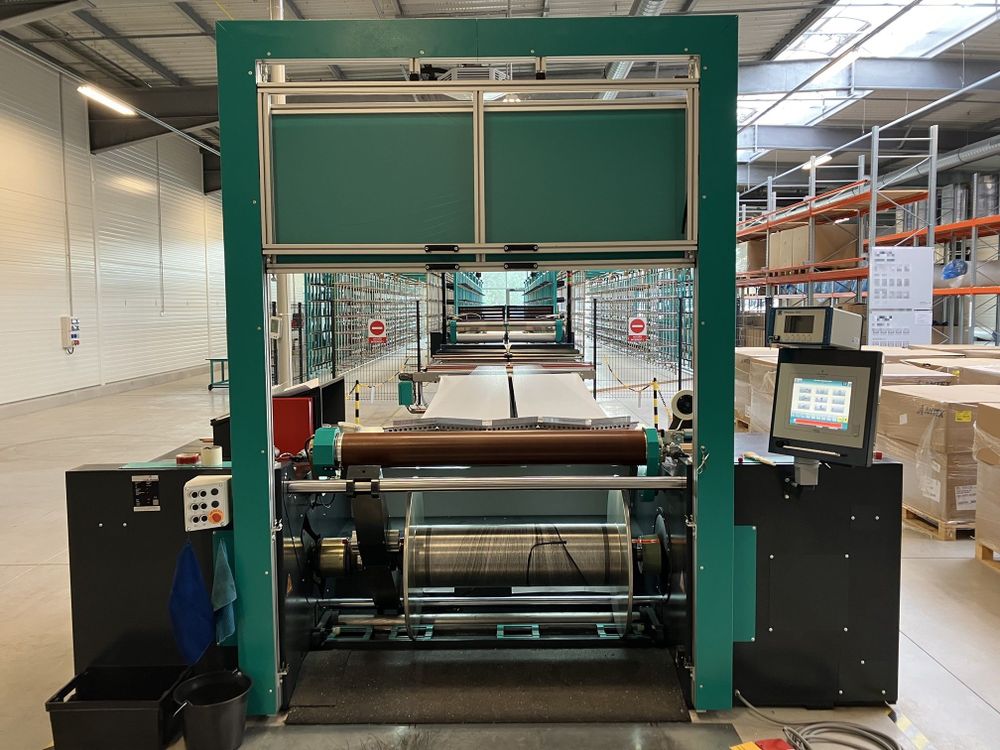

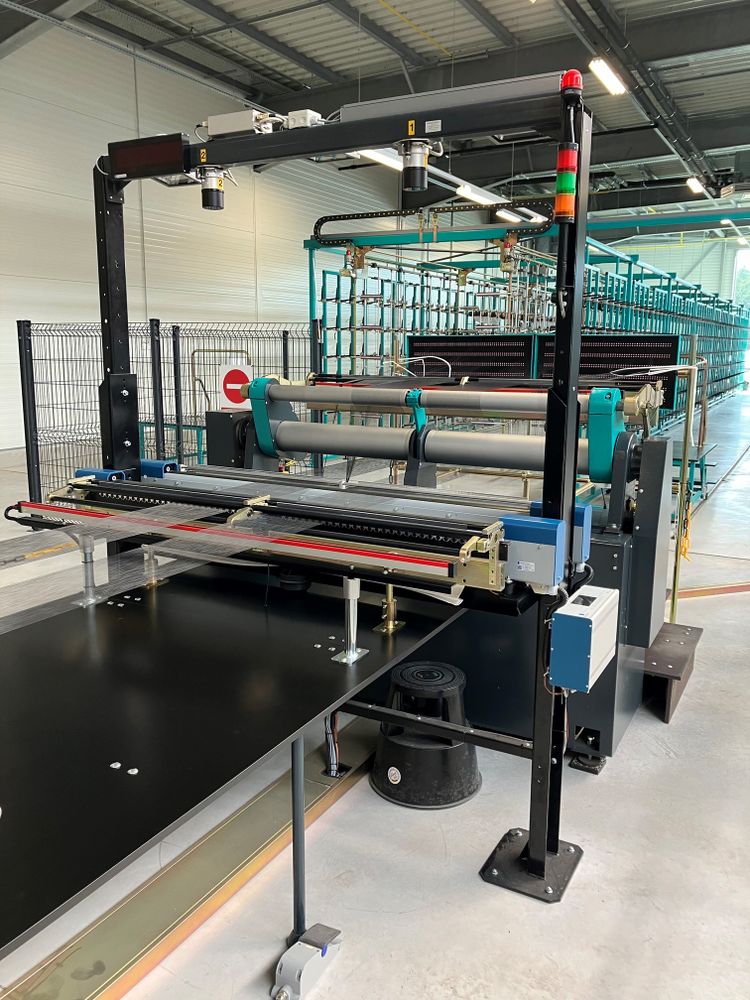

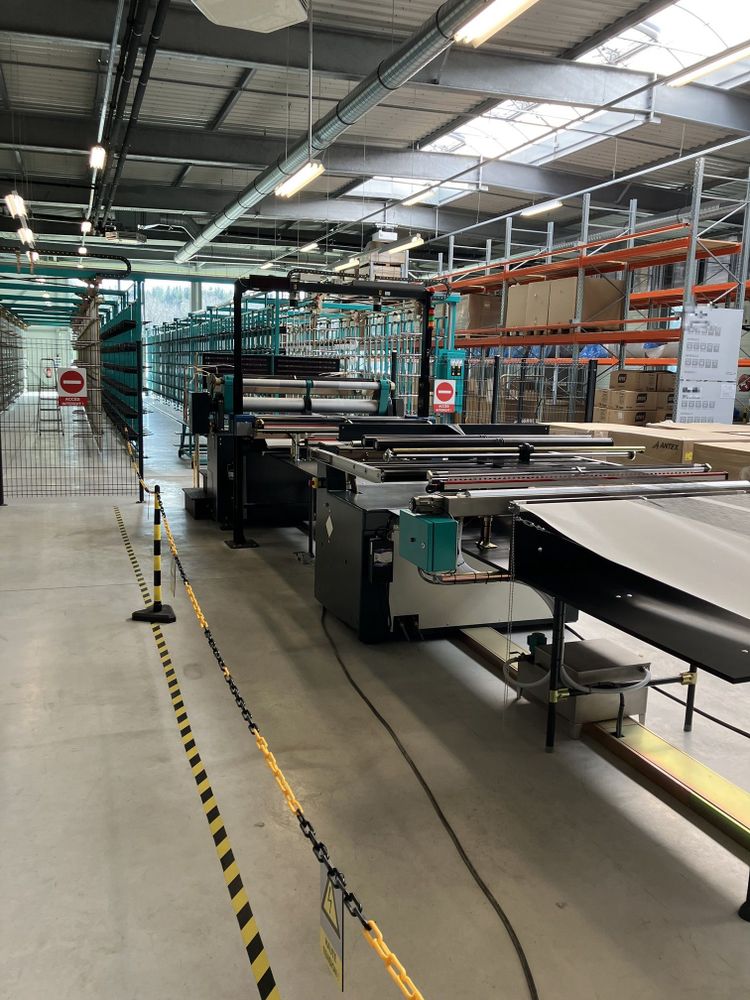

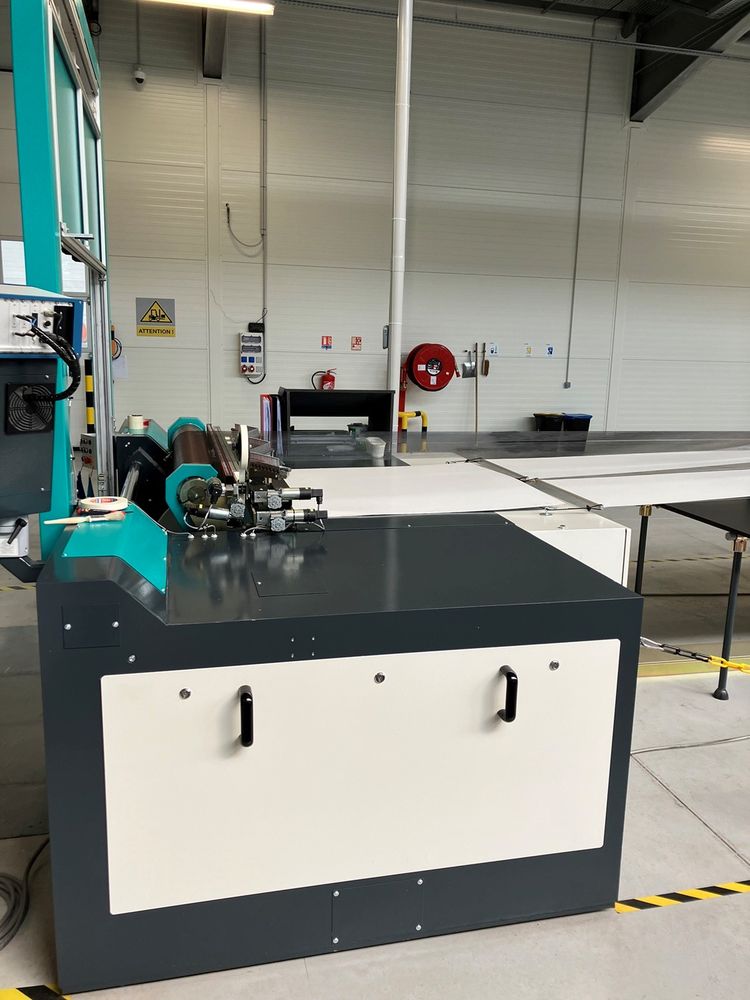

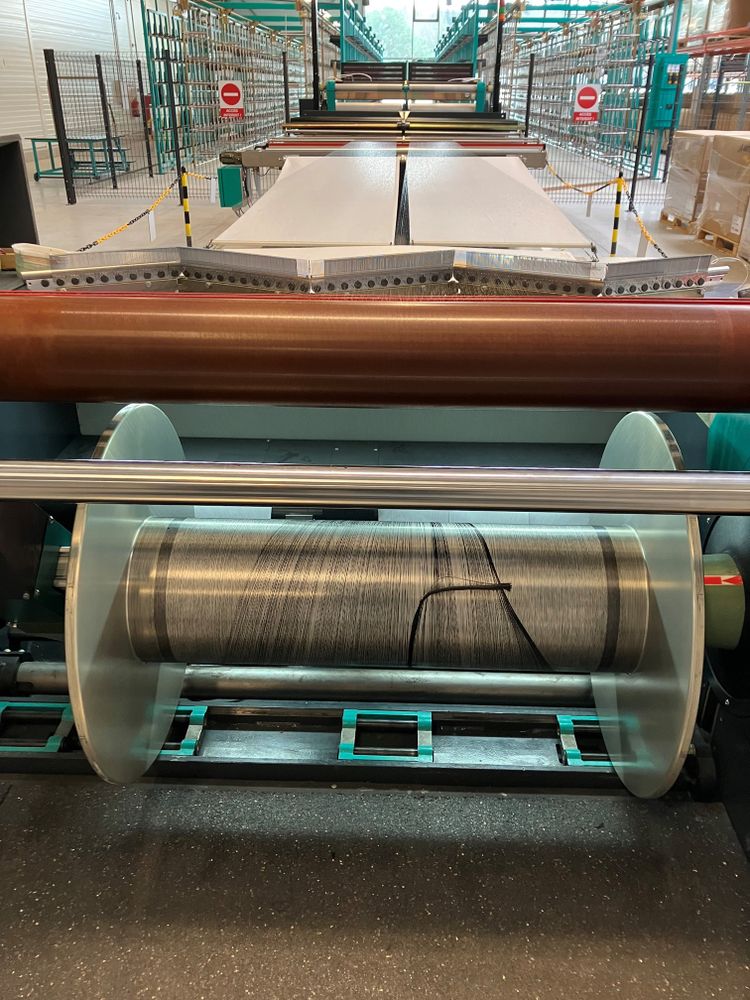

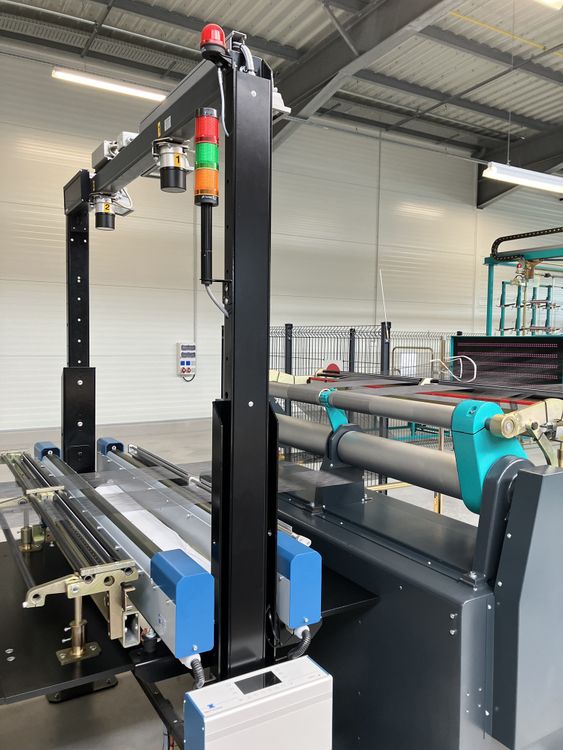

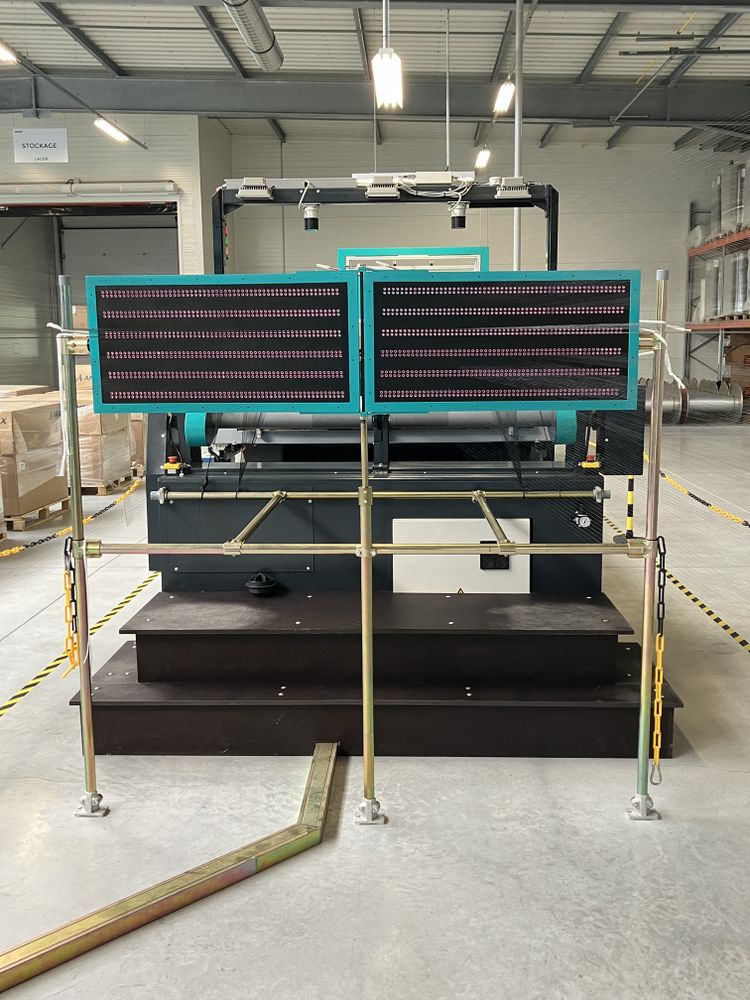

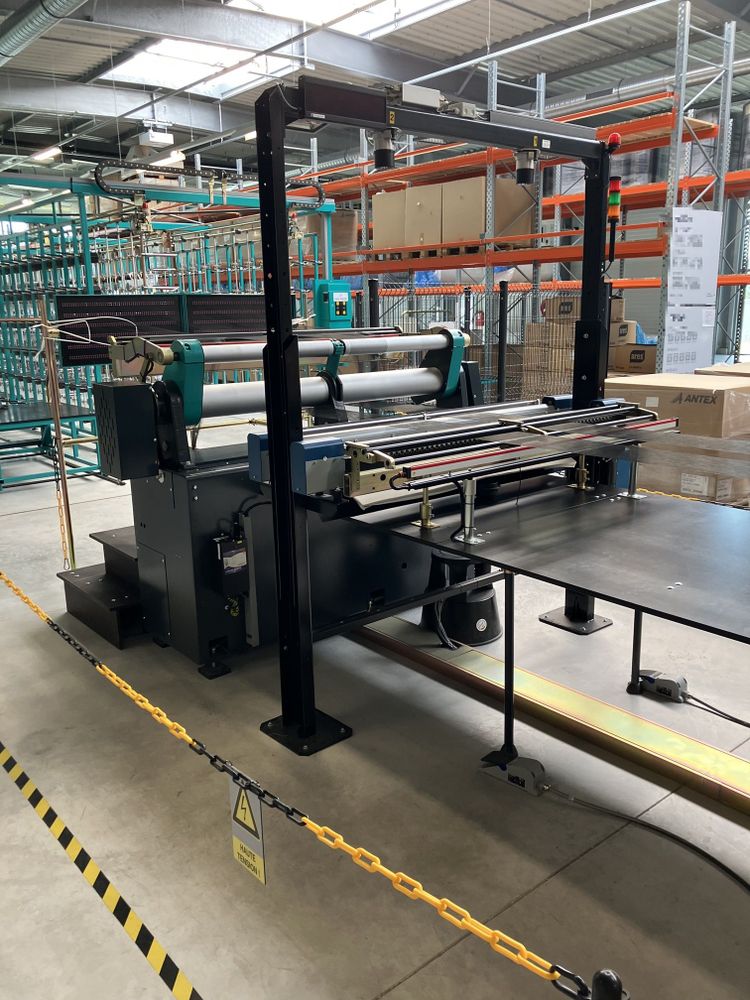

1 KARL MAYER DIRECT WARPER FOR RIGID YARN (FILAMENT)
Type DS 50/32 DNC
Year 2018
Max. Speed 1200 m/min.
Max. Yarn Tension 540 N
Levelling Roller unit, Type WA-III-4Q
Beam Sizes 2 x 21” / 42” / 50”
Automatic Yarn Tension Regulation

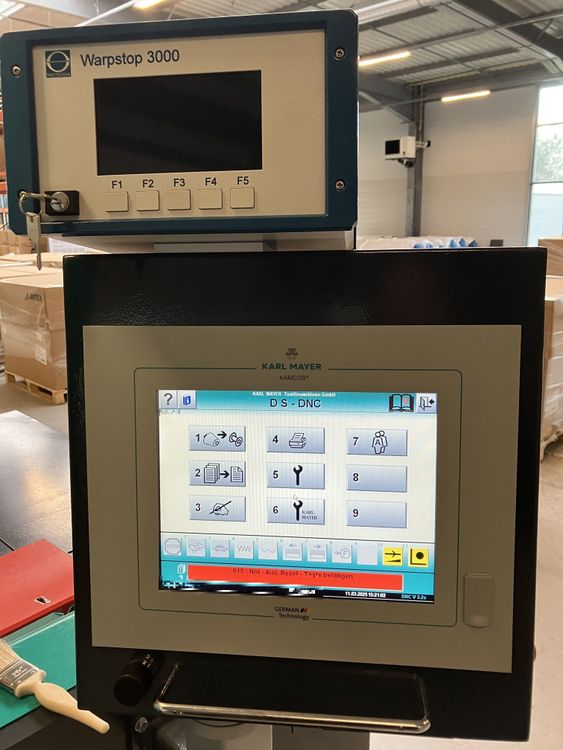

Protechna Yarn Inspector Warpstop Series 3000
IPC Touchscreen operator interface

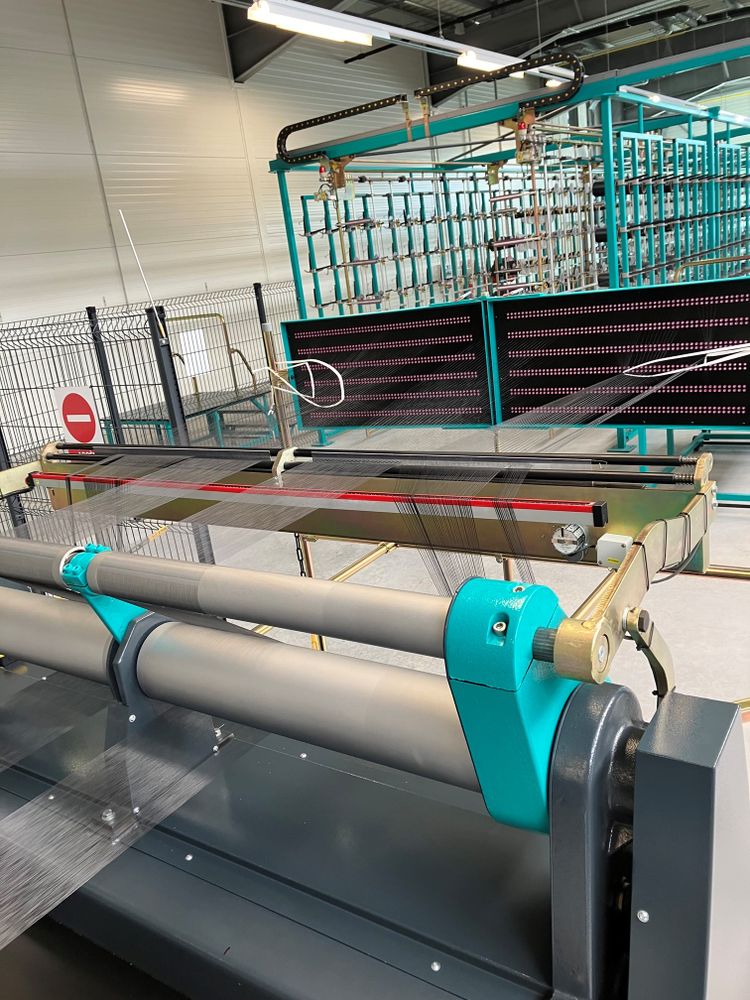

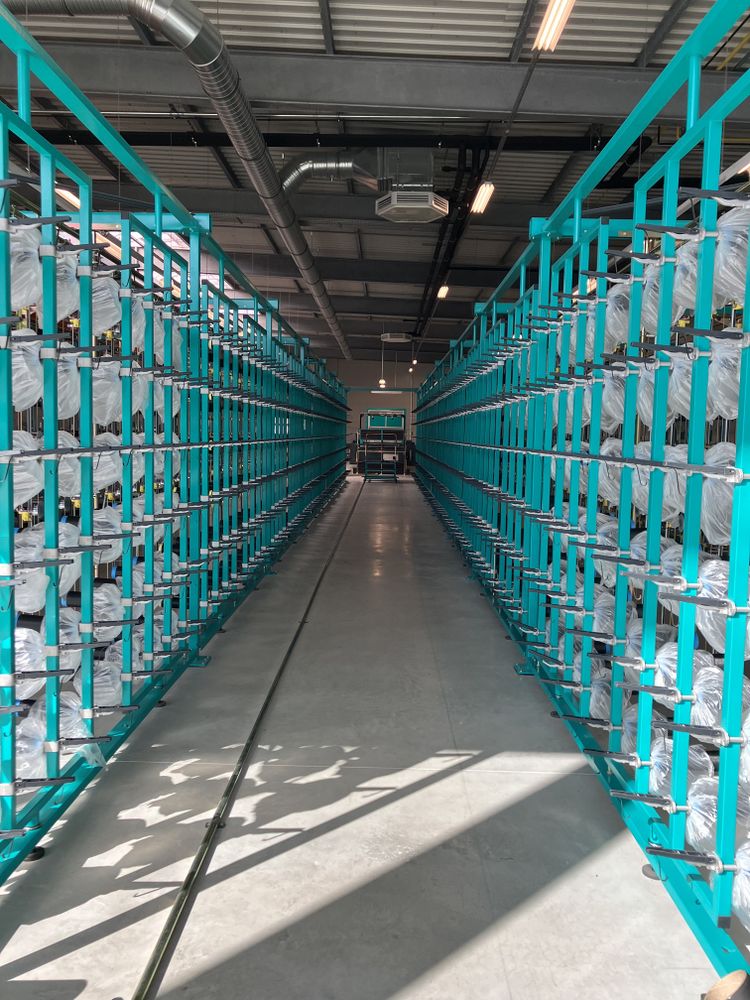

with KARL MAYER Rotating H-Creel
Type GD-2-F-1344-6l-380-380-KSH-KFD-B-K-A
2 x 672 Pos. (Total 1344 Pos.)
Yarn Guiding Eylet Ceramic 4 mm (double sided)
Package holder, Type KSH
Yarn Control A-Device (Central Unit)

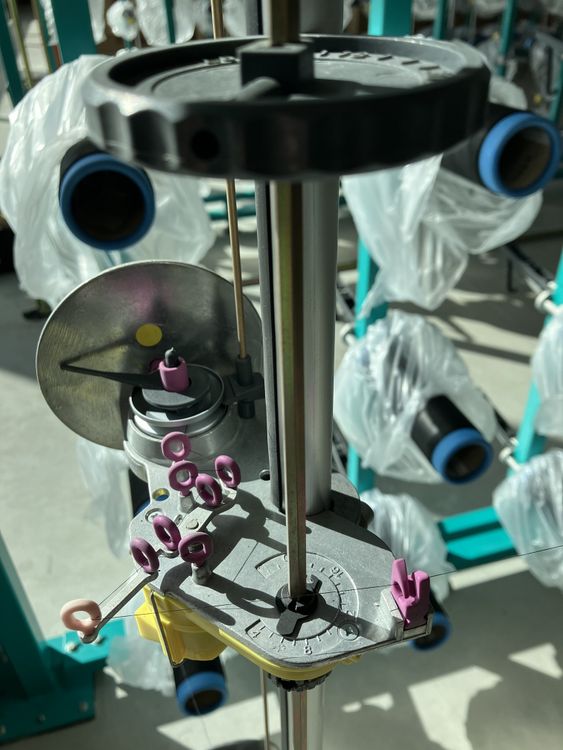

Yarn tensioner, Type KFD-B-6-60 CN
Creel Length 24080 mm

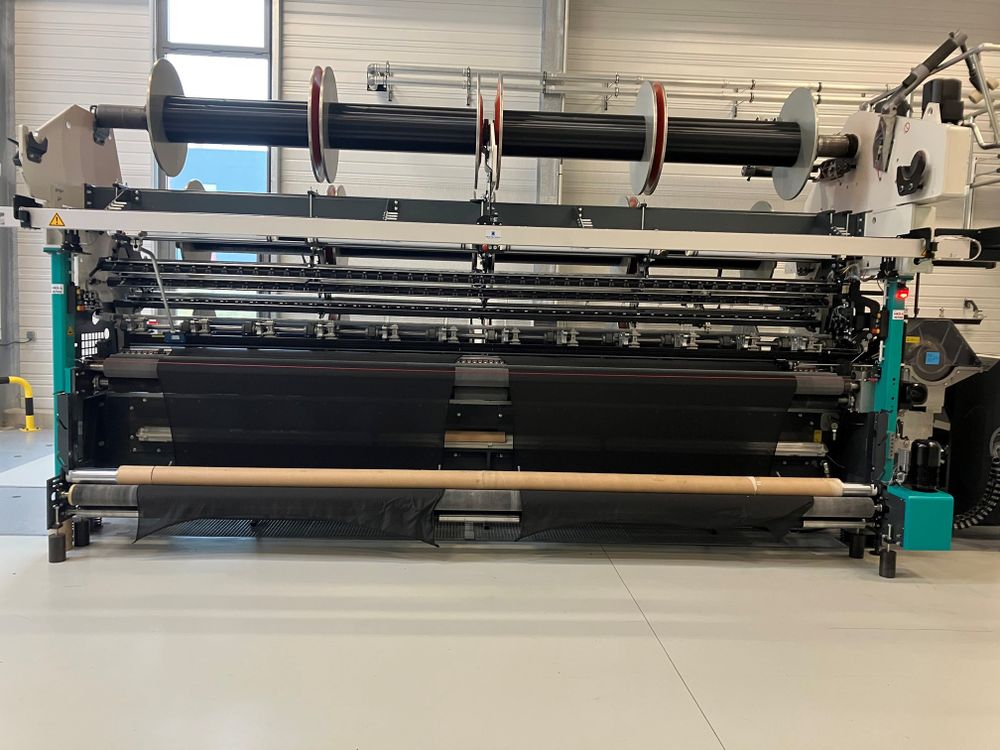

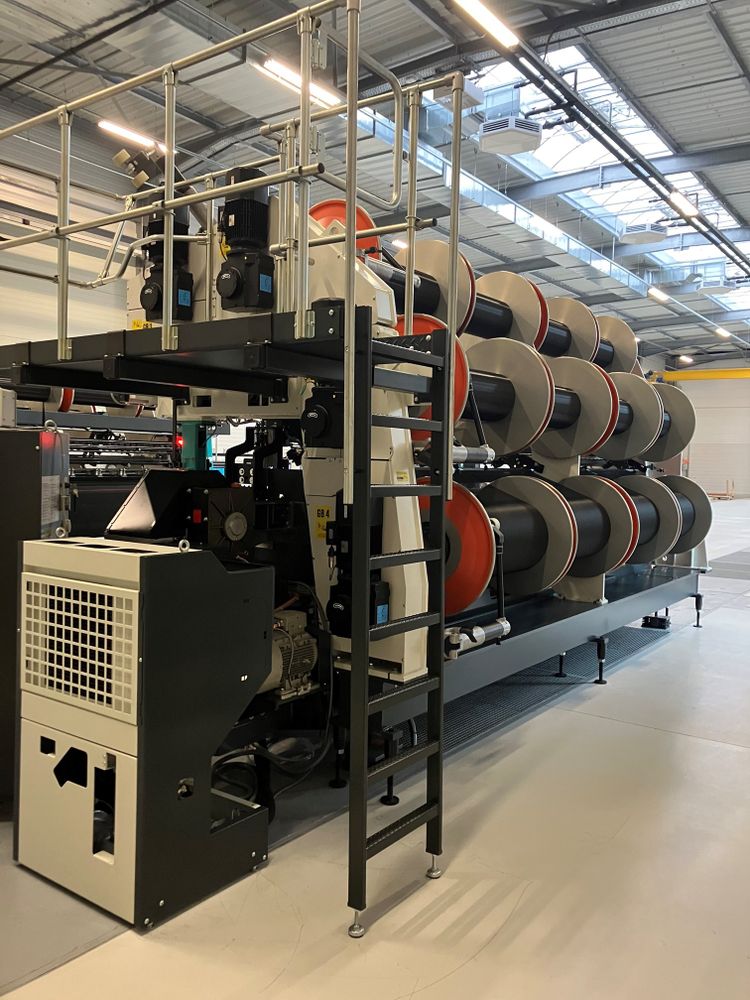

1 KARL MAYER TRICOT KNITTING MACHINE
Type HKS 4-M
Year 2019
Working width 4700 mm (186”)
Gauge E28

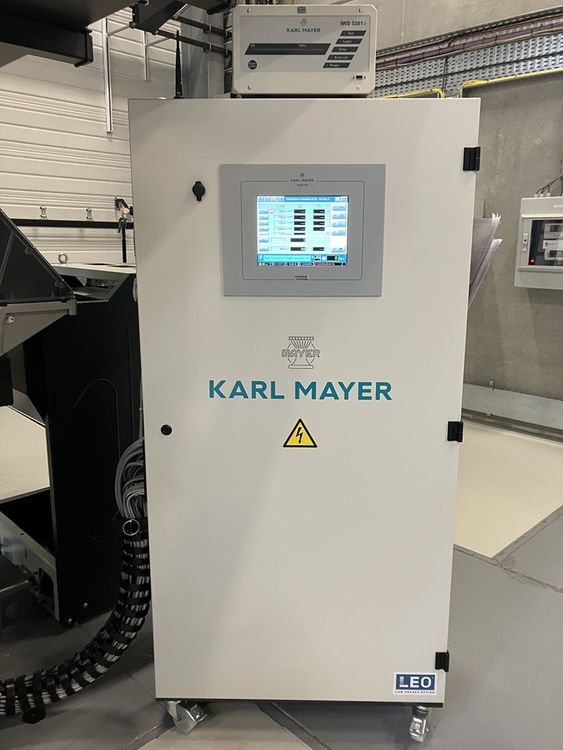

with LEO (LOW ENERGY OPTION)
with KAMCOS (KARL MAYER COMMAND SYSTEM)
4 Individual needle bar with compound needles,
slider bar with plate slider units (½"),
sinker bar with compound sinker units,
all bars are made of carbon-fiber-reinforced plastic

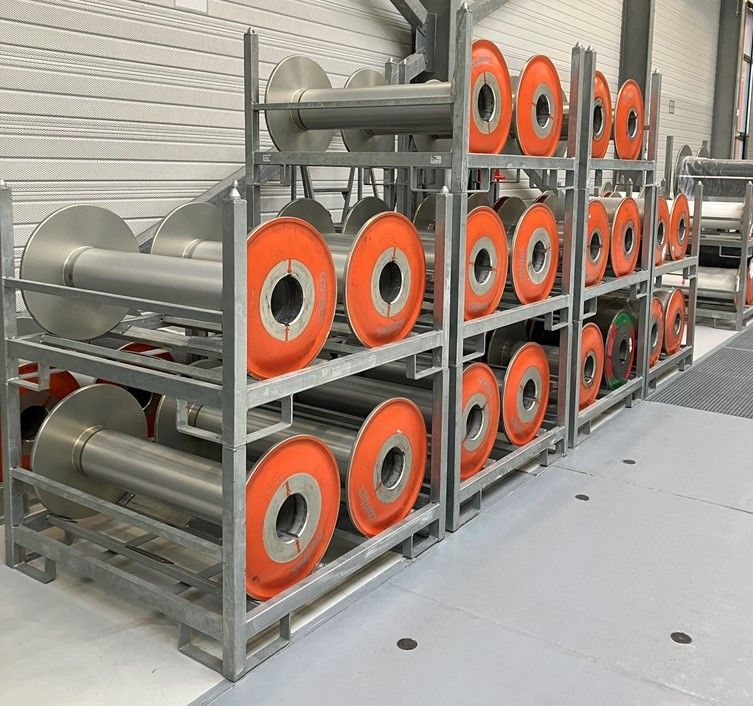

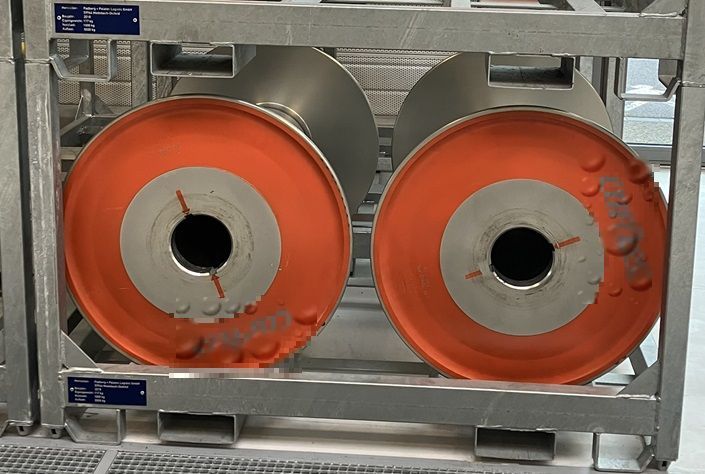

52 ALUCOLOR WARP BEAMS, SIZE 30” x 42”
24 ALUCOLOR WARP BEAMS, SIZE 21” x 42”
26 ALUCOLOR WARP BEAMS, SIZE 21" x 21"
