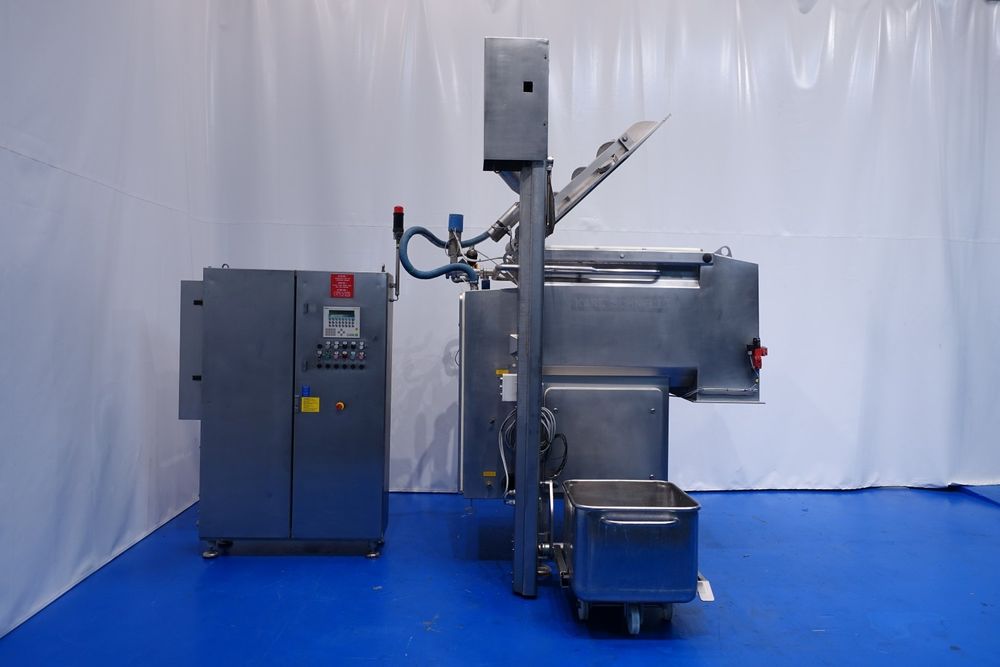

Karl Schnell 740 Vacuum Cooker melter

Ref : 2732978-7-MT

Condition : Used

Manufacturer : Karl Schnell

Model : 740

Short Description : Vacuum Cooker melter

Year(s) : 2002

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Capacity
400 kg/batch
steam injection, 6 x steam injection ports. Max pressure in jacket 2bar water or steam max 3,5 bar, CIP cleanable by 4 x spray bowls. 2 x Motor for ribbons 2x11kw motor. 1 Outlet hatche pneumatic openable. With vacuum system
Water dosing system with flowtransmitter . Closed cover, pneumatic liftable
Ingredient inlets: manual via bins. integrated liquid ring vacuum pump. Separate elevator
lifting bin arm for standard 200ltr trolleys (KS type 602, 1,1kW - max 250 kg)
Control panel with PLC (Siemens S7-300 controls), Freq converters. Display operation panel. Dimensions product room:
100x100x82 (lxwxh) cm
Total dimensions 210x190x323 cm
