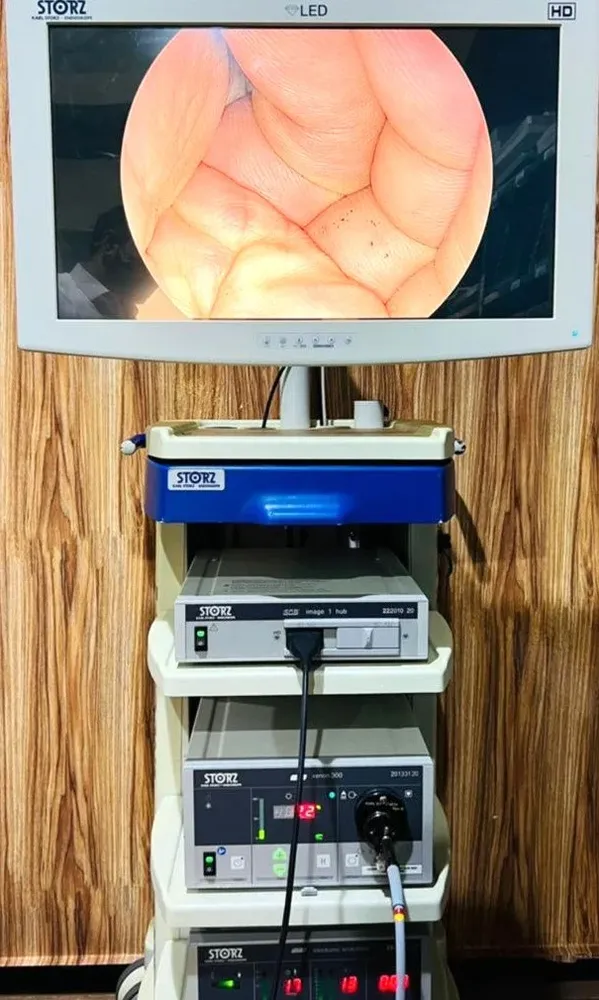

Karl Storz Image 1 Hub HD System

The Karl Storz Image 1 Hub HD Camera System is one of
the most trusted and widely used HD endoscopy systems
in operating rooms worldwide. Designed to deliver superior clarity,
colour accuracy, and workflow efficiency, this system provides full HD
visualization with a powerful combination of advanced optics,
high-performance processing, and integrated documentation tools.

At the heart of the system is the Image 1 Hub HD processor (22201020),
offering 1920 × 1080 resolution, progressive scan output,
and precise colour reproduction.
Paired with the Image 1 H3 Full HD 3-Chip camera head (22220050),
clinicians benefit from exceptional image detail and smooth, lag-free visualization.

The included Xenon 300 light source ensures bright,
high-intensity illumination suitable for all rigid and flexible endoscopy applications.
The AIDA Control NEO HD documentation unit provides seamless digital storage
of images and videos, while the SCB Endoflator enables controlled
and reliable insufflation during laparoscopic procedures.

With a 24′′ WideView HD monitor, a touch screen LCD control monitor,
and a complete Karl Storz trolley system, this package forms a robust,
integrated endoscopy workstation ready for clinical use.

This system is supplied in very good cosmetic and functional condition,
fully tested and ready for deployment.

Image 1 Hub HD Processor Features
Full HD 1080p imaging (1920 × 1080)
Progressive scan, lag-free live video
Natural color reproduction
Compatible with all Image 1 HD & SD camera heads
USB ports front & rear for documentation and printing
Integrated AIDA HD recording and storage

Xenon 300 Light Source Features
Powerful, high-intensity Xenon illumination
Reliable performance for rigid and flexible endoscopy

System & Workflow Features
WideView HD 24′′ monitor for superior visualization
Touchscreen control panel for workflow efficiency
Storz trolley for complete workstation setup
SCB connectivity for full OR integration

What’s Included (Complete System Contents)
Main Units
Karl Storz Image 1 Hub HD Processor (22201020)
Image 1 H3 Full HD 3-Chip Camera Head + Coupler (22220050)
SCB Xenon 300 Light Source (20133120)
AIDA Control NEO – HD Documentation (20046120)
SCB Endoflator (26430520)
24′′ WideView HD LCD Monitor (9524NB)
Touch LCD Monitor (20240331)
Storz Trolley VC-2010

Accessories Included
SDI video cable
DVI video cable
Medical-grade power cable
All necessary interconnect cables
User manual
