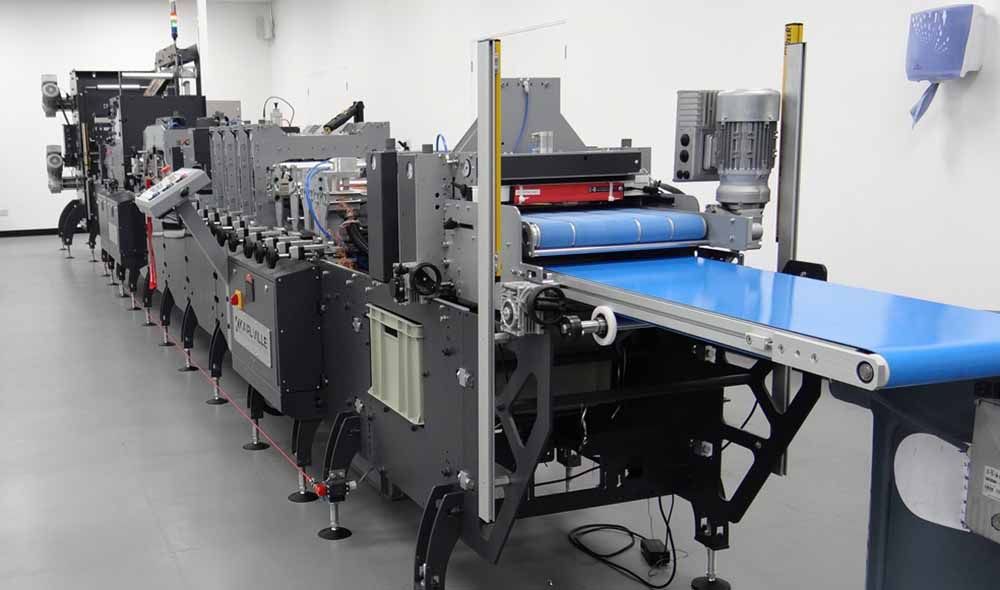

Karlville KV-DSUP-400 Pouch machine

16-inch used pouch machine
Top + bottom unwinders with pneumatic clamping, servo-driven draw
1nip, sealing and cooling stations
Bottom gusset folding and zipper unwinder
Flying knife cutting system with anti-static bar
Eye-mark sensor and ultrasonic edge guide
Conveyor exit system, tear notch, euro hole & tack-hole punches
Doy style and straight sealing dies, zipper sealing and cooling dies
Multiple cross sealing dies and silicon holders
Second longitudinal station – smaller zipper pouches and separate skirt seal for multi web pouches
Additional cross seal station for running mono materials, double cut function
Additional trim rewinder, mono gusset separator, additional punch bridge, ultrasonic zipper crush station, vacuum punch waste removal, gusset folding upgrade, and chiller

Supports a wide variety of pouch formats including:
3-side-seal pouches (from 1 or 2 webs), stand-up pouches (from 1 or 3 webs)
2-side-seal pouches (from folded web) with or without zippers – folded gussets
Max pouch width: 400mm
Max pouch height: 400mm
Gusset depth range: 15–65mm

Machine Specifications:
Max mechanical speed: 200 cpm
Production speed: ~130 cpm (material dependent)
Max material width: 420mm
Material range: PET, ALU, PE laminated with PP or PE
Material thickness: 55–200 microns
