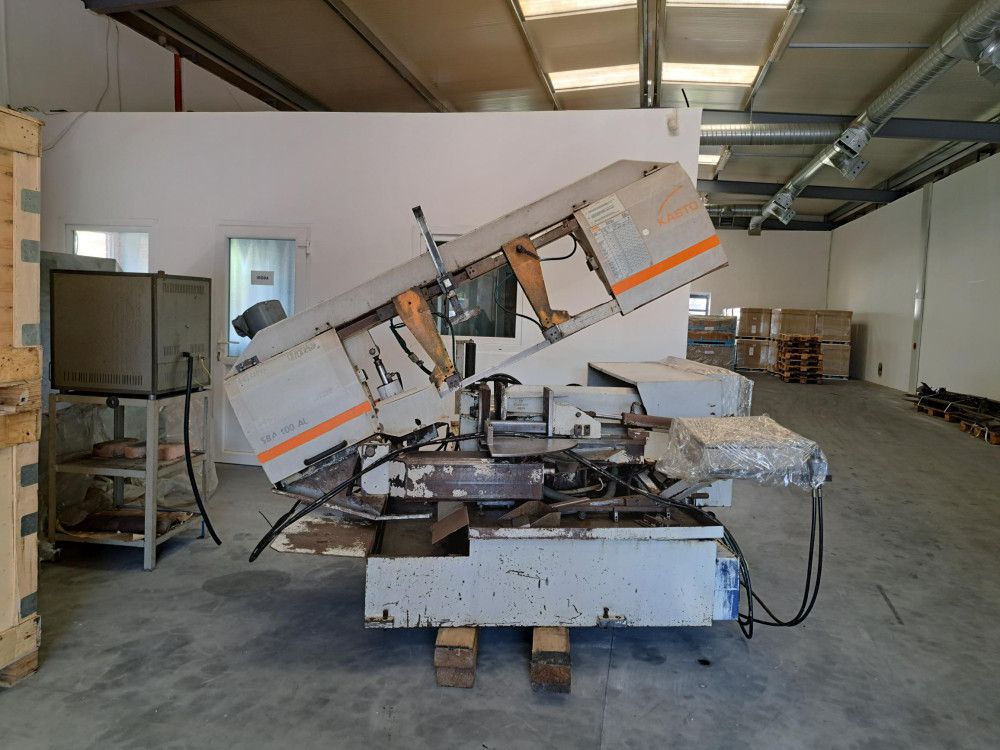

Kasto SBA 400 AU-G Band saw Semiautomatic

length 2570 mm (102")
width 2520 mm (100")
max. height 2110 mm (83")
min. height 1370 mm (54")
total weight 1850 kg (4080 lbs)
total power 5.0 kW (6.7 HP)
saw motor 2.2 kW (2.9 HP)

cutting range
cutting angle
- 0°
- +45°
- +60°

round section ø
- 400 mm (15.7")
- 320 mm (12.6")
- 240 mm (9.4")

rectangular section w x h
- 400 x 320 mm (15.7 x 12.6")
- 320 x 320 mm (12.6 x 12.6")
- 220 x 220 mm (8.6 x 8.6")

smallest possible diameter ø10 mm (0.4")
minimum cutting length 6 mm (0.24")
min. residual length, single cut 30 mm (1.2")
min. residual length, automatic mode 240 mm (9.5")
automatic material feeding - single feeding 590 mm
automatic multiple feeding 9999 mm
maximum material weight 400 kg/m (270 lb/")
cutting speed infinitely variable 17-90 m/min
cutting speed infinitely variable 17-90 m/min
cutting feed infinitely variable

material clamping
adjustable between 20 and 60 bar
adjustable between 20 and 60 bar
saw blade dimensions 5090 x 34 x 1.1 mm (200.4" x 1.34" x 0.04")
saw blade guide carbide, replaceable
saw blade tensioning mechanically, with clamping handle
saw blade cleaning via easily replaceable wire brush, driven depending on the main drive
cooling
via 2 coolant nozzles
coolant tank capacity approx. 601 (16 US gallons)
pump capacity approx. 16 l/min (4 US gallons/min)
