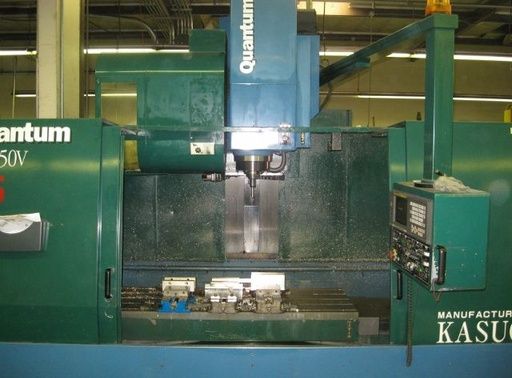

Kasuga QUANTUM Q-1250V 3 Axis

KASUGA QUANTUM Q-1250V

Table dimensions: 63" x 23.6"
Table load capacity: 3,300 lbs
X-axis travel: 50"
Y-axis travel: 25"
Z-axis travel: 25.6"
Spindle center to column: 27.5"
Spindle nose to table: 6.3" - 31.9"
Spindle speed: 6000 rpm
Spindle motor: 25 HP
Spindle taper: CT50
Rapid traverse (X, Y): 787 IPM
Rapid traverse (Z): 590 IPM
Cutting feedrate: 393 IPM
Tool changer capacity: 30 ATC
Max tool weight: 33 lbs
Max tool length: 11.8"
Max tool diameter: 4.9"
Ball screw diameter: 1.57"
Machine weight: 21,000 lbs
Machine width: 190"
Machine height: 114"
Machine length: 109"
Fanuc 18M CNC control
Rigid tapping
Side mount tool changer
#50 taper
Chip conveyor
All available manuals
