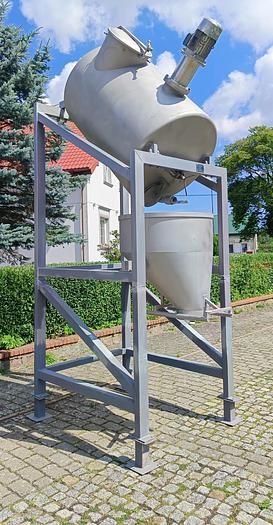

KATES Churn

800 l working capacity

Overall dimensions:
Width – 1,350 mm;
Depth – 1,800 mm;
Height – 3,900 mm.

Technical specifications:
Total tank capacity – 1,300 l
Working tank capacity – 800 l,
Tank internal diameter – 1,000 mm;
Tank working shell length – 1,250 mm;
Total tank length – 1,330 mm;
Equipped with two agitators:

Main agitator – scraper agitator – located in the mixer axis;
Drive – gear motor – 3 kW – 28 rpm;
Propeller agitator – located transversely to the mixer axis;
- Drive – geared motor – 1.5 kW – 920 rpm;
Mounted on a frame at a 45° angle;
Upper manhole – Ø 440 mm;
Bottom discharge – Ø 220 mm;
A 500 l intermediate tank, equipped with a discharge valve, is mounted on a shared frame;
Intermediate tank discharge – Ø 270 mm;
Tank and working parts – stainless steel.
