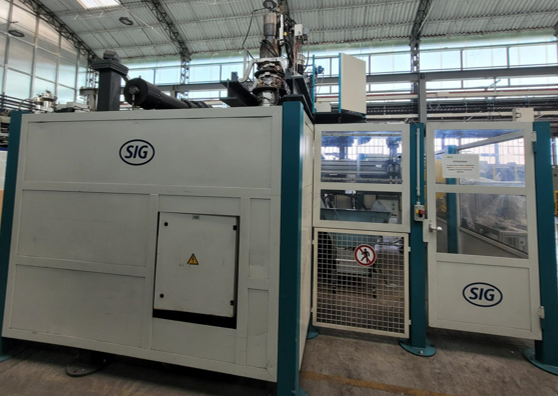

Kautex KBSH 2-60

Year of costruction 2004
Working hours 48.930 h

Dimensions mould holder plat
Width 900 mm
Lenght 1.200 mm

Dimension mould
Width maximum 900 mm
Thickness mould minimum 625 mm
Height mould maximum 1.700 mm
Weight mould maximum 4.000 kg

General dimensions of the machina
Lenght 7.750 mm
Width (without control cabinet) 4.400 mm
Height 5.500 mm
Wiant control cabinet (for free position) 2.400 mm

Tonnage 60 Ton
Tool min. thickness 625 cm
Clamping unit max opening 1.450 mm
Column passage 900x1200 mm

Extrusion Line
Cylinder number 1
Screw 100 mm
L/D 25
Electric motor power 81 kW
Heating power (380/415 V) 18/21,6 kW
Turbofan power 0,72 kW
Nº controlled temp. zones 3
Cooling water connection R1/2 in
Ap Cooling water 4 bar
Cooling water 5-6 C°
Extruder weight (whit motor) 2.500 kg
Filling oil gearbox 701
Dil gearbox type CLP ISO VG 320

Accumulation head - BFKS 6,3
Theoretical quantity of ejected material @100 l/min with HDPE 1,28 kg/s
Piston stroke 220 mm
Refueling weight with HDPE 4,7 kg

Small
min. 50 mm
max. 220 mm

Big
min. 85 mm
max. 300 mm

Thermoregulation zone 4
Total heigh 2021 mm
Weight 1.040 kg
