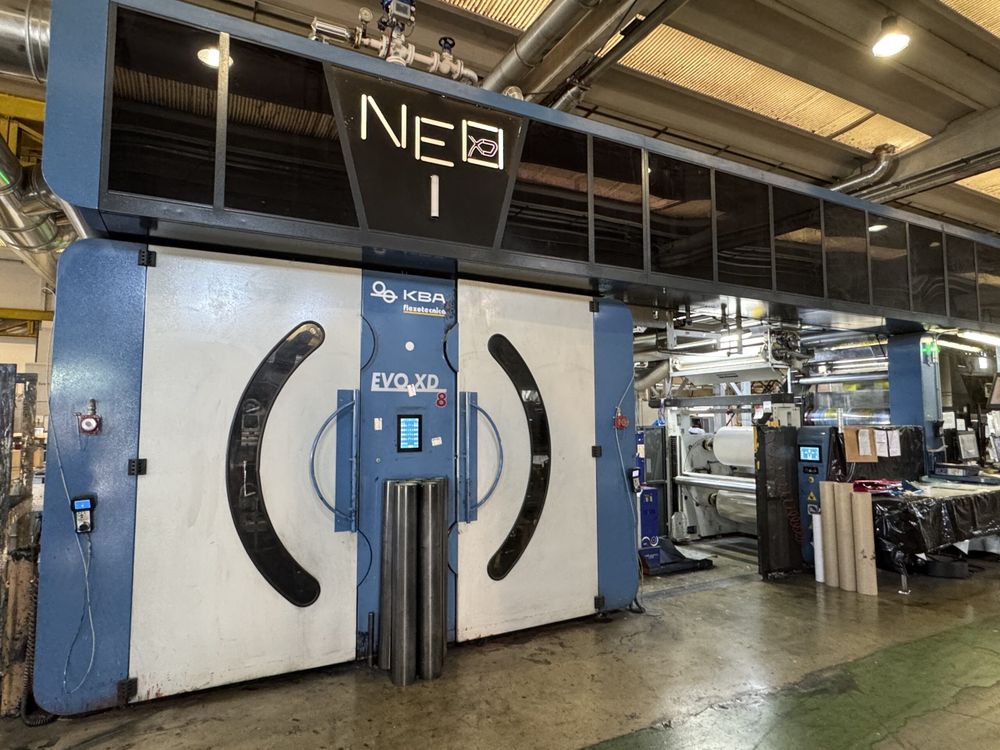

KBA EVO XD 8 1270 mm

1.04 Colors (nr) and Type 8 Colors
1.05 Gearless Yes
1.06 Print width (mm) 1270 mm
1.07 Material passage (mm) 1320 mm
1.08 Print development min. – max. (mm) 370 - 1070 mm
1.09 Mechanical speed (m/min) 500 m / min
1.10 Material type (kg) Paper and plastic films
Electrical power: 3 x 400 V, 50 Hz.
1.13 Inks Solvent and water base
1.14 Doctor blade groups: type and quantity With closed chamber
1.15 Washing of printing units Yes, automatic
1.16 Type of unwinder Automatic
1.17 Max. diameter on unwinder (mm) 1000
1.18 Winder type Automatic
1.19 Max. diameter on winder (mm) 1000
1.20 Heating Thermal oil batteries
1.21 Video camera Brand: BST
1.22 Availability To be agreed
1.23 Further information :
N°2 BST edge guides
N°10 Gama viscometers
N°10 pneumatic ink pumps
No. 1 drum pressure roller
N°8 sleeves for anilox
No. 16 sleeves for cliché holder
No. 2 Doctor blade spare parts
