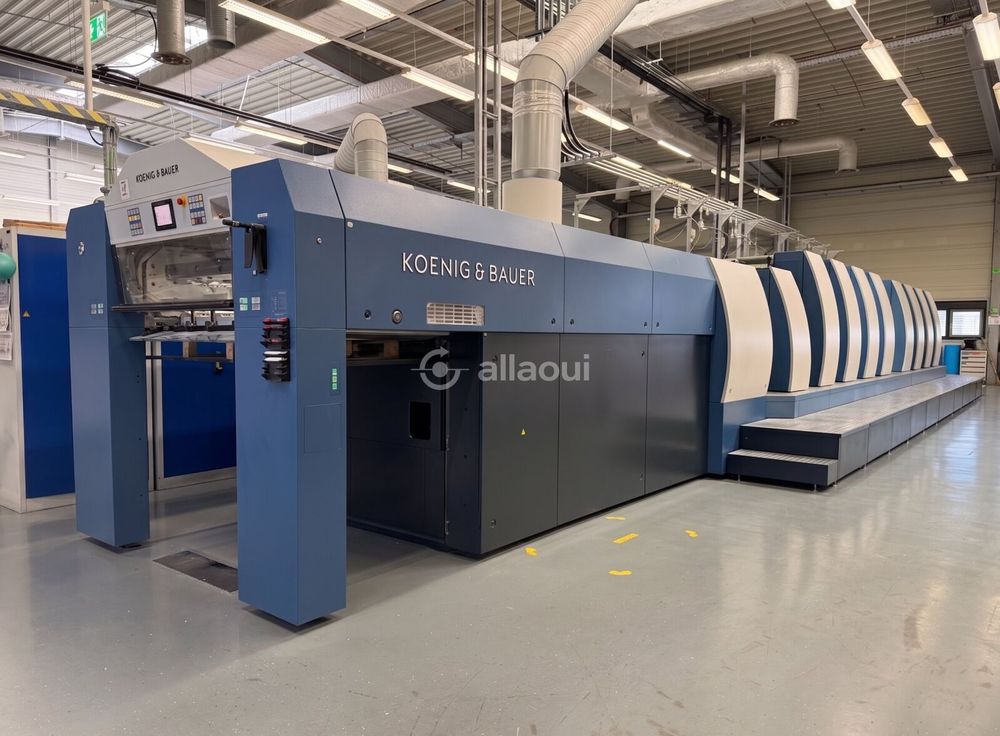

KBA RA 106-8+L SW4 SPC ALV2 740 × 1,060 mm

Equipment:
Machine Control:
ErgoTronic ColorControl
QualiTronic ColorControl incl. QualiTronic LiveView
QualiTronic ColorView
QualiTronic Small Measuring Strip Height
Wallscreen

Feeder:
SIS
Antistatic High-Performance

Printing Units :
8 printing units
1 coating unit
Perfecting: SW4 (4/4 or 8/0)
Camera System (perfecting)
DriveTronic SPC – Simultaneous Plate Change, fully automatic
DriveTronic Plate Ident
UV Preparation in printing units
Thin-Paper Speed Package
High-Speed Package – 18,000 sheets/h

Inking & Dampening:
Ink Temperature Control with Technotrans Beta.C
Alcosmart AZR
IPA Reduction with Technotrans Beta.F
Water Cooled
Ink Supply Preparation

Washing System:
CleanTronic Synchro, simultaneous washing

Coating Unit:
Chamber Doctor Blade
Anilox Roller 100 L/cm, 11 cm3/m2, 60°, hexagonal
Coating Supply and Cleaning System (HARRIS & BRUNO)

Delivery:
Delivery Extension ALV2 (2,400 mm)
VariDry IR/TL
Powder Extraction
EES – Emission Extraction System

Technical Details:
Parameter Value
Output up to 18,000 sheets/h
Max. sheet format 740 × 1,060 mm / 29.1" × 41.7"
Min. sheet format 340 × 480 mm / 13.4" × 18.9"
Min. sheet format (perfecting) 400 × 480 mm / 15.7" × 18.9"
Max. print format 730 × 1,050 mm / 28.7" × 41.3"
Max. print format (perfecting) 720 × 1,050 mm / 28.3" × 41.3"
Printing plate format 795 × 1,060 mm / 31.3" × 41.7"
Coating plate format 795 × 1,060 mm / 31.3" × 41.7"
Blanket format 860 × 1,070 mm / 33.9" × 42.1"
Substrate thickness (standard) 0.04 – 0.7 mm
Substrate thickness (perfecting) 0.04 – 0.6 mm
Gripper margin 10 mm
Pile height – feeder 1,250 mm
Pile height – delivery 1,200 mm
Year of manufacture 2019
Year of installation 2020
