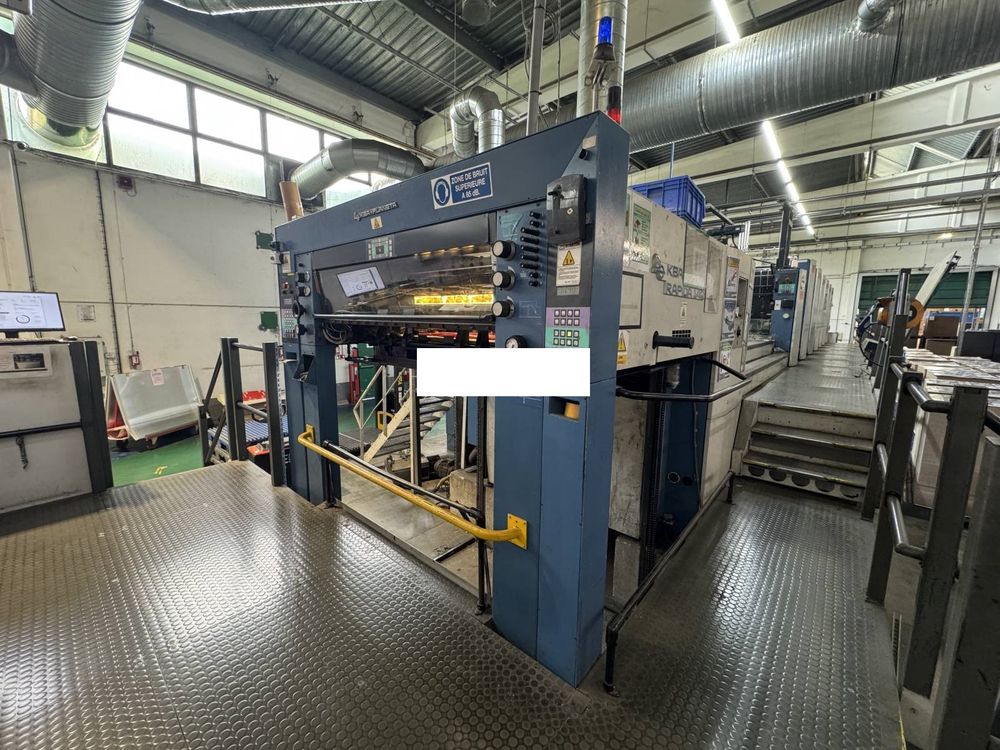

KBA RA 142-6+L 1,020 x 1,420 mm

Machine Control :
Control Unit: ErgoTronic

Feeder :
Feeder type: KBA high performance stream feeder
Non-Stop
Double sheet control
Anti static

Units:
Number of printing units: 6x
Number of coating units: 1x
Coating unit with chamber doctor blade
Plate changing: PWVA (Full Automatic Plate Change)
Dampening: KBA Varidamp
Washing device: All Automatic washers (blanket, rollers and impression cylinders)
Ink temperature control

Delivery:
Delivery type: extended High Pile delivery (2,600 mm)
Non-Stop
Dryer: IR Hot air

General:
Cardboard Package
Logistic System
Raised machine: Yes
Periphery
Cooling: Baldwin CombiLiner

Technical Details:
Max sheet size: 1,020 x 1,420 mm
Min sheet size: 600 x 720 mm
Max print size: 1,010 x 1,420 mm
Plate size: 1,145 x 1,430 mm
Thickness: 60 g/m² - 1,2 mm
Output: 14,000 sheets/hour
